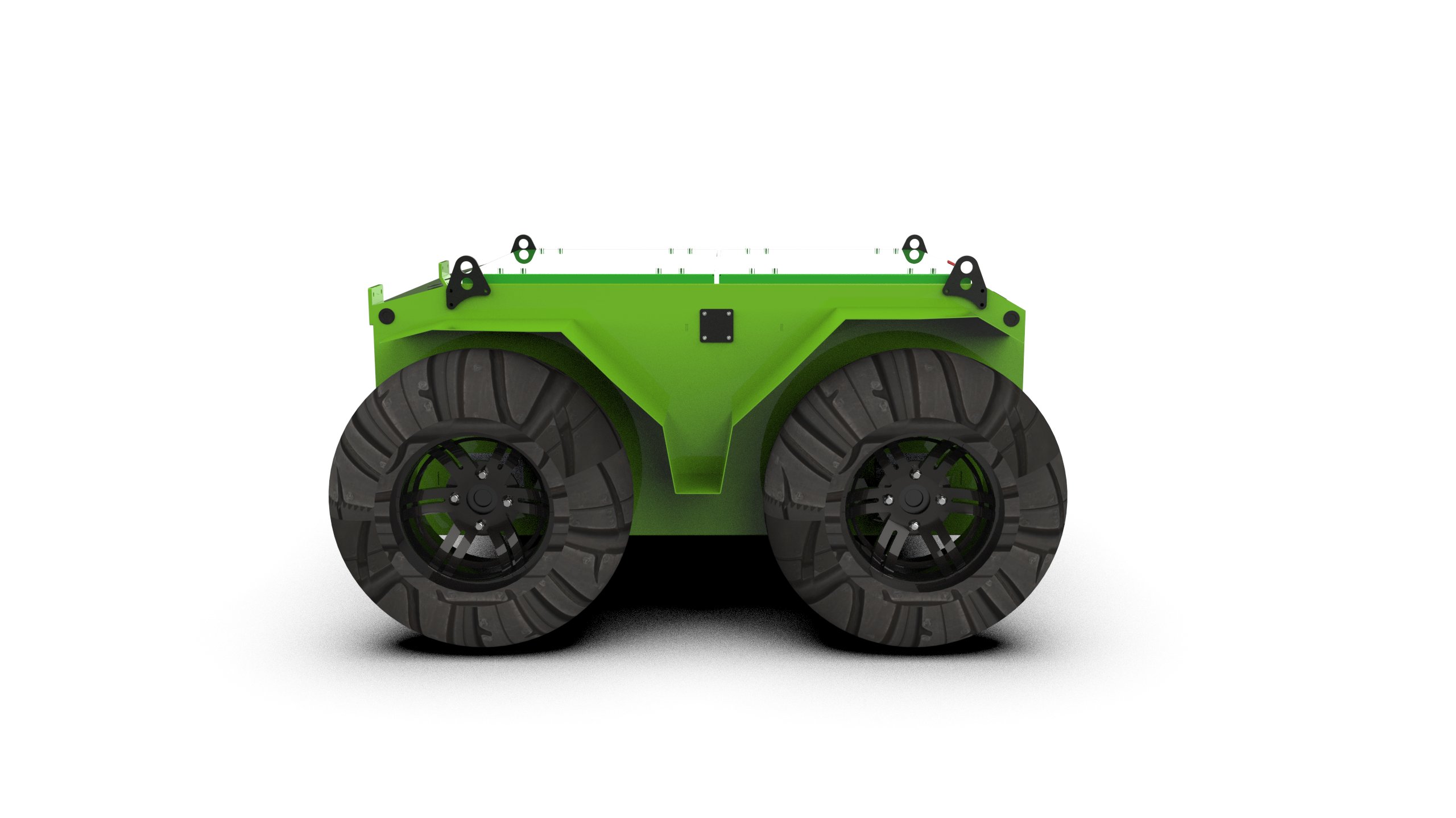

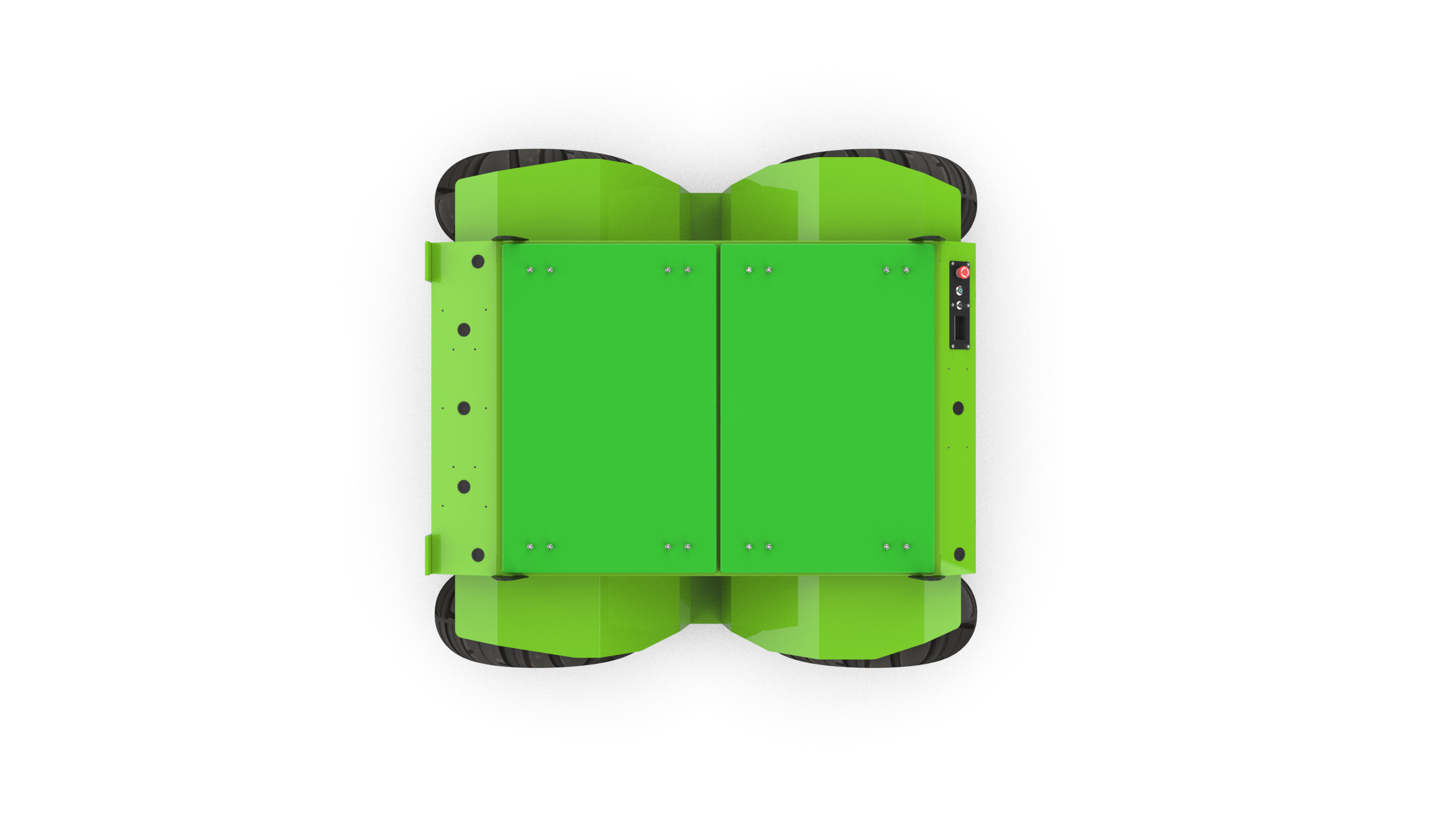

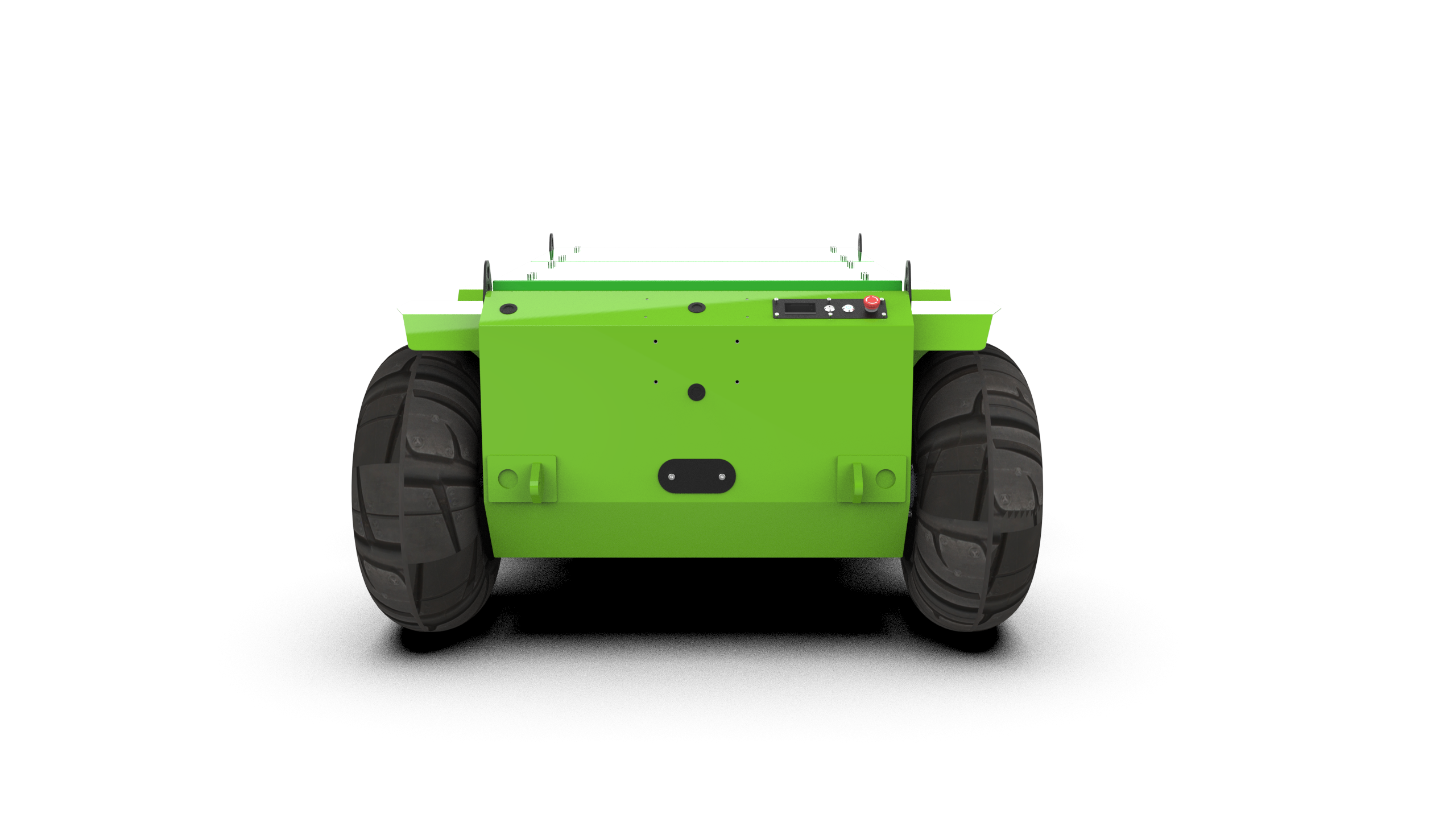

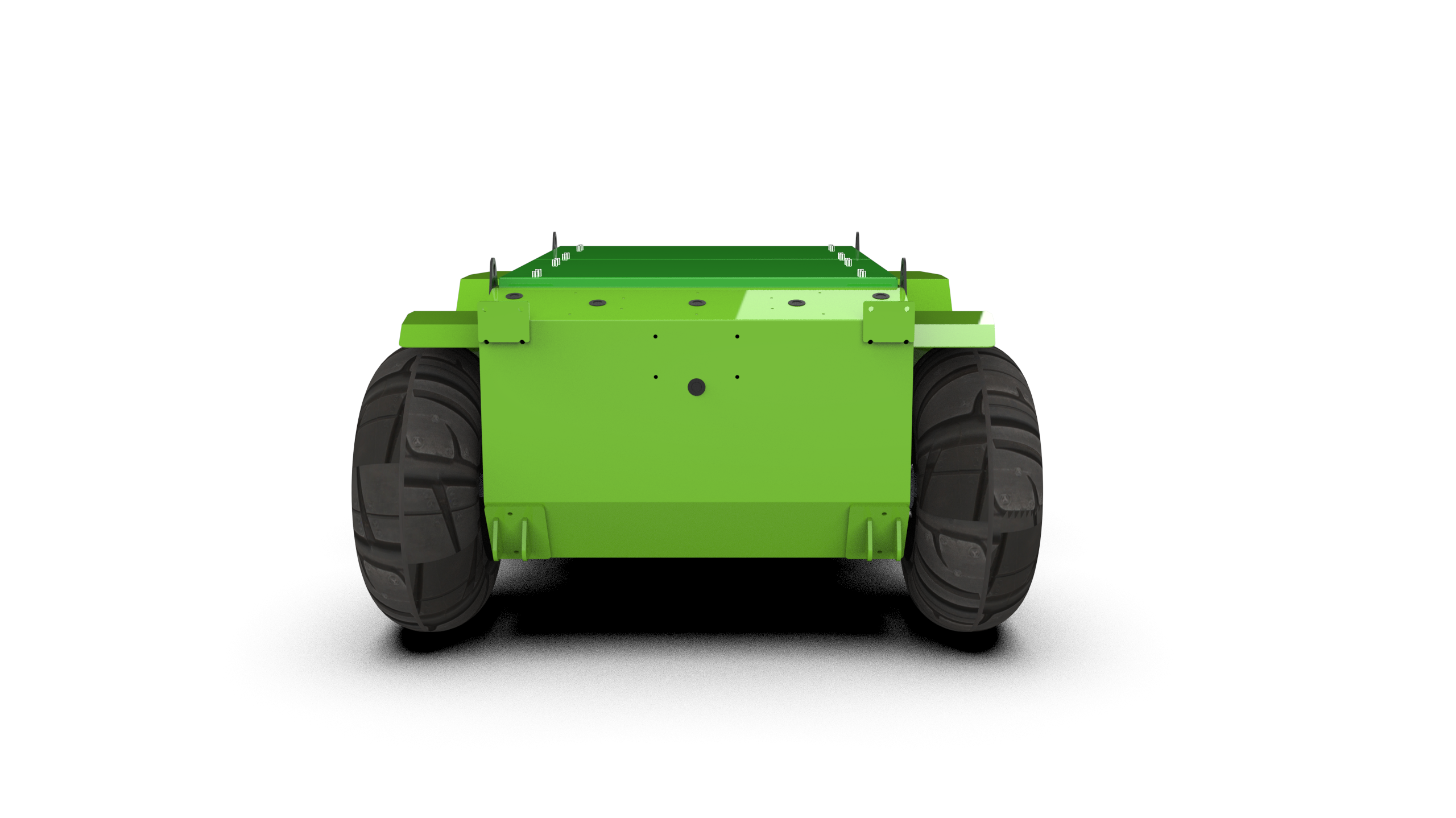

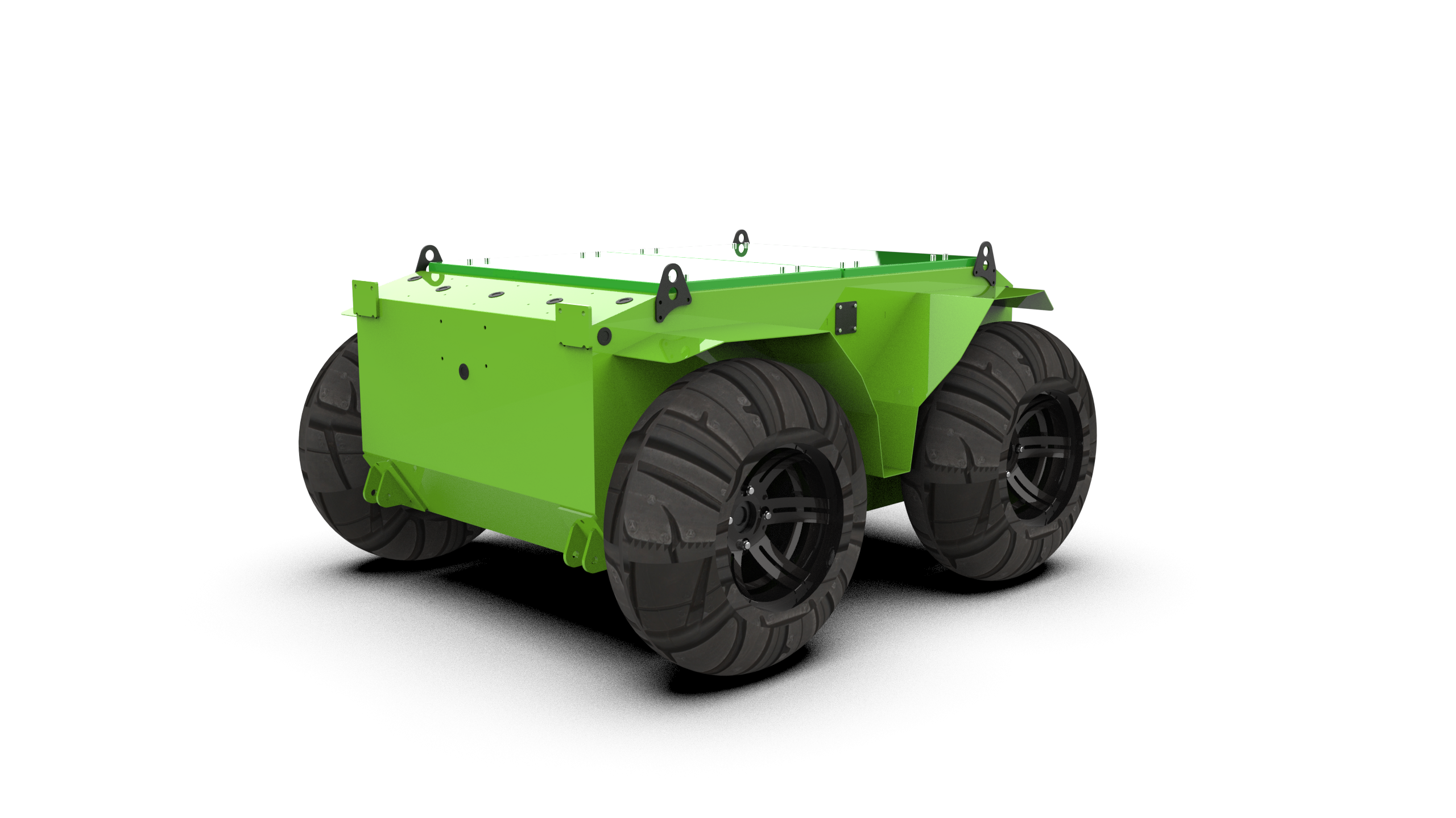

WK-23 Four-wheel drive differential steering robot chassis
WK-22 wheeled robot chassis, featuring customizable height configurations, adaptable to complex working conditions in various environments.
Inquiry Now

The WK-23 four-wheel drive differential steering robot chassis features highly customizable configurations, capable of adapting to the most complex working conditions across multiple scenarios. It is equipped with 4 sets of shock absorbers and an independent suspension structure, significantly enhancing overall vehicle stability and load capacity.

Designed with differential steering, it offers a smaller turning radius and stronger maneuverability. Fitted with explosion-proof tires, it supports lightweight design while enabling rapid field maintenance, making it an ideal mobile platform for outdoor exploration, emergency rescue, security patrols, and other complex operational scenarios.

WK-23 Four-wheel drive differential steering robot chassis

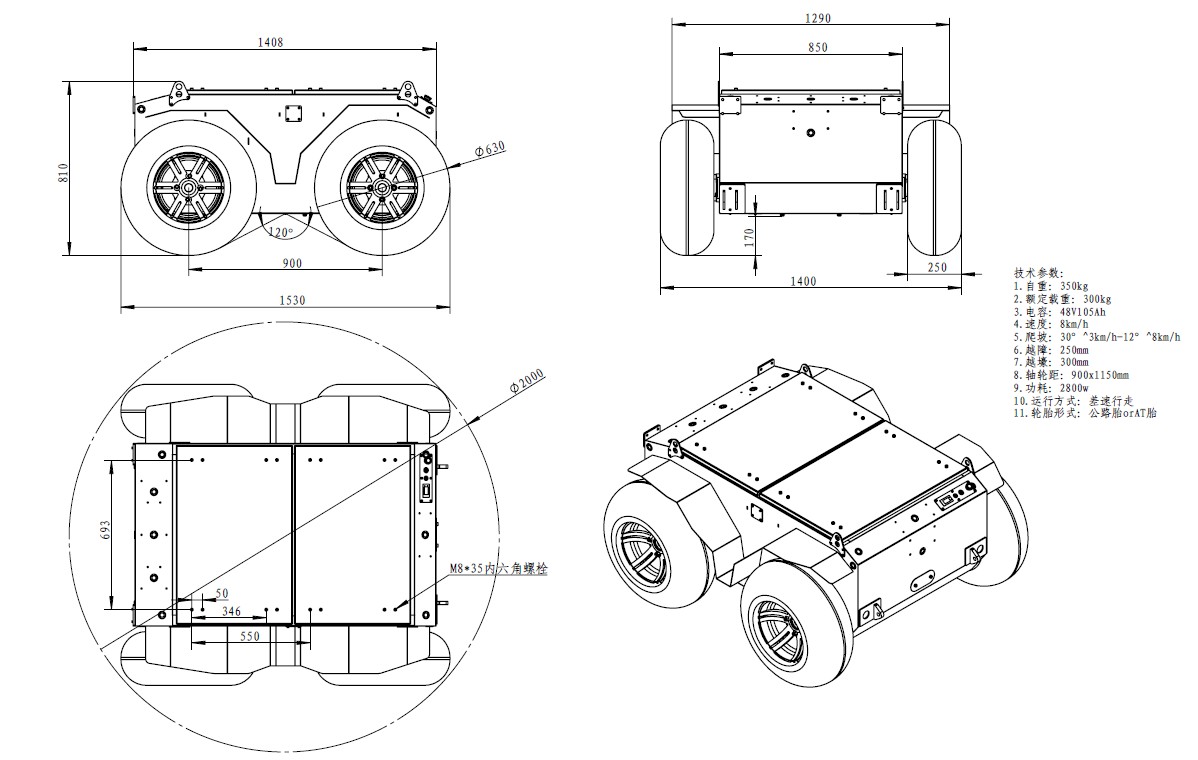

Indicator ITEMParameter DATAIndicator ITEMParameter DATA
Design dimensions1530*1400*693mmChassis height170MM
Base self-weight350KGObstacle clearance height250mm
Main body materialCarbon steel/alloy steel plate/aluminumSurface TreatmentSpray paint/spray plastic
Wheel type
Explosion-proof solid rubber tire with airless designDesign load capacity300KG
Shock absorption systemFront dual A-arm independent suspension, rear multi-link integral bridgeTurning radius2.5m
Drive motor48V1650W brushless DC motorMaximum Climbing30°
Rated Torque90/180N·mWheel typeHighway tire or AT tire
Battery capacity48V100AhPower consumption2800w
Protection level
IP54Wheelbase900*1500mm
Operating Speed8km/h
