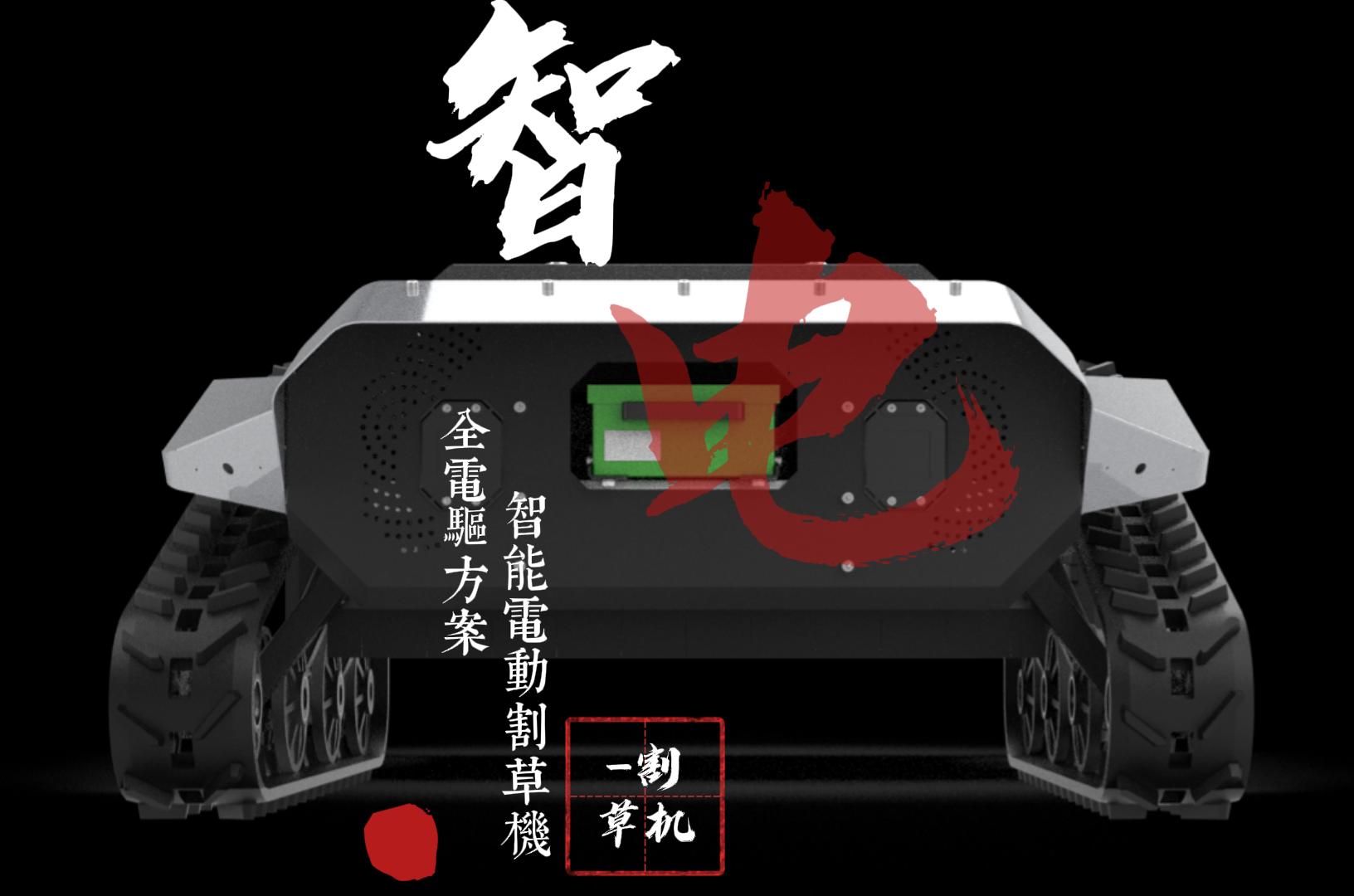

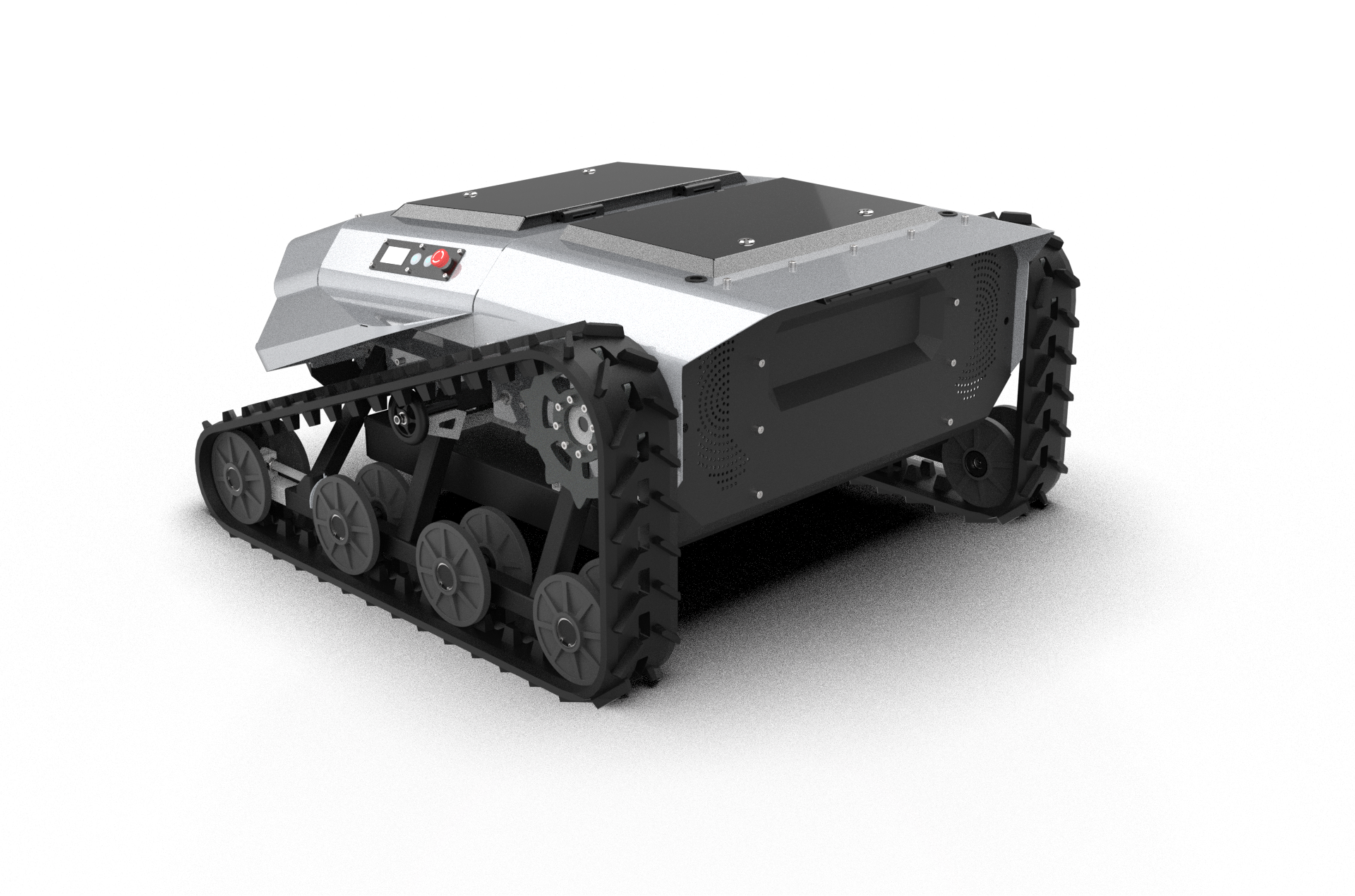

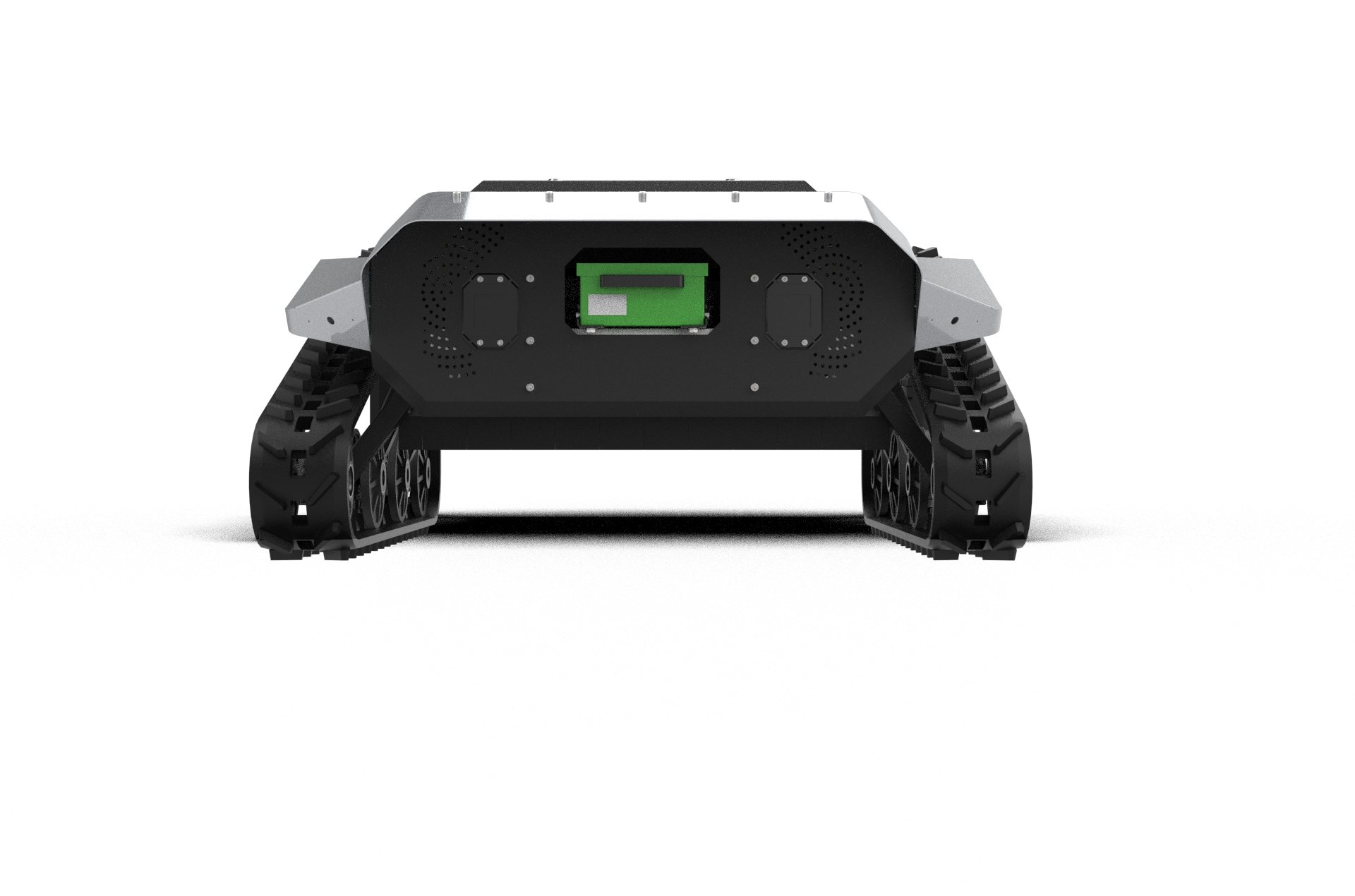

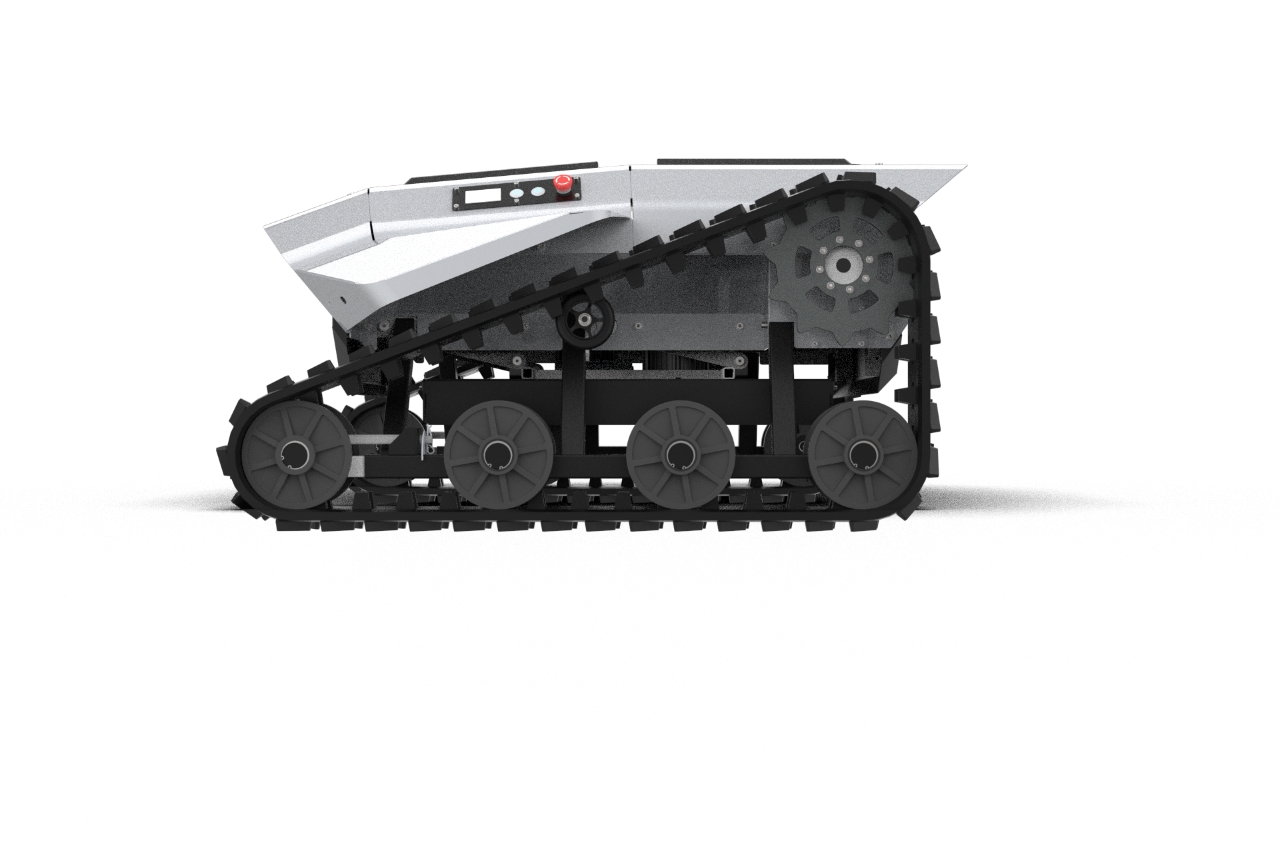

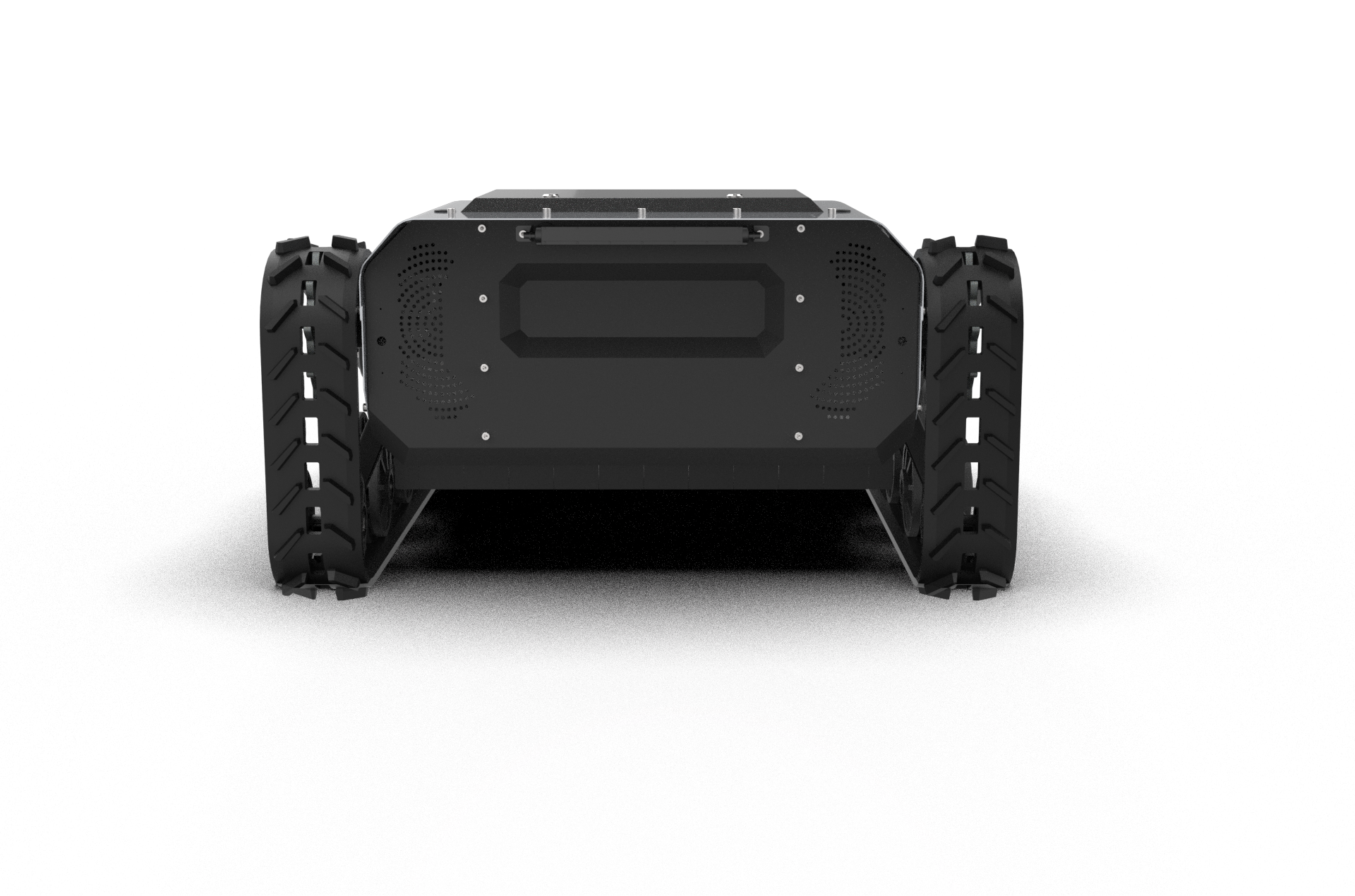

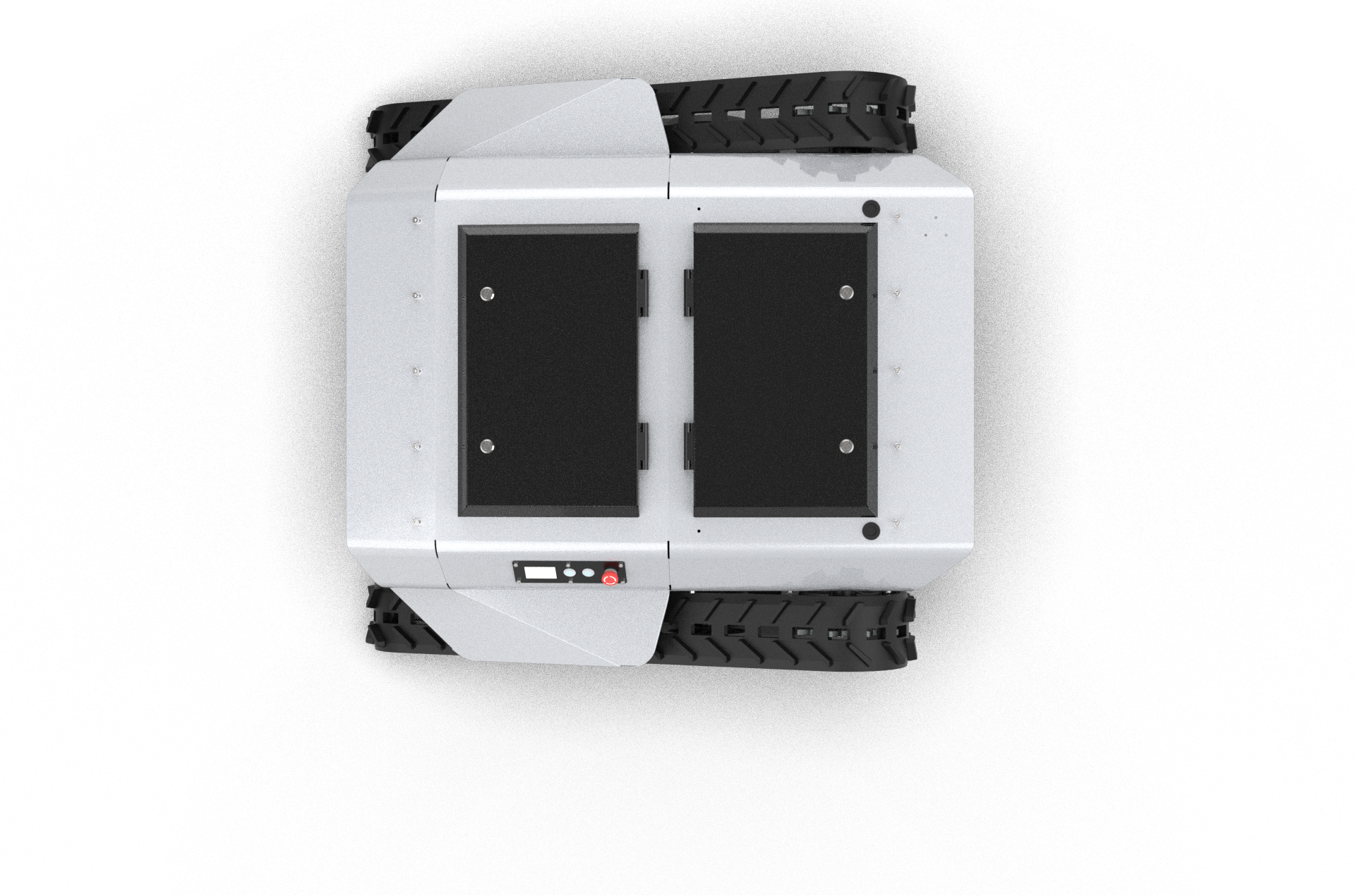

Smart Lawn Mower (Crawler Type)

1. Product technical performance parameters

1. Overall machine parameters

1.1 Net weight of the whole machine : ≤350 kg ;

1.2 Product size : ≤ ( length × width × height ) 1 400 mm × 1 200 mm × 680 mm

1.3▲Drive type : pure electric;

1.4▲Control method : 2.4G remote control/autonomous navigation RTK

1.5▲ Drive motor : 2KW×2 ;

1.6 Surface treatment : spray painting /plastic spraying

1.7 Protection level : IP 65;

1.8 Running speed : 0 ~3.6 km/h ( operation ) /0~5.4km/h (transition)

1.9 Climbing angle : 30 ° ;

1.10 Battery type : lithium iron phosphate

1.11 Battery life : 3 ~ 4 hours depending on the working scene, land reclamation, lawn mowing, orchard maintenance

1.12 Charging time : 2 ~ 3h ( supports battery replacement )

1.13 Working capacitor : 48V 80Ah

2. Grass cutting function

2.1▲ Cutting width : 800mm

2.2▲Heading table lifting range: 10~190mm

2.3 Cutter speed : 3000 rpm

2.4 Cutter power: 1500W×2

2. Product configuration

1. 1 robot

2. 1 charger

3. 1 set of tool kit

4. 1 set of wearing parts

5. 1 copy of product manual

6. This project comes with 1 set of base stations and services , additional ones need to be purchased.

7. This project comes with 1 set of dotting device , additional ones need to be purchased.

3. Supply cycle

1.5 months after signing the contract
