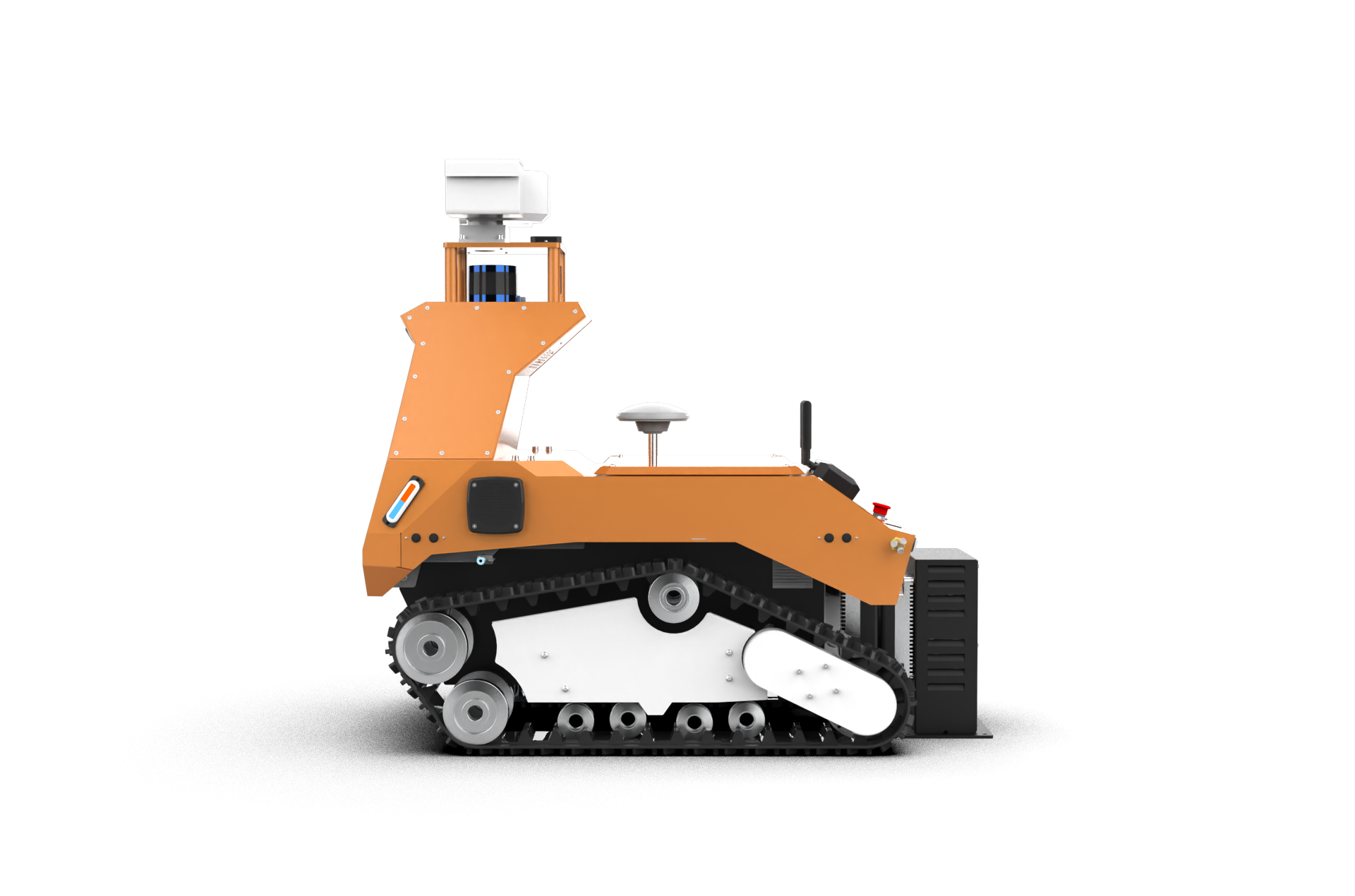

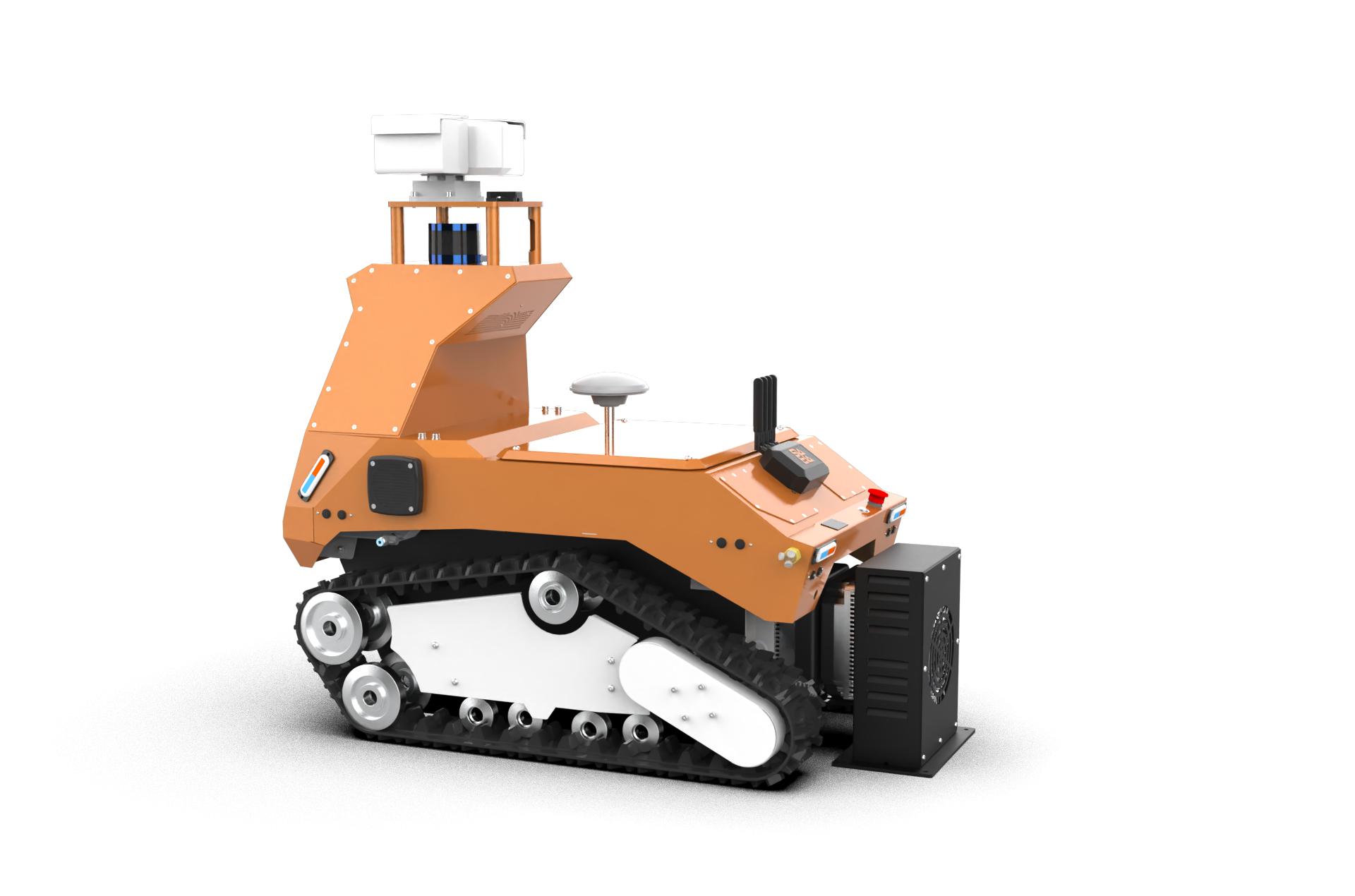

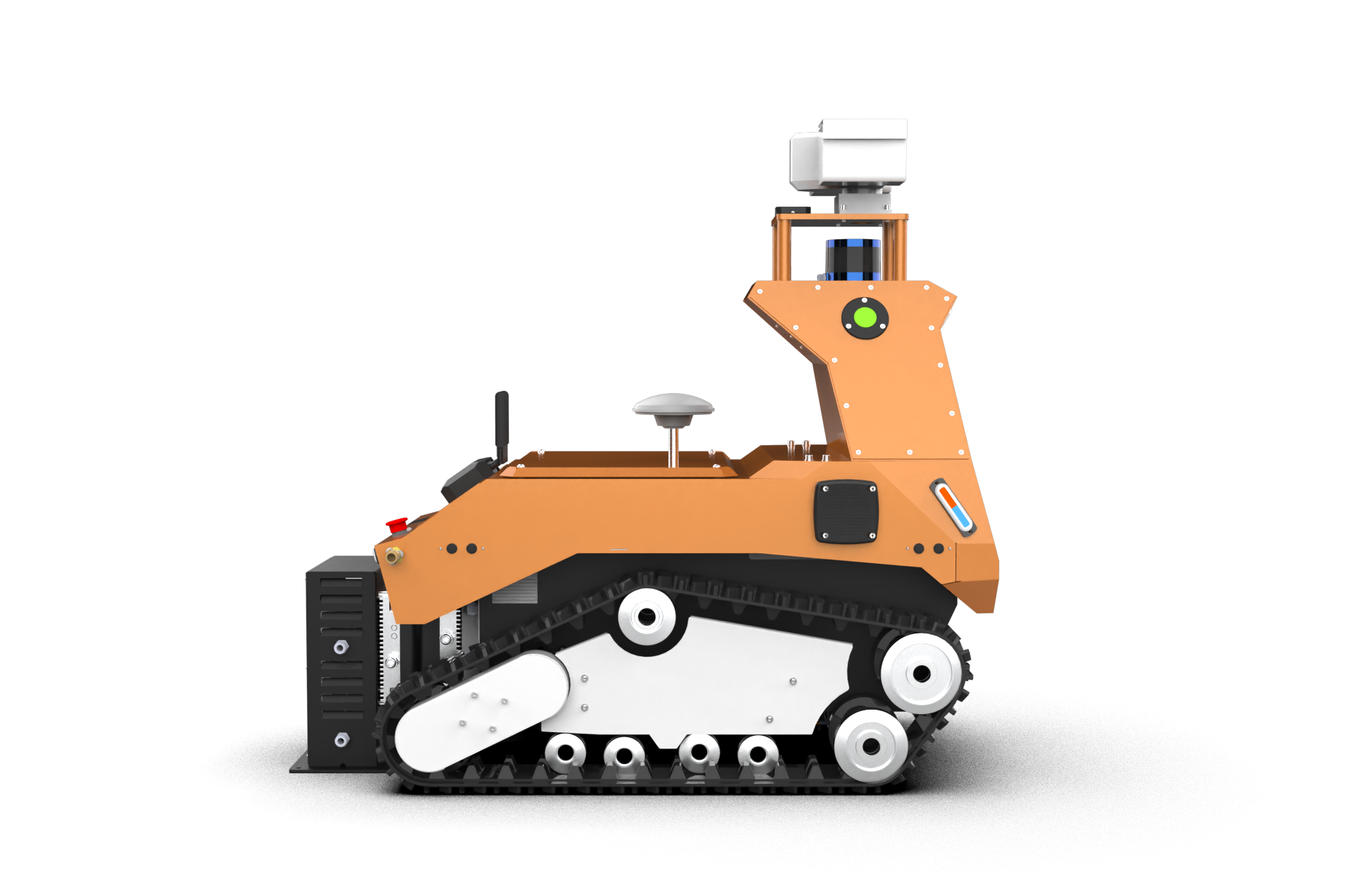

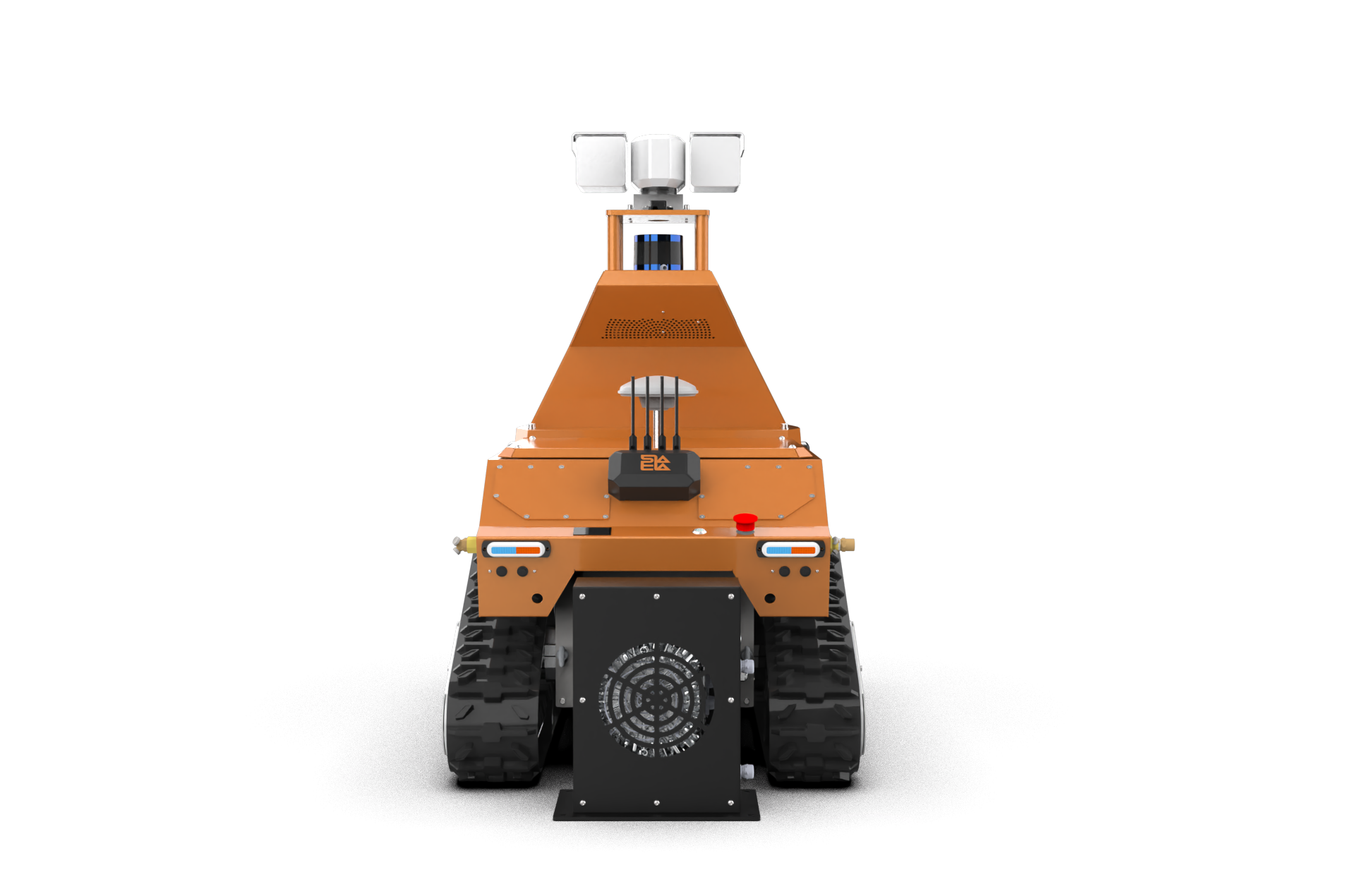

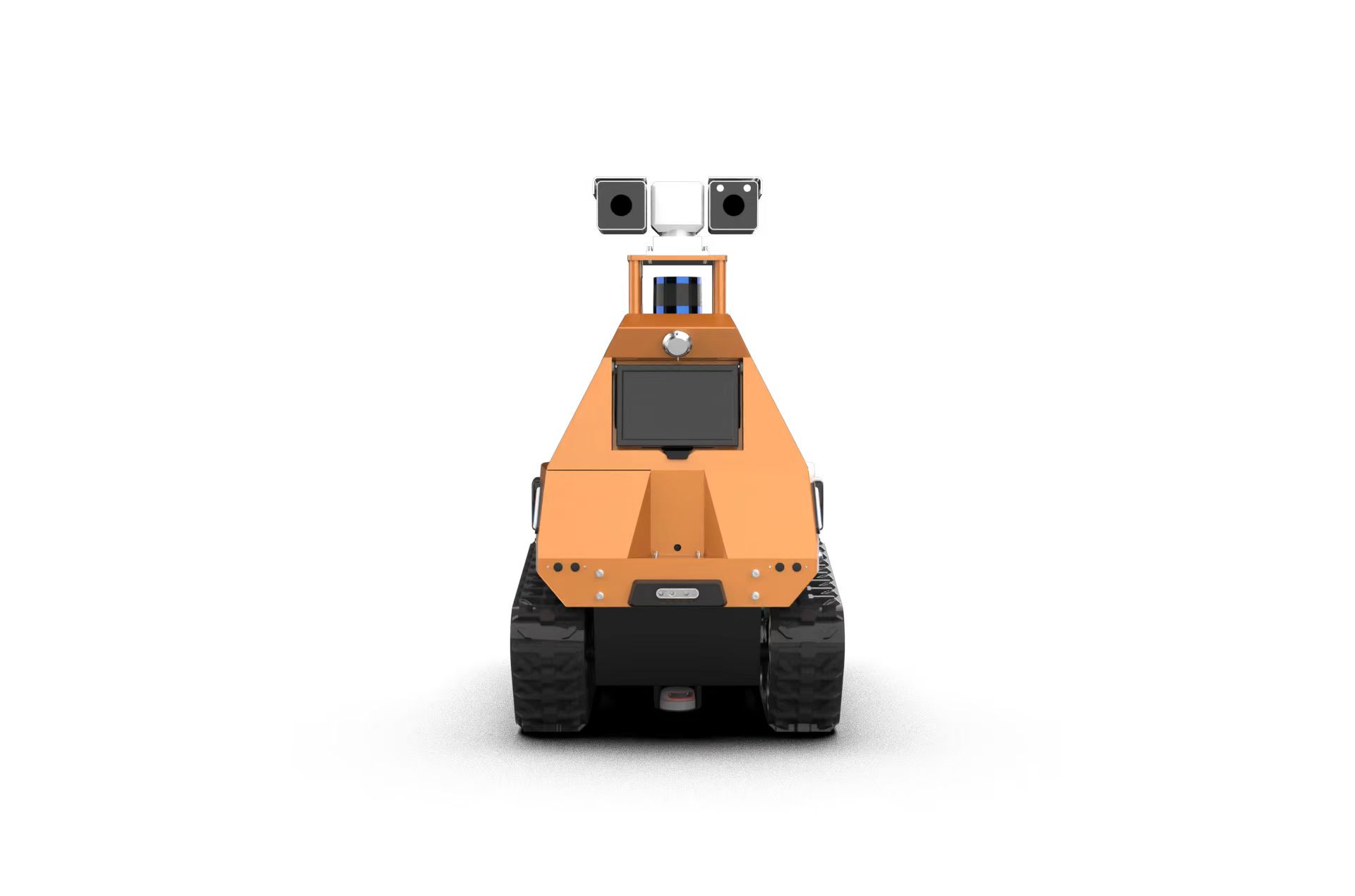

WK-Patrol Robot
The WK inspection robot is a high-performance track-based intelligent inspection robot specifically designed for complex industrial environments, integrating advanced visual recognition, environmental sensing, and autonomous navigation technologies. Its durable crawler chassis and modular sensor configuration enable efficient completion of automated inspection tasks in high-risk scenarios such as power plants, petrochemical facilities, mines, and tunnels, significantly enhancing operational safety and maintenance efficiency.
Inquiry Now

Core Highlights

✅ All-terrain Adaptability


Equipped with a high-strength crawler drive system, it can easily traverse mud, gravel, steps, and narrow passages, making it suitable for complex and variable industrial sites, ensuring stable operation around the clock.


✅ Intelligent Dual-Vision System


Features high-definition dual cameras on top, supporting 360° rotation for observation, with infrared night vision and thermal imaging capabilities, enabling precise identification and real-time alerts for equipment temperature anomalies, leaks, cracks, and other hidden hazards.


✅ Multi-Functional Sensor Integration Platform


The body comes with multiple expansion interfaces, allowing flexible integration of gas detectors, sound analyzers, LiDAR, and other sensors to meet customized monitoring needs across different industries.


✅ Autonomous Navigation and Path Planning


Built-in SLAM algorithm and GPS-assisted positioning system, supporting automatic charging, path memory, and dynamic obstacle avoidance, enabling unmanned intelligent inspection workflows.


✅ Explosion-Proof and Protective Design


The entire unit adopts an IP64-rated waterproof and dustproof structure, with some models certified for explosion-proof use (Ex d IIB T4), ensuring safe operation in high-temperature, high-humidity, and flammable/explosive environments.


SpecificationsParameter DATAIndicatorITEMParameterDATA
Design dimensions1400*900*520mmInternal Dimensions1100*380*280mm
Base self-weight275KGOperating Speed5.4km/H
Track MaterialPremium rubber embedded with Kevlar fibersChassis height120mm
Main body materialStainless Steel 304/Alloy Steel Plate/Galvanized Pipe/AluminumProtection LevelIP64
Shock absorption systemLeft and right independent *6 hydraulic shock absorbersSurface TreatmentBlack spray paint (matte)
Rated Power2000W*2Design load capacity250KG
Motor Selection48V DC brushless motor/high-precision servo motorRated Torque60N·M
Reduction ratio
1:15Belt Width150mm
Maximum Obstacle180mmMaximum Climbing≤32°
Maximum Crossing400mmMaximum Load Capacity250KG
