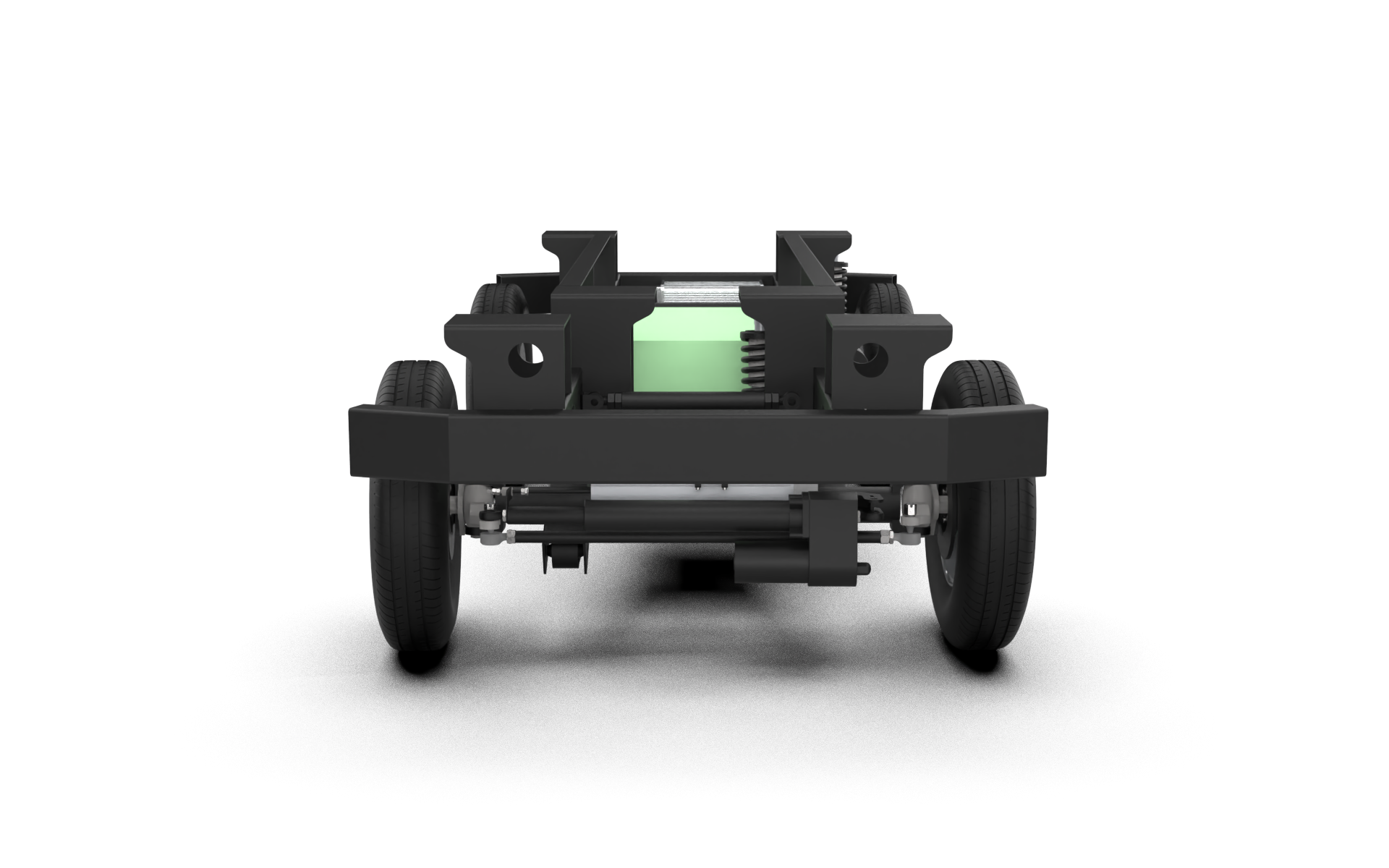

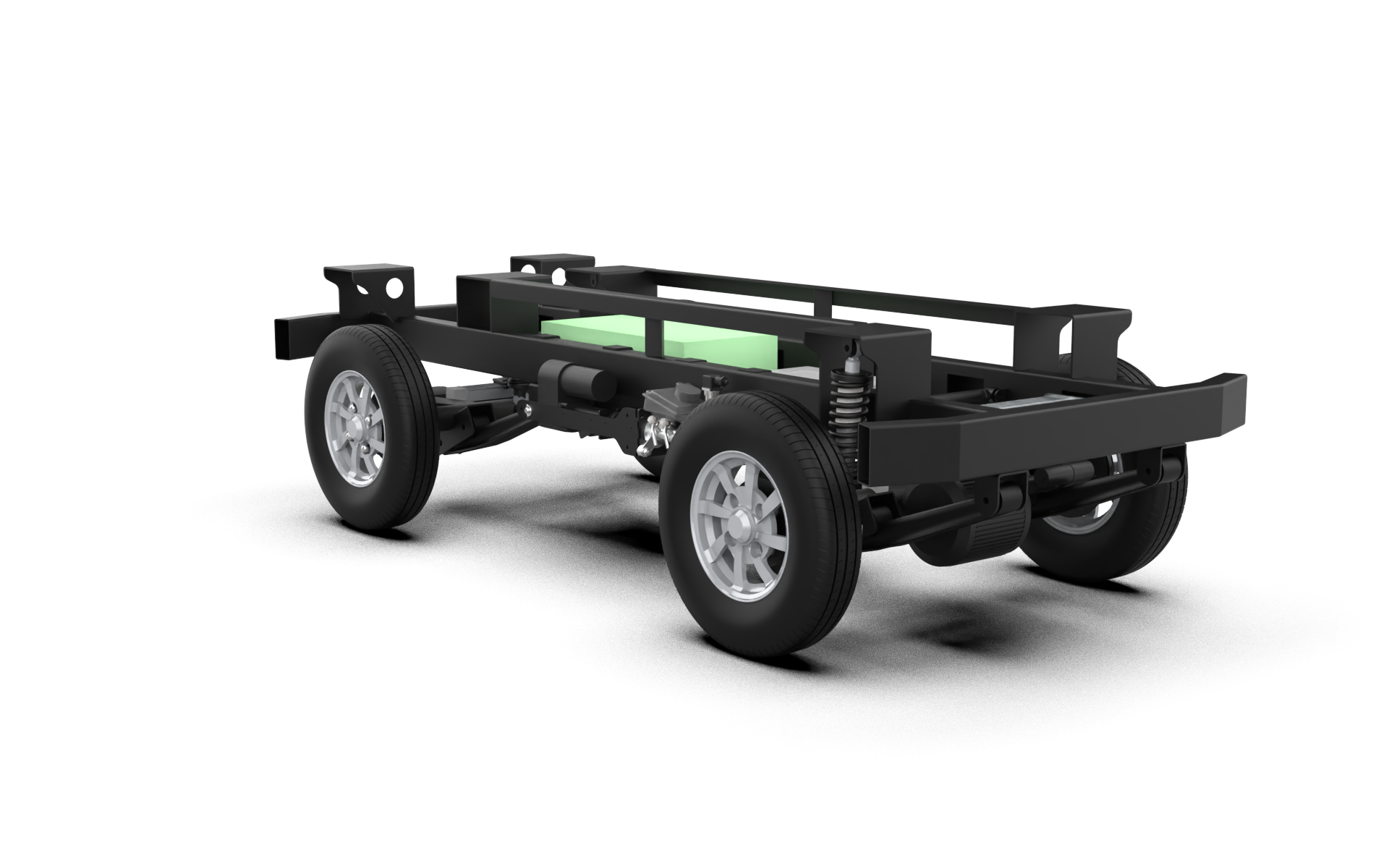

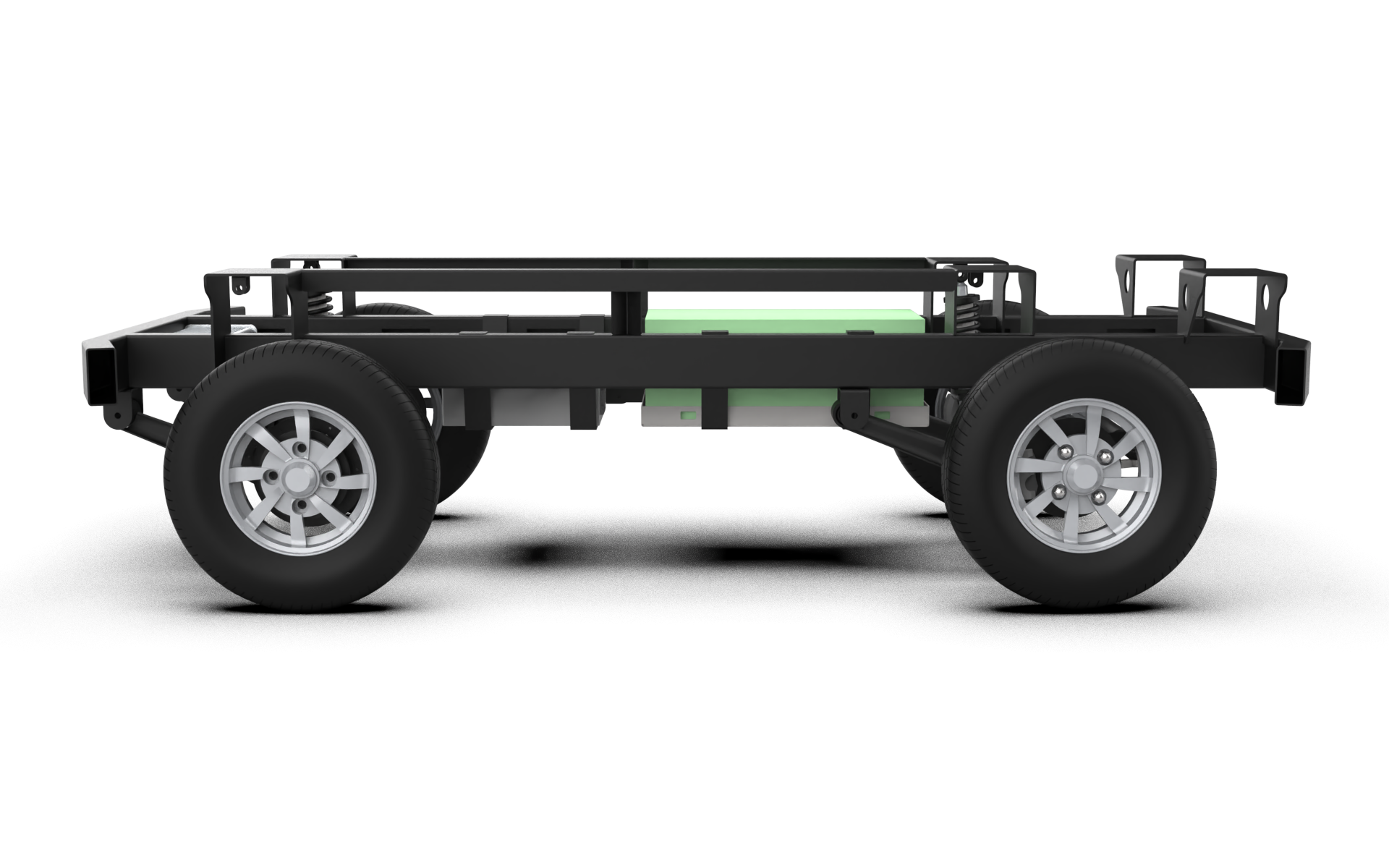

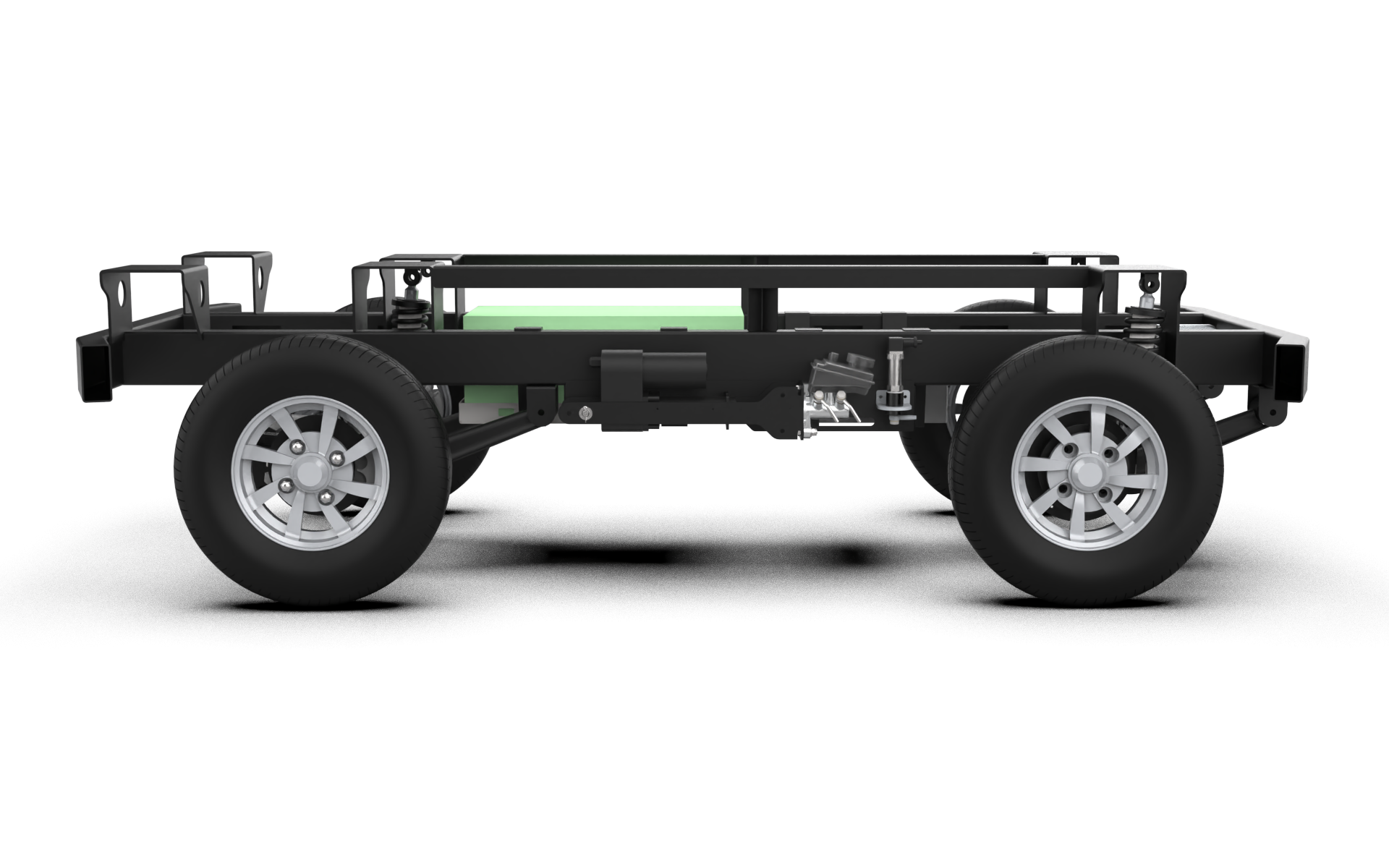

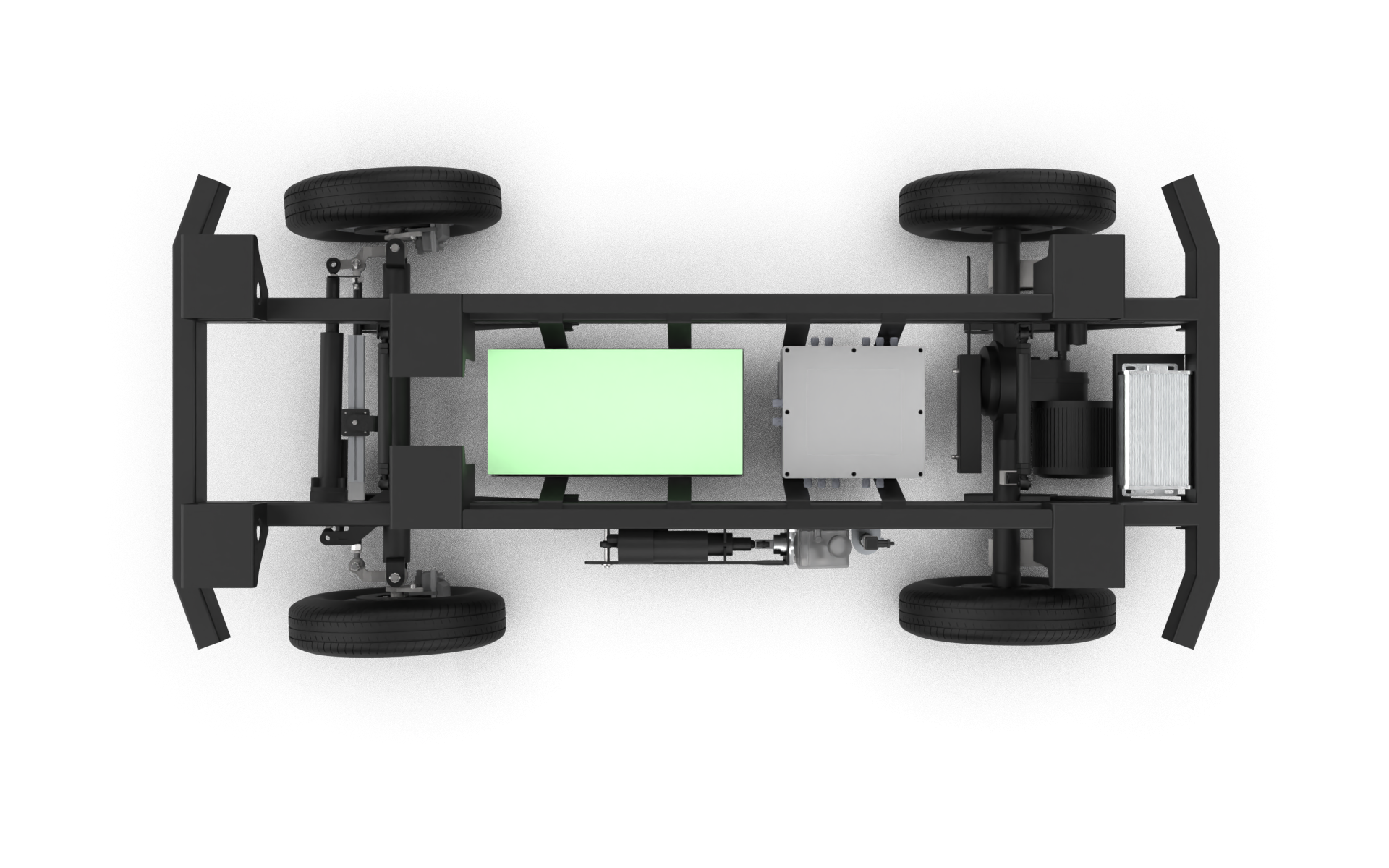

WK-25 Ackerman Steering Wheel Shock Absorption Robot Chassis
The WK-25 features a rear-wheel differential drive and front-wheel Ackerman steering layout. Its powertrain uses an integrated differential rear axle, and its front suspension employs a unique double A-arm structure, making the chassis more adaptable to road conditions and more suitable for high-speed driving.
Inquiry Now



Specification ITEMParameter DATASpecification ITEMParameter DATA

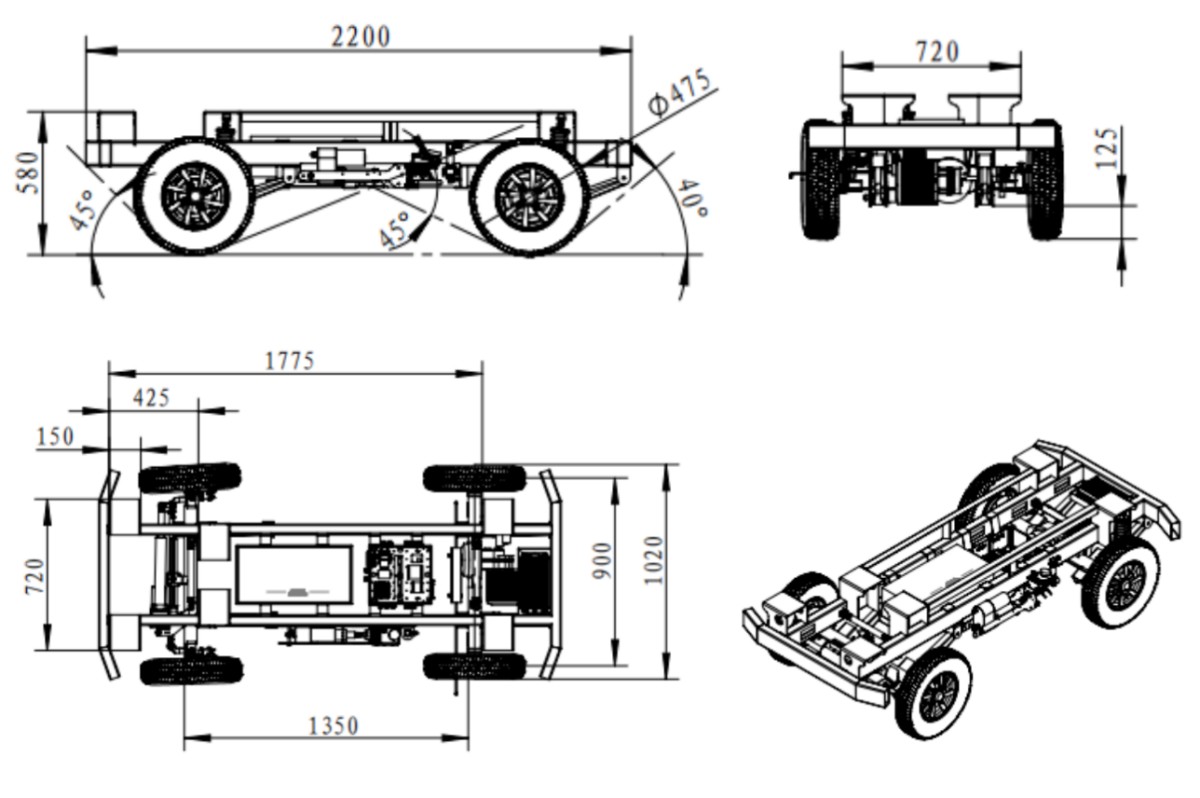

Design dimensions2200*1020*580mmChassis height125MM
Base self-weight200KGObstacle clearance height80mm
Tire typeExplosion-proof solid rubber tire with airless designSurface TreatmentSpray painting/powder coating
Main body materialCarbon steel / Alloy steel plate / AluminumDesign load capacity300KG
Shock absorption systemFront double A-arm independent suspension, rear multi-link solid axleMaximum Climbing15°
Drive motor48V 1650W DC brushless motorTurning radius2.5m
Rated Torque90/180 N·m

Battery capacity48v100Ah

Protection LevelIP54

Operating Speed5.7km/h
