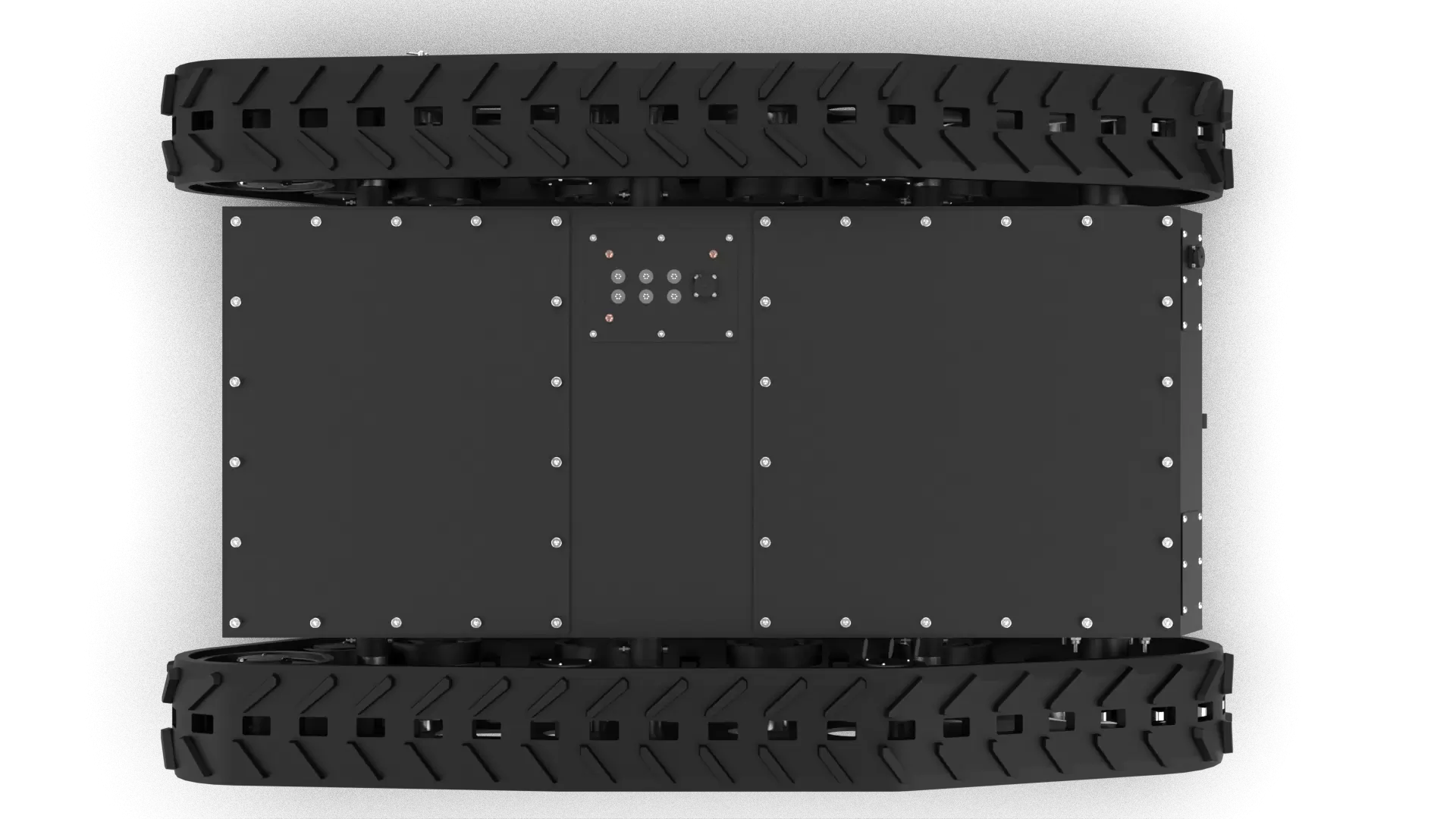

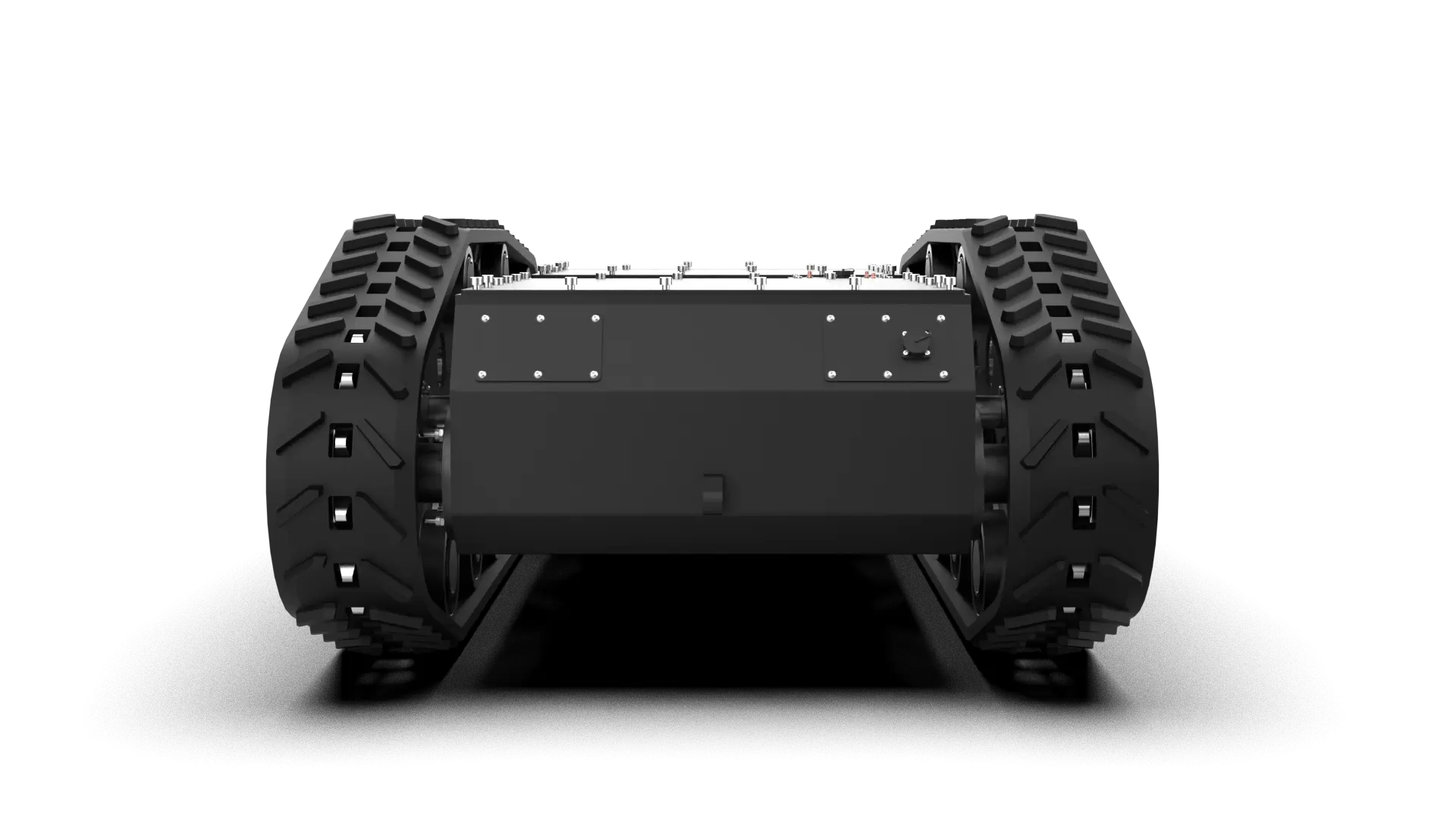

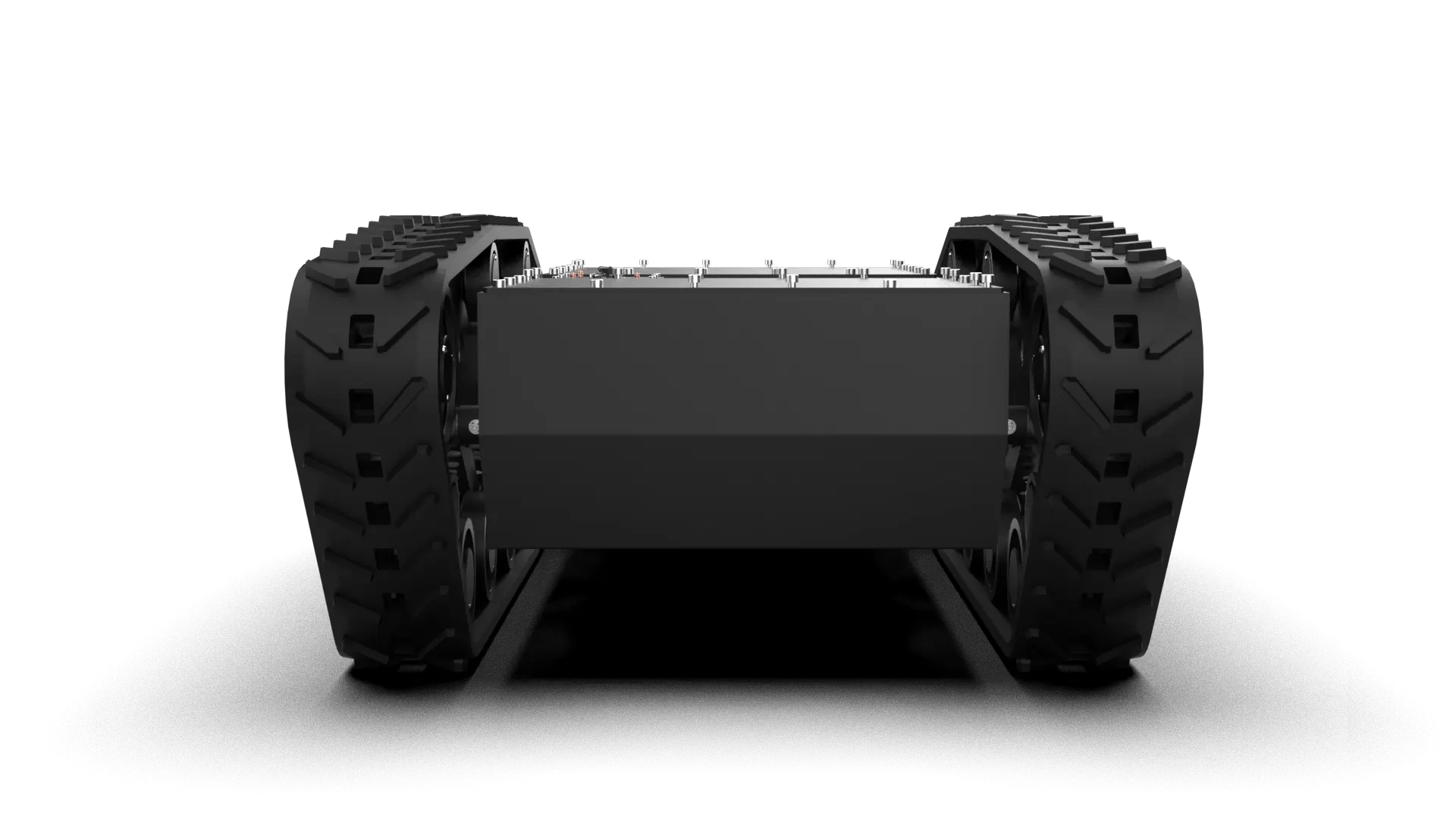

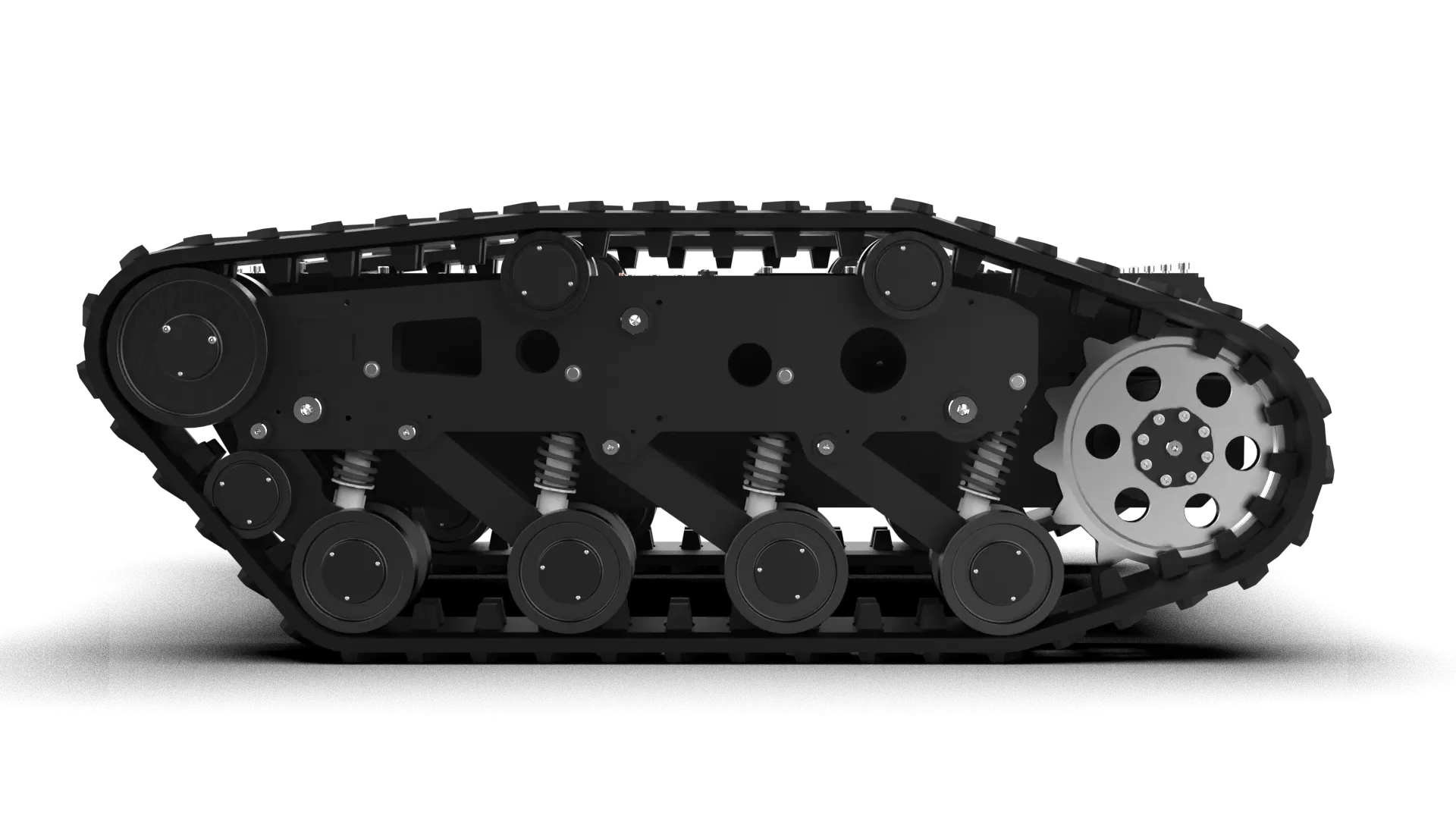

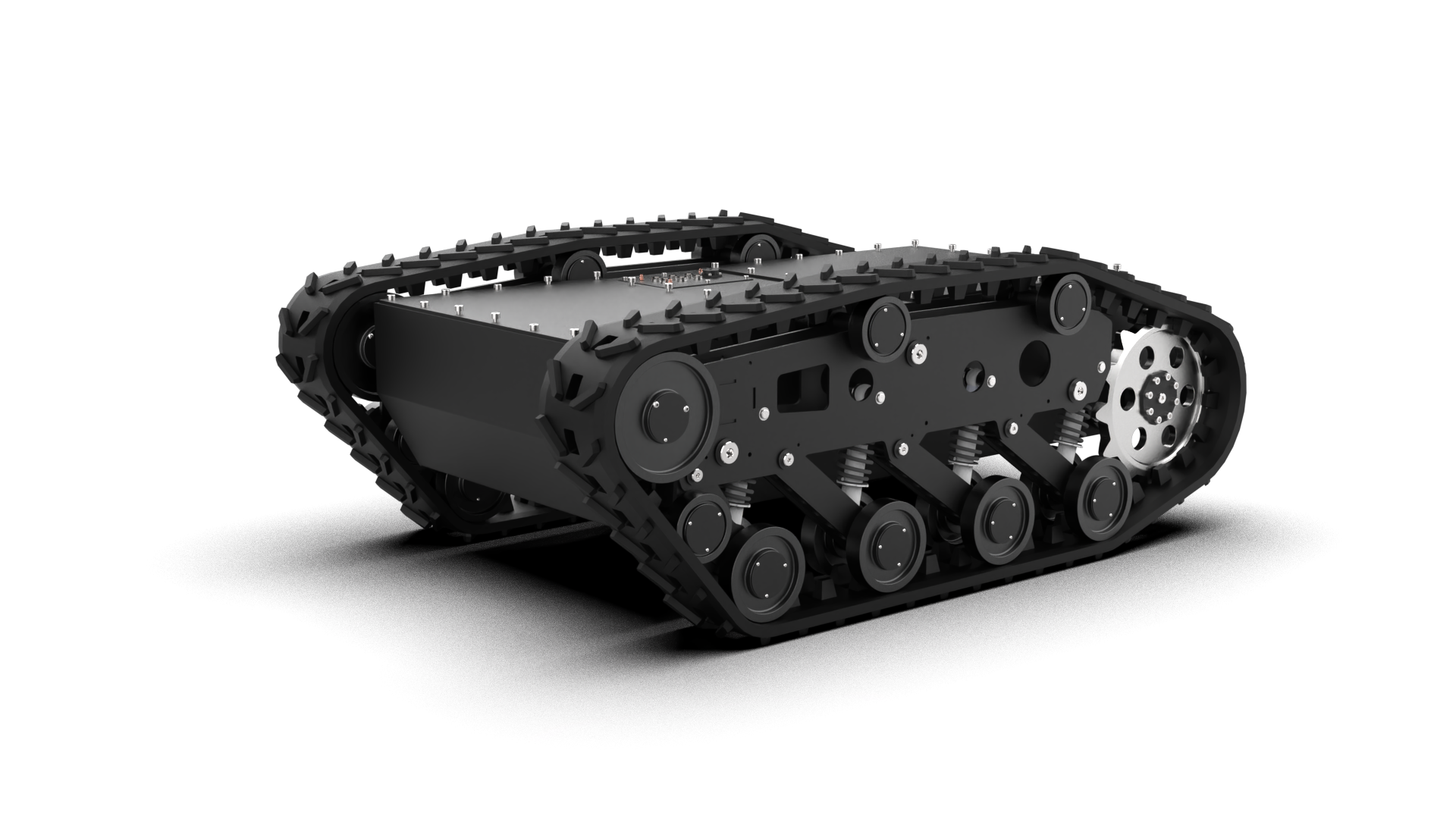

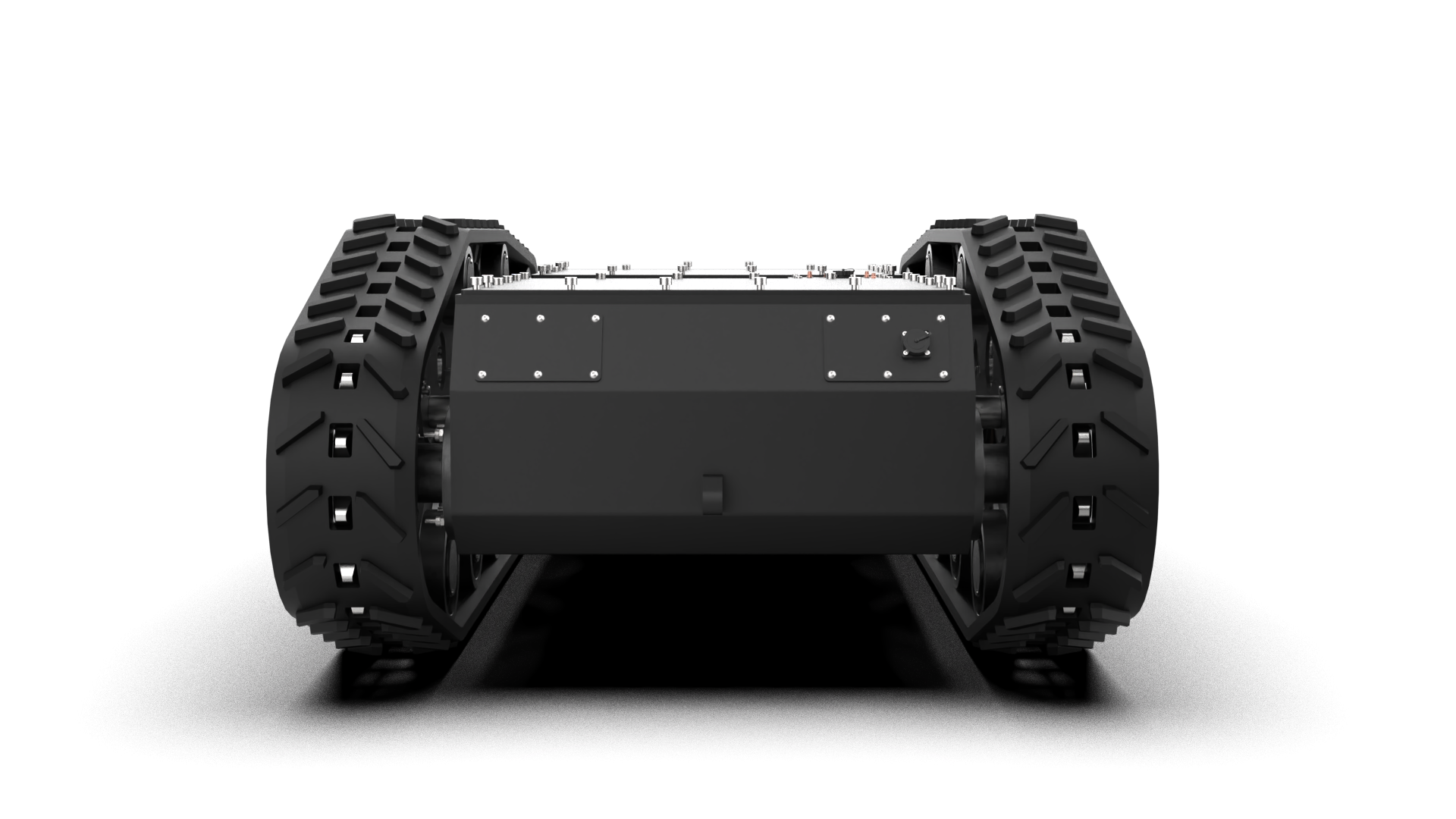

WK-13 Medium Track Chassis
WK-1305 eliminates safety hazards and ensures life safety. The explosion-proof robot chassis is suitable for inspection and firefighting operations with explosion-proof requirements. The whole vehicle is treated with explosion-proof technology, the whole precision CNC aluminum alloy swing arm, optional water cooling system, and equipped with standard explosion-proof connectors to help you quickly build functional products.
Inquiry Now





ITEM Parameter DATA ITEM Parameter DATA

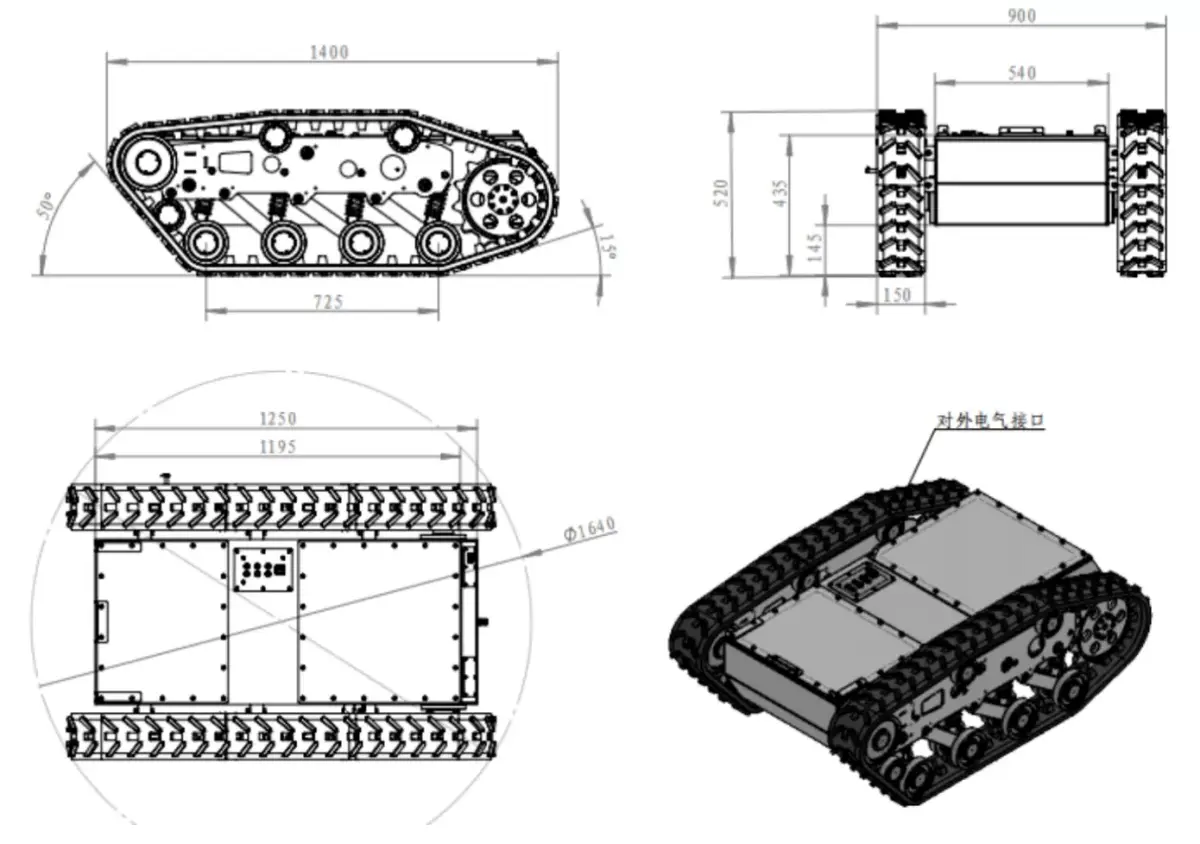

Design size 1400*900*520mm Inner compartment size 1000*380*280mm
Chassis weight 275KG Running speed 5.4km/H
Track material High-quality rubber with Kevlar fiber embedded Chassis height 120mm
Main material Stainless steel 304/ Alloy steel plate/ Galvanized pipe/ Aluminum Protection level IP64
Shock Absorption System Left and right independent*6 hydraulic damping shock absorbers Surface treatment Black spray (matte)
Rated power 2000W*2 Design load 250KG
Motor selection 48V Brushless DC Motor/High Precision Servo Motor Rated torque 60N ·M
Reduction ratio 1:15 bandwidth 150mm
Maximum obstacle 180mm Maximum climbing ≤ 32°
Maximum span 400mm Maximum load 250KG
