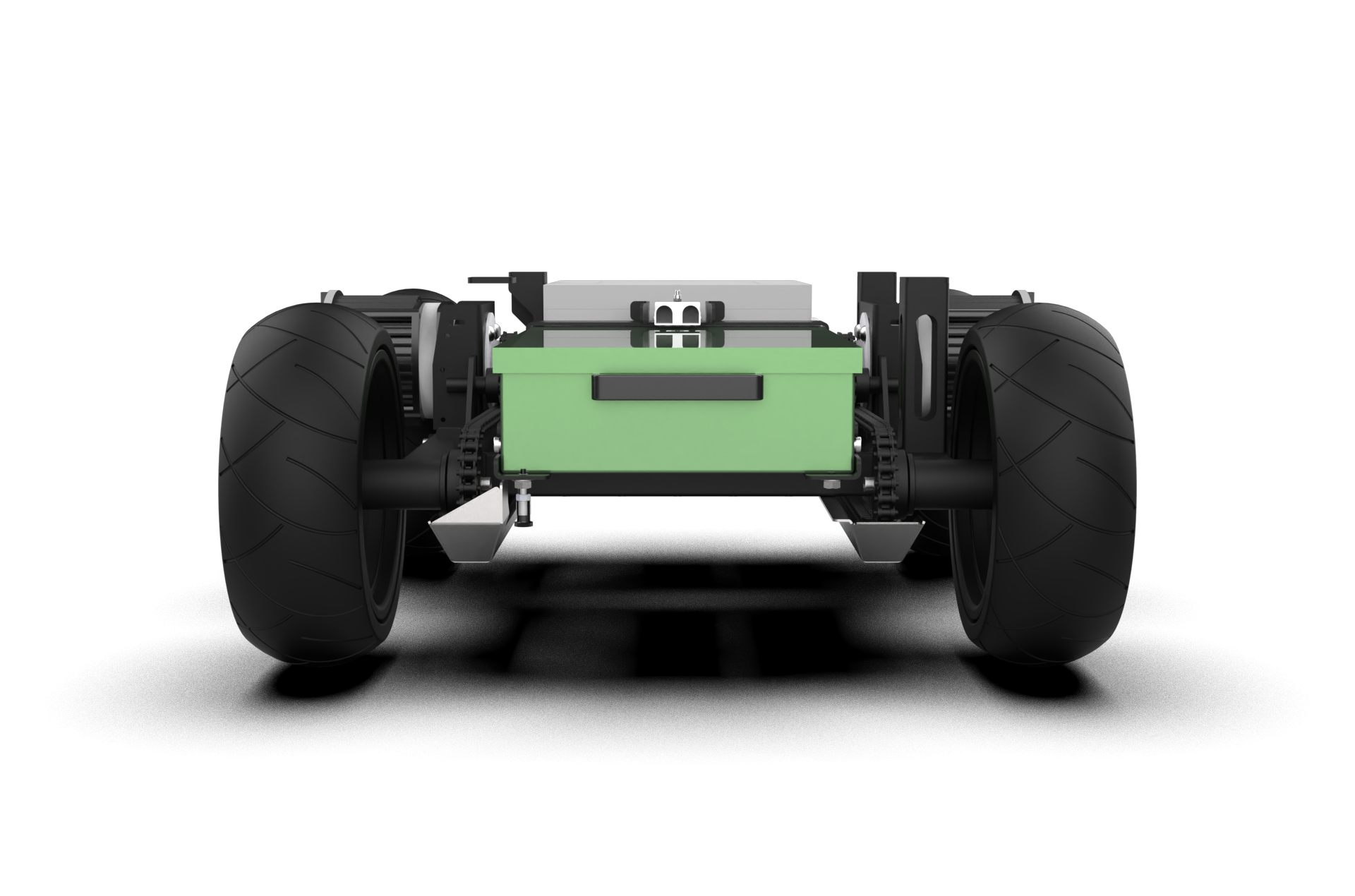

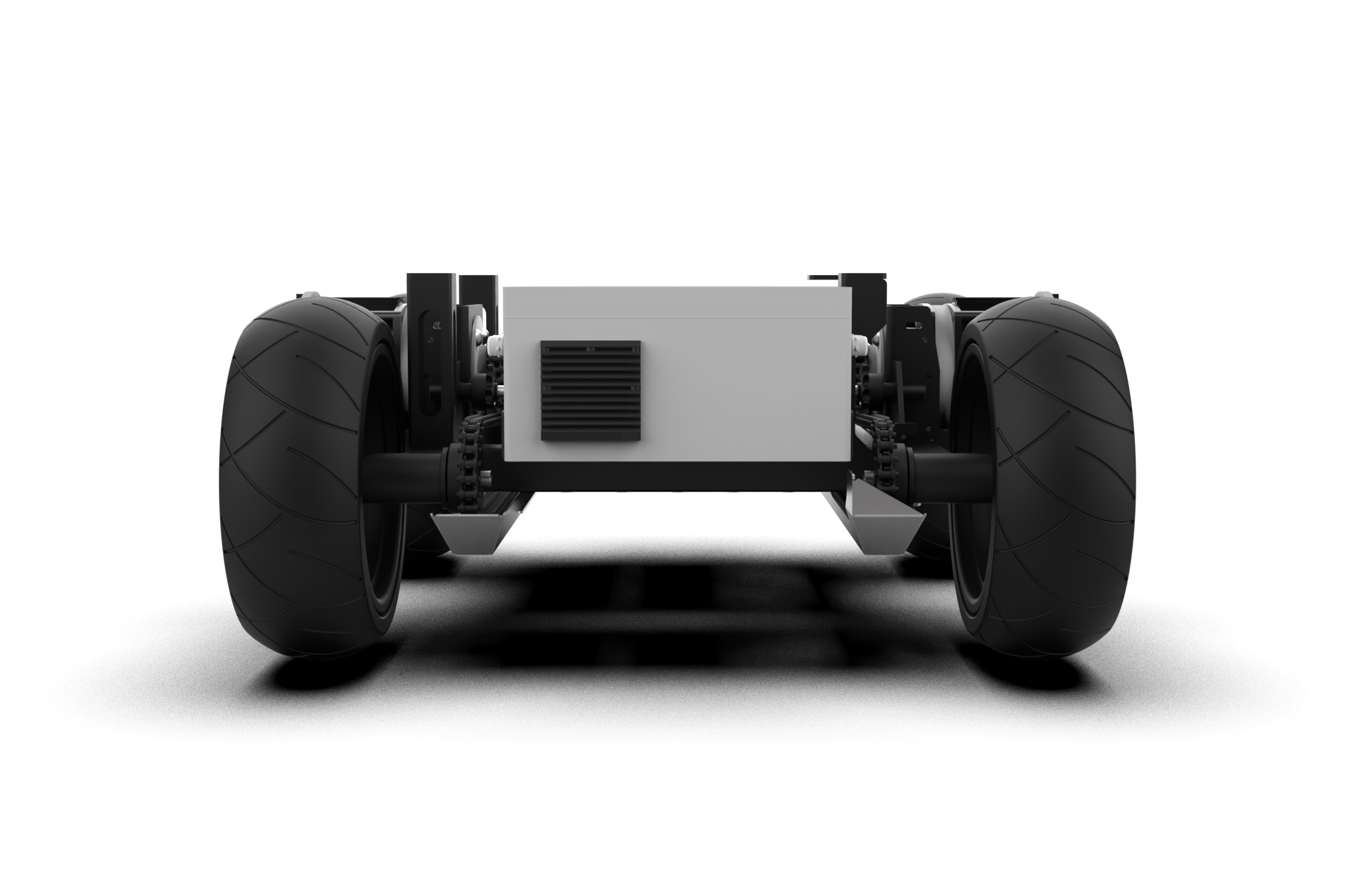

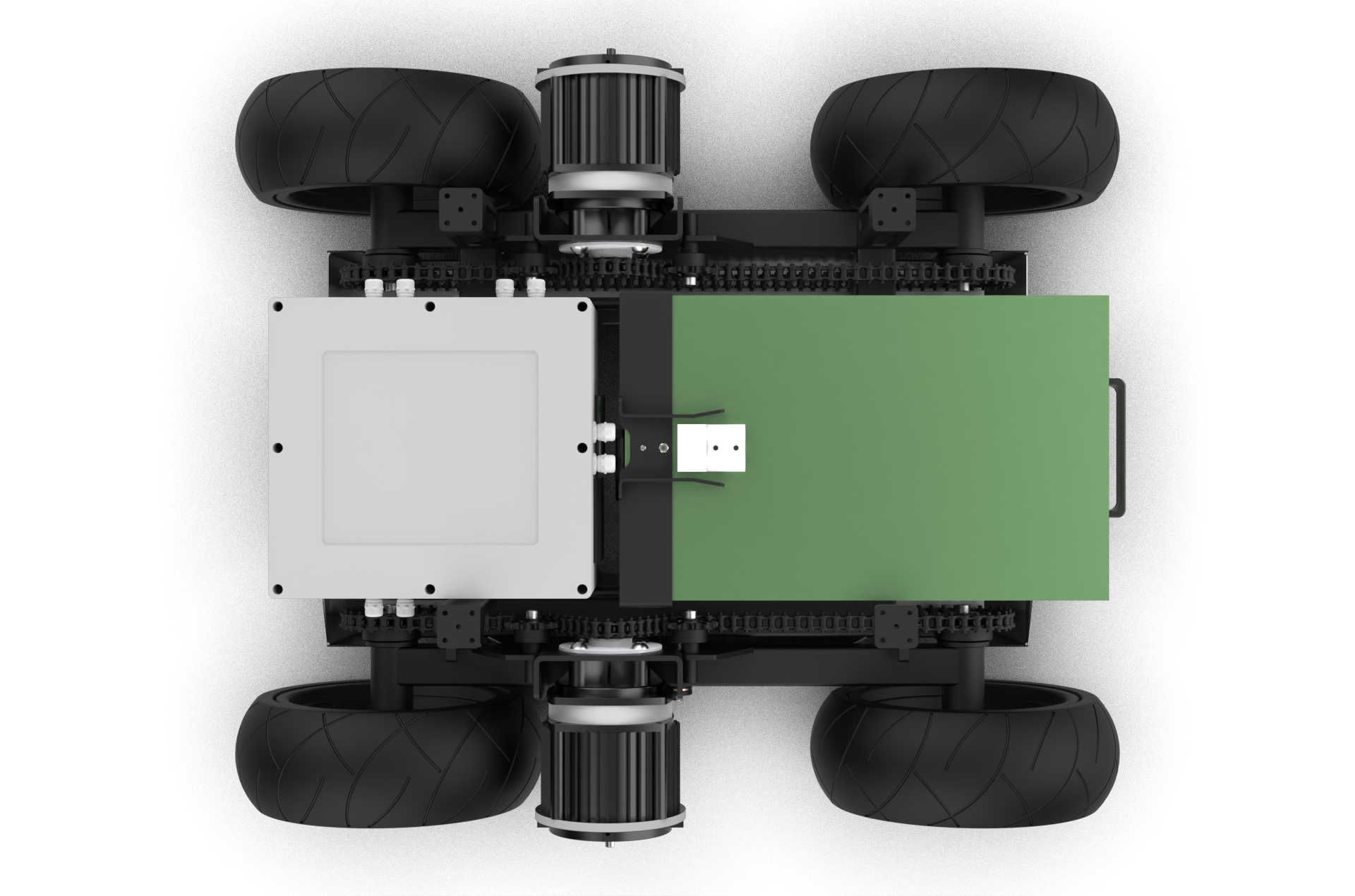

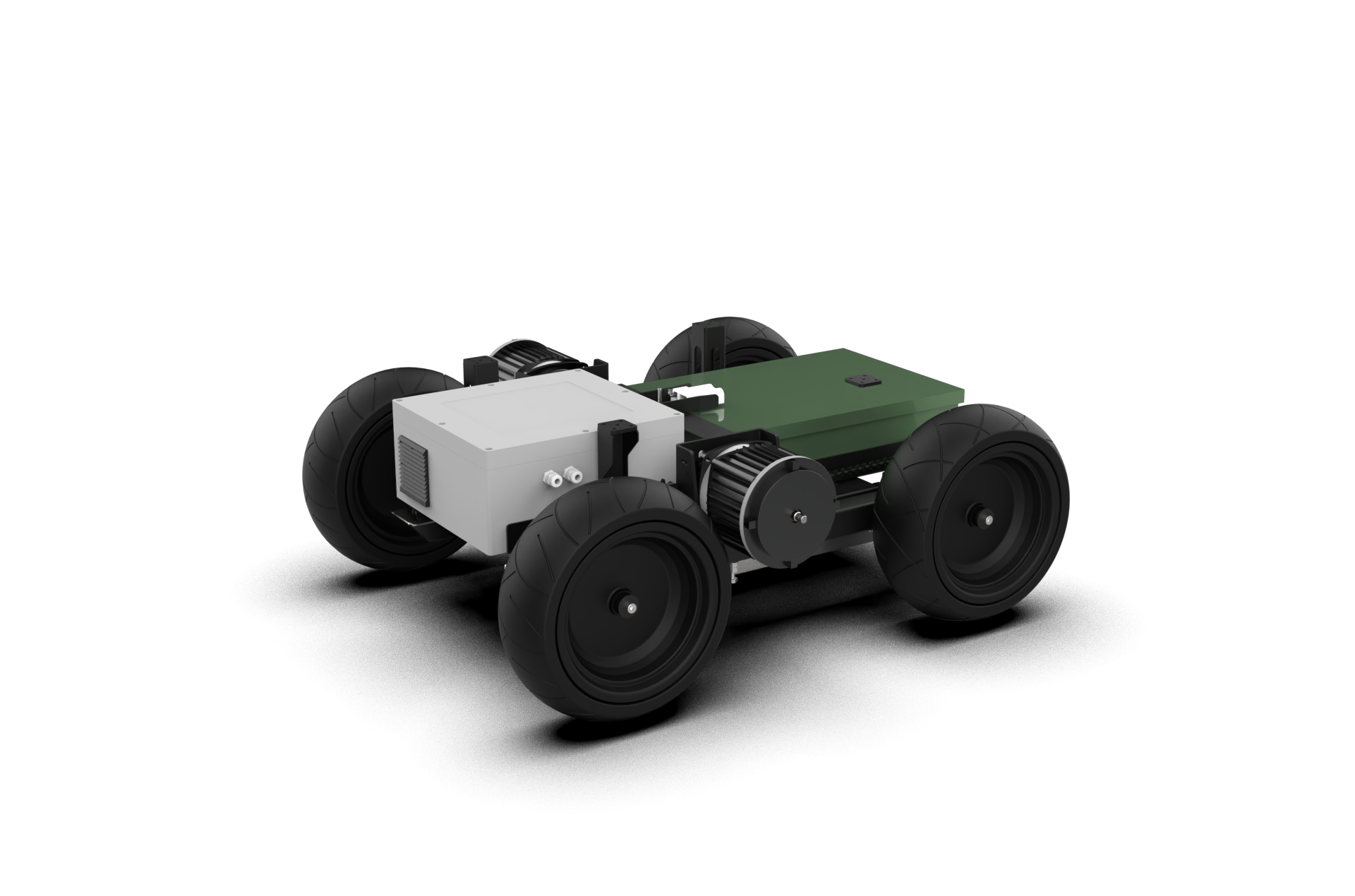

WK-20 Four-Wheel Drive Differential Steering Robot Chassis
The WK-20 integrates a brushless DC motor, high-precision encoder and driver, and braking components within the compact chassis power assembly. Its tight layout provides users with ample development space and imaginative possibilities, helping you create unique robotic products that stand out from the crowd.
Inquiry Now




Specification ITEMParameter DATASpecification ITEMParameter DATA

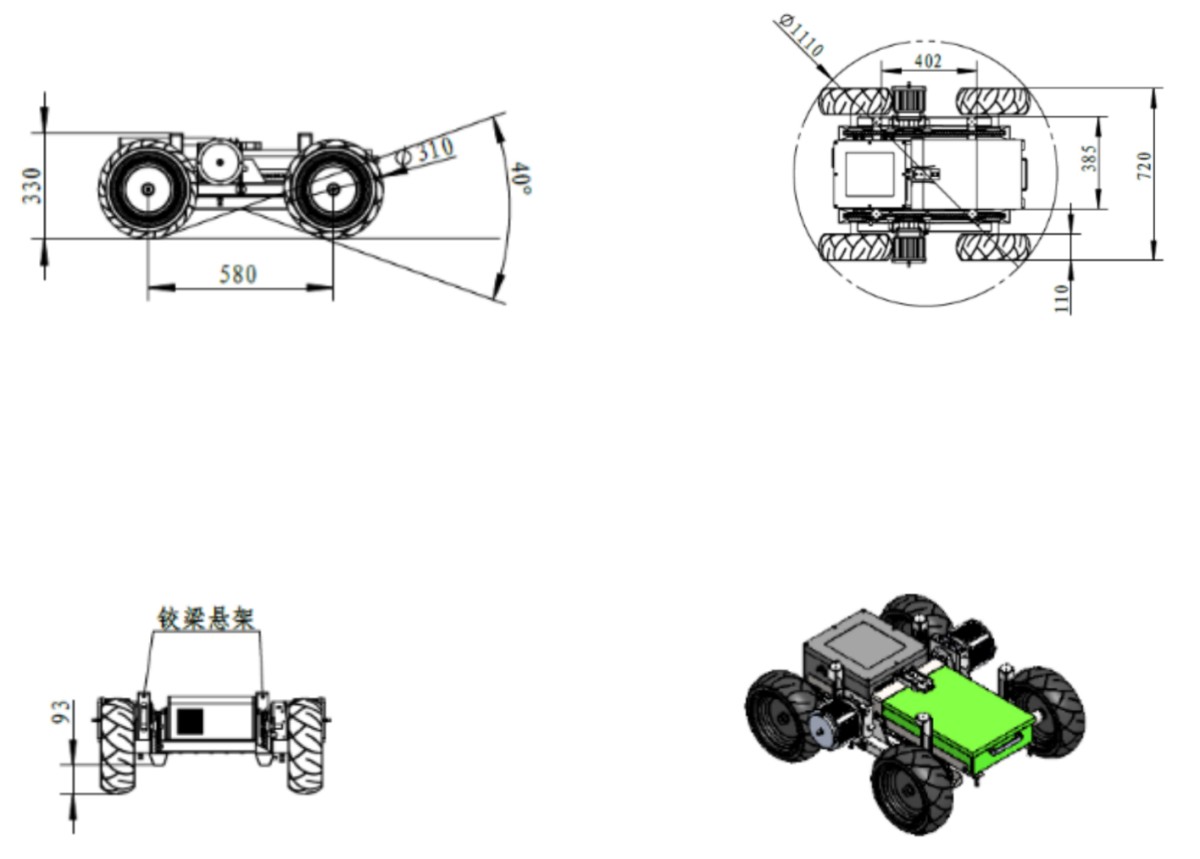

Design dimensions890*720*330mmOperating Speed5.4KM/H
Base self-weight45KGSurface TreatmentElectroplating
Main body materialAlloy Steel PlateProtection LevelIP54
Ground clearance93mmMaximum Load Capacity50KG
Steering ModeDifferential SteeringMaximum Crossing100mm
Maximum Obstacle120mmMaximum Climbing30°
Wheel Diameter310mmMotor48V Brushless / Servo Motor 2KW*2
Rated Torque2*28NM
