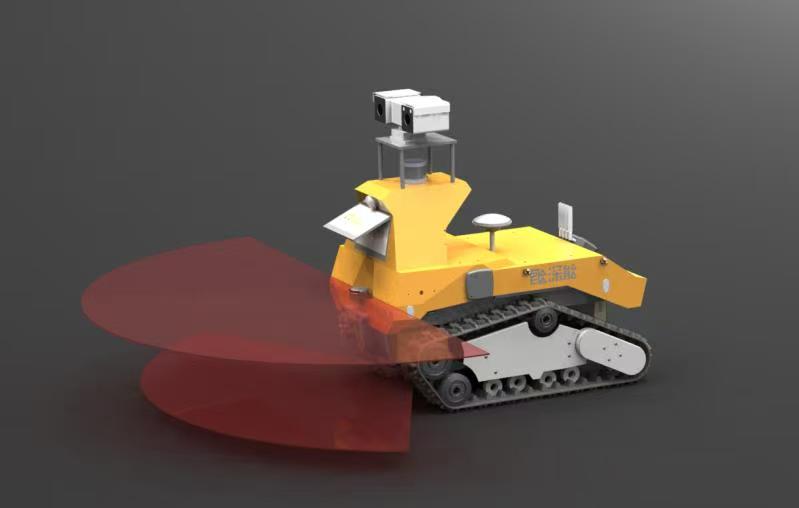

Earthquake rescue robot (tracked)

1. Product technical performance parameters

1. Machine parameters

1.1 Net weight of the whole machine : ≤350 kg ;

1.2 Product size : ≤ ( length × width × height ) 1 400 mm × 1 200 mm × 680 mm

1.3▲Drive type : pure electric;

1.4▲Control mode : 2.4G remote control/autonomous navigation RTK

1.5▲ Drive motor : 2KW×2 ;

1.6 Surface treatment : painting /plastic spraying

1.7 Protection grade : IP 65;

1.8 Operating speed : 0 ~3.6 km/h ( operation ) /0~5.4km/h (transfer)

1.9 Climbing angle : 30 ° ;

1.10 Battery type : lithium iron phosphate

1.11 Battery life : 3 ~ 4 hours depending on the work scene, land reclamation, lawn mowing, orchard maintenance

1.12 Charging time : 2 ~ 3h ( support battery replacement )

1.13 Working Capacitor : 48V 80Ah

2. Mowing function

2.1▲ Cutting width : 800mm

2.2▲Range of cutting table : 10~190mm

2.3 Cutting knife speed : 3000 rpm

2.4 Cutter power: 1500W×2

2. Product Configuration

1. 1 robot

2. 1 charger

3. 1 set of tool kit

4. 1 set of wearing parts

5. 1 copy of product manual

6. Base station and service This project is equipped with 1 set, additional purchase is required

7. This project comes with 1 set of dotting device , additional ones need to be purchased

3. Delivery cycle

1.5 months after contract signing
