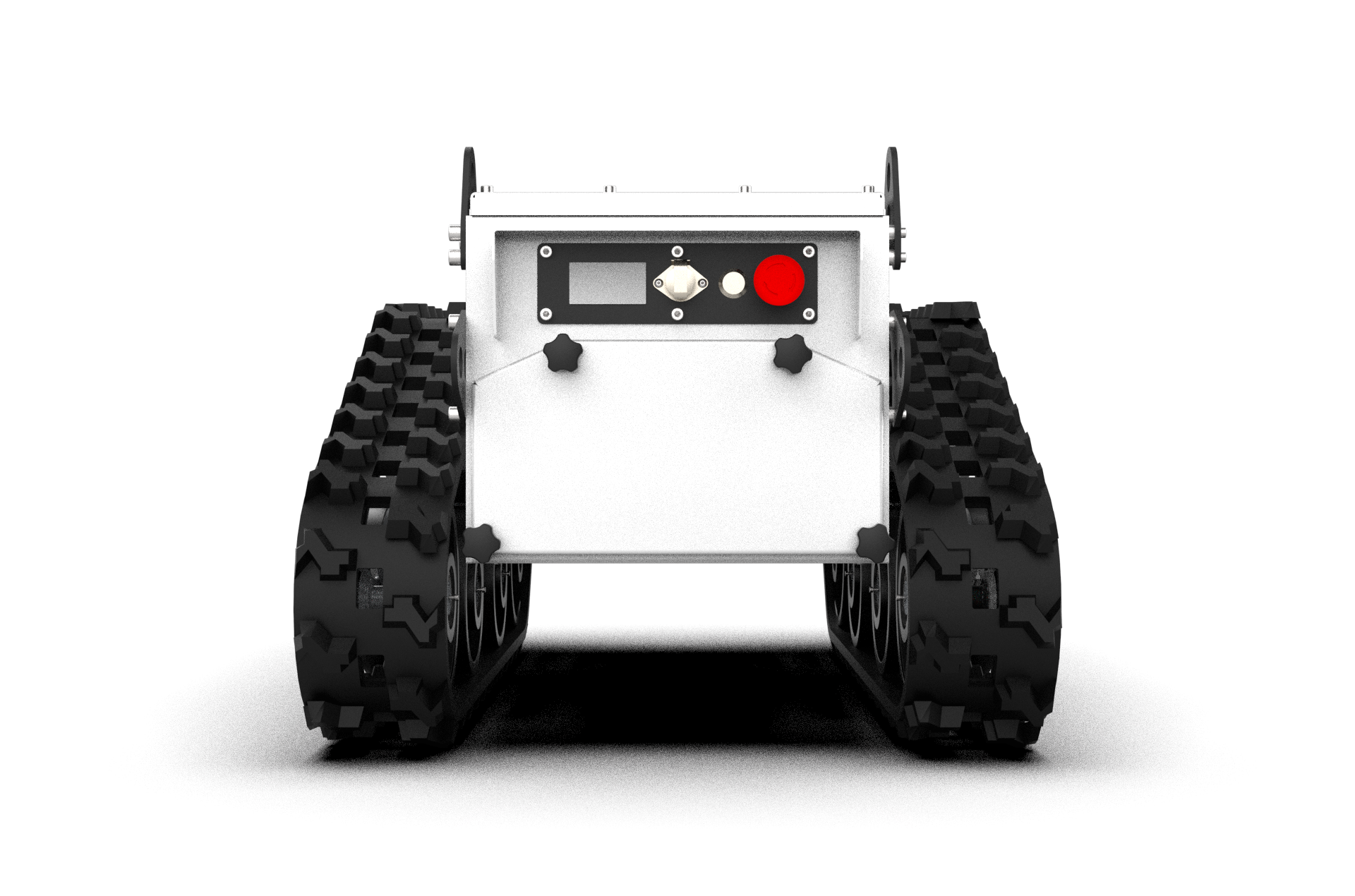

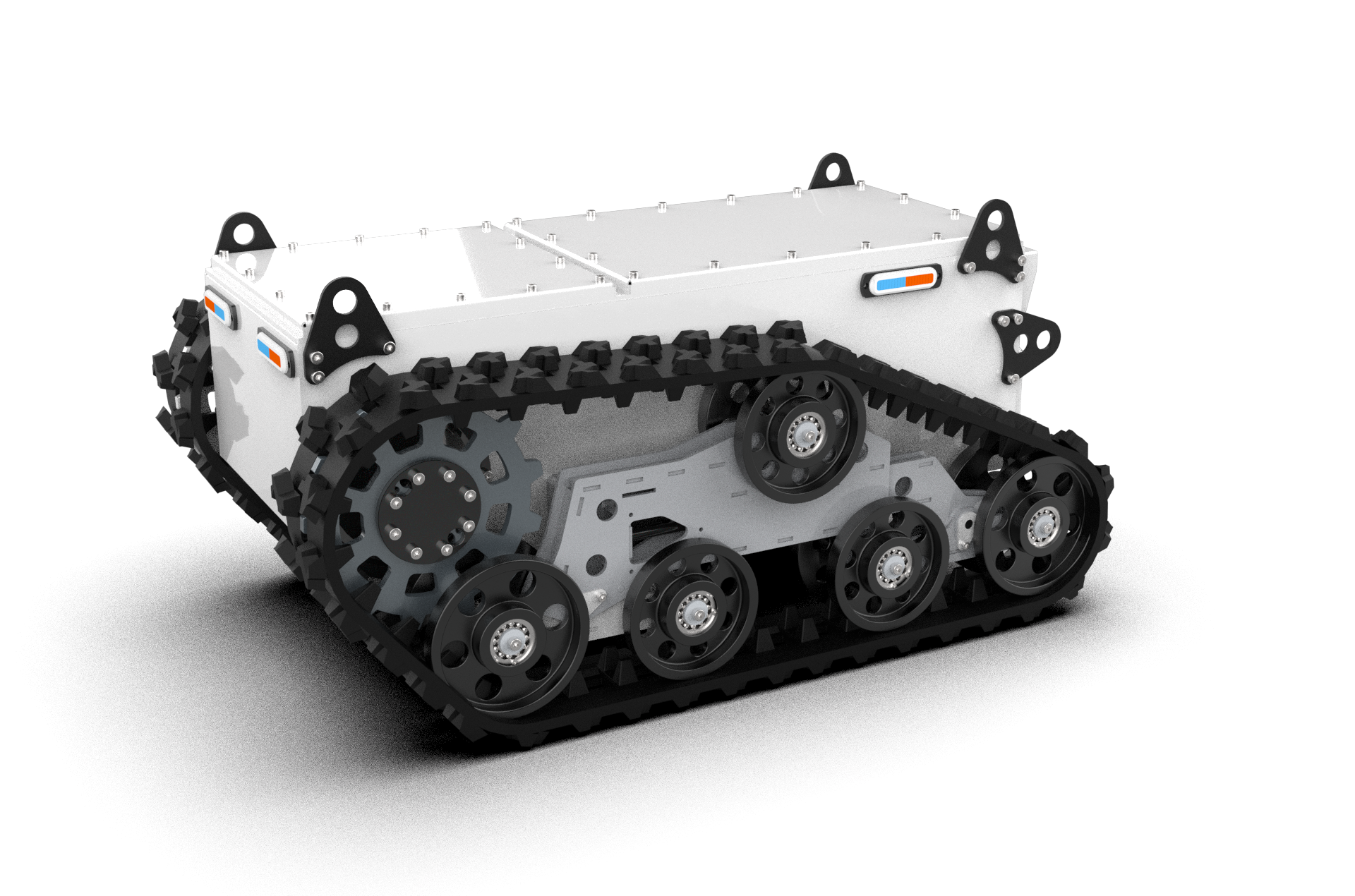

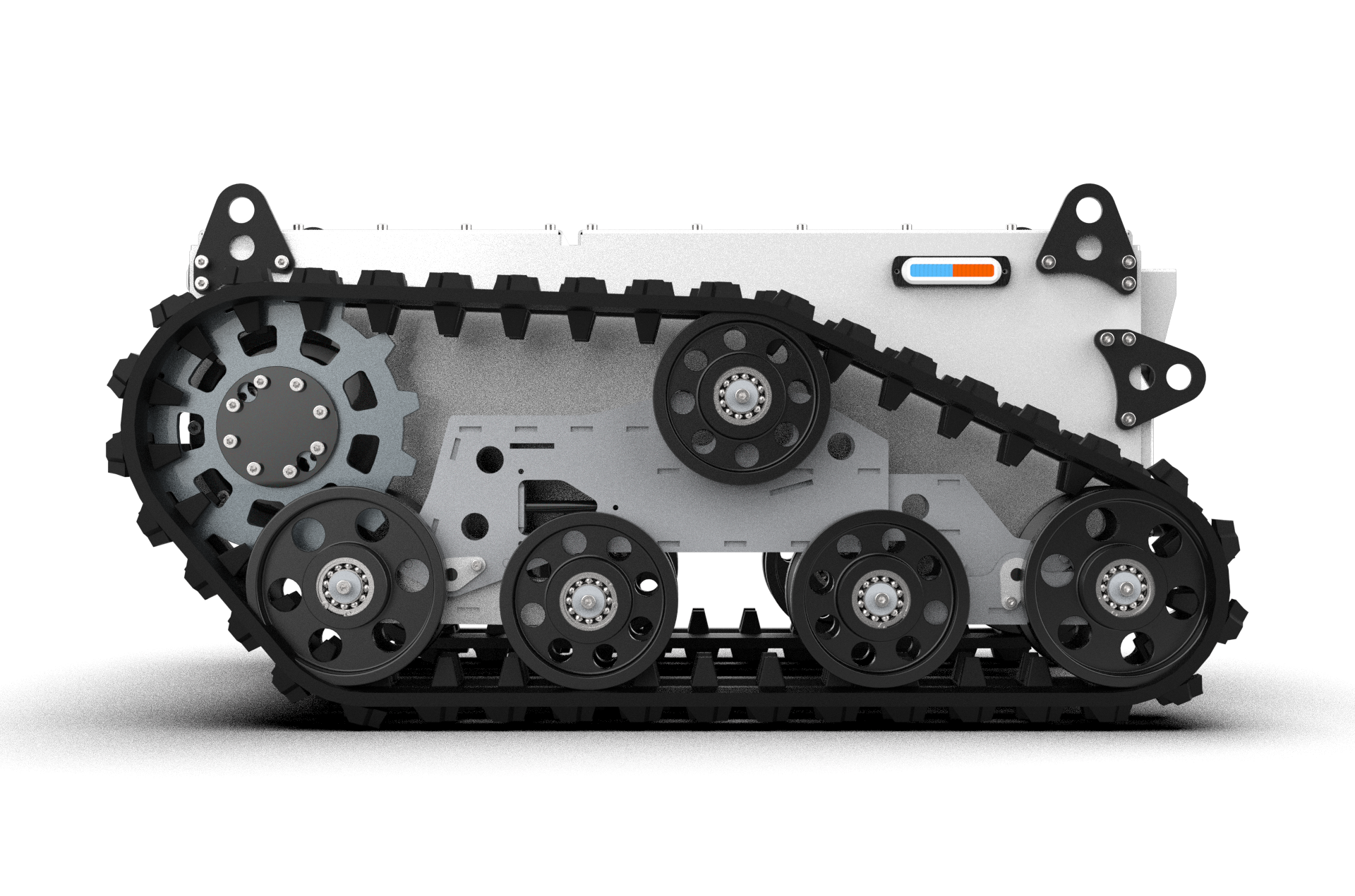

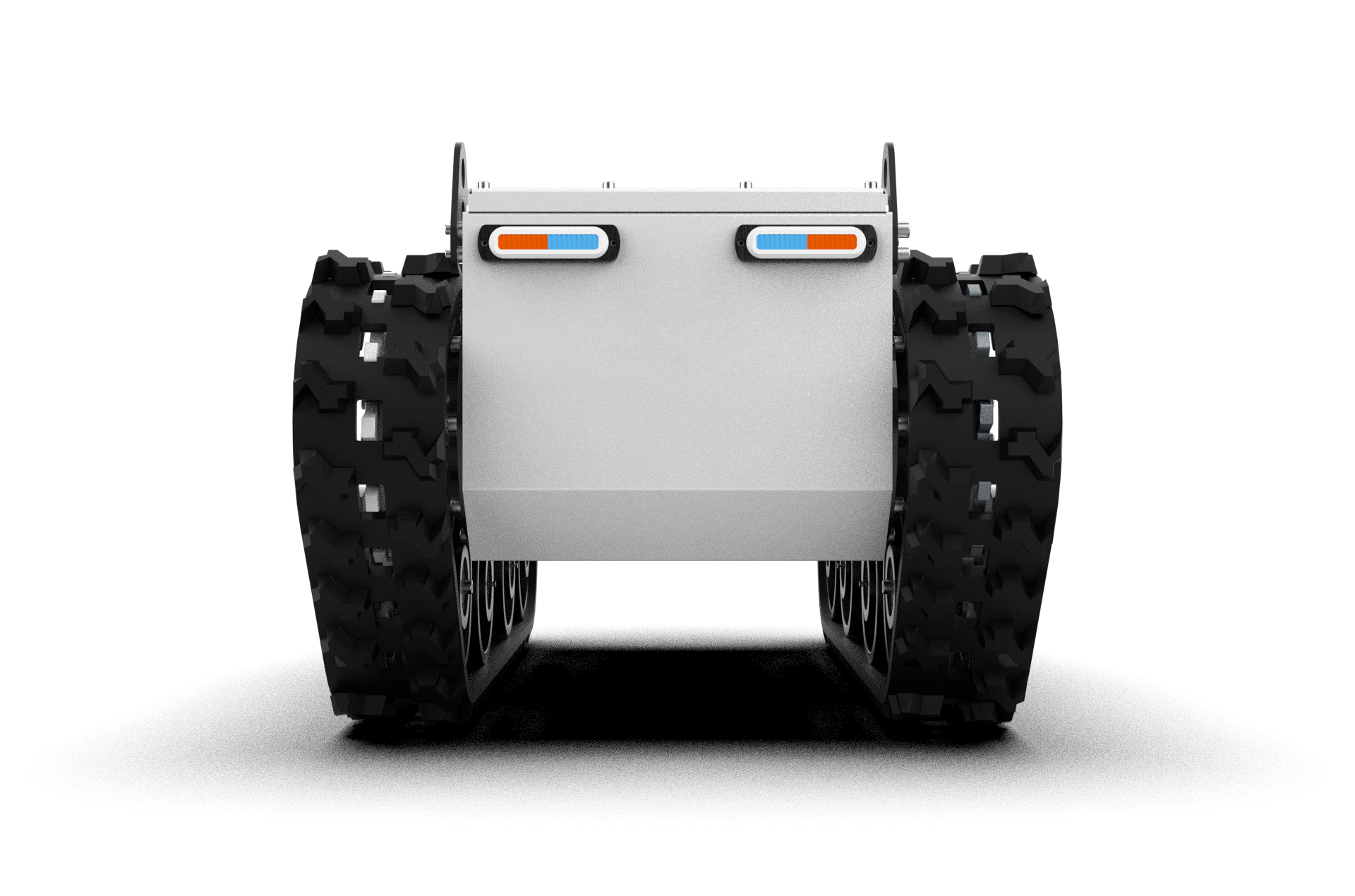

WK-11 medium crawler chassis
The WK-1105 robot chassis product is suitable for agricultural irrigation and fire-fighting operations. It is small in size and has strong throughput capabilities.
Inquiry Now





Indicator ITEM ParameterDATA Indicator ITEM ParameterDATA

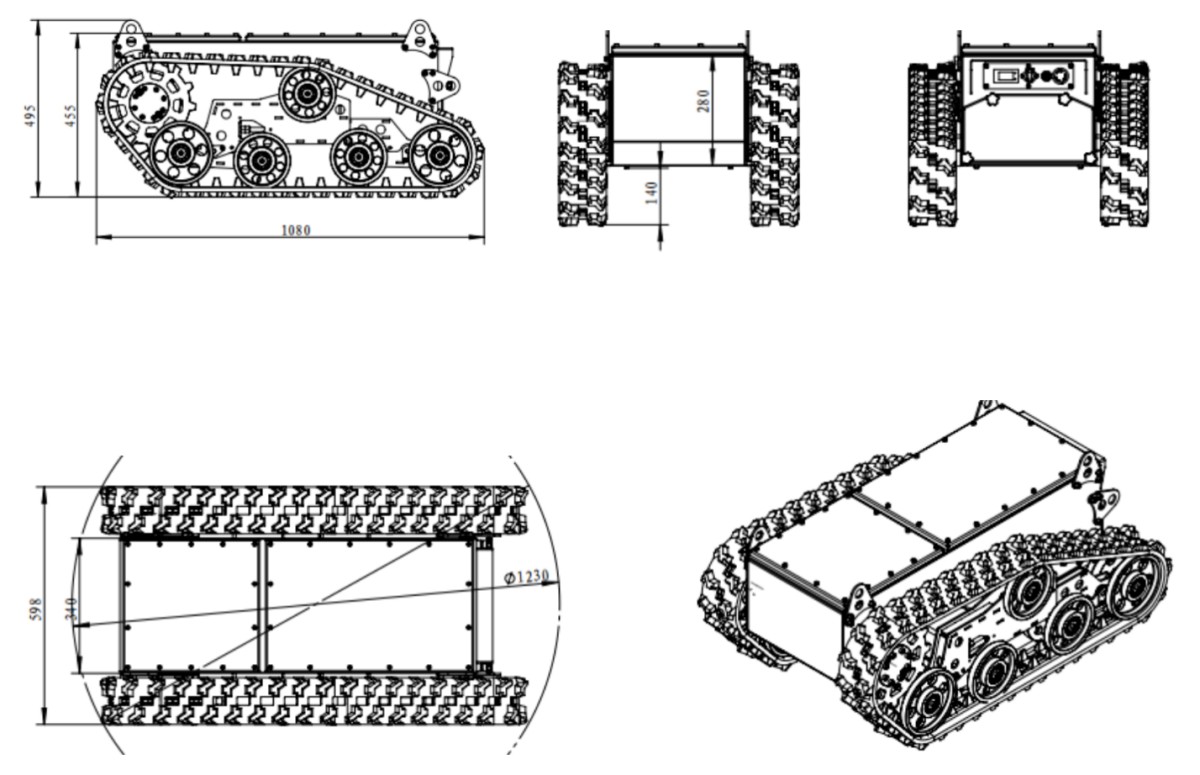

Design size 1080*800*544mm Inner compartment size 1000*380*280mm
Chassis weight 150KG Running speed 6.5KM/H
Track material High-quality rubber embedded with Kevlar fiber Chassis height 120mm
The main material Stainless steel 304/alloy steel plate/galvanized pipe/aluminum Protection level IP64
Shock absorbing system Left and right independent*6 hydraulic damping shock absorbers surface treatment Black spray (matte)
rated power 2000W*2 Design load 100KG
Motor selection 48V DC brushless motor/high precision servo motor Rated torque 60N·M
Reduction ratio 1:15 bandwidth 150mm
maximum obstacle 180mm maximum climb ≤ 30°
biggest leap 400mm Maximum load 150KG
