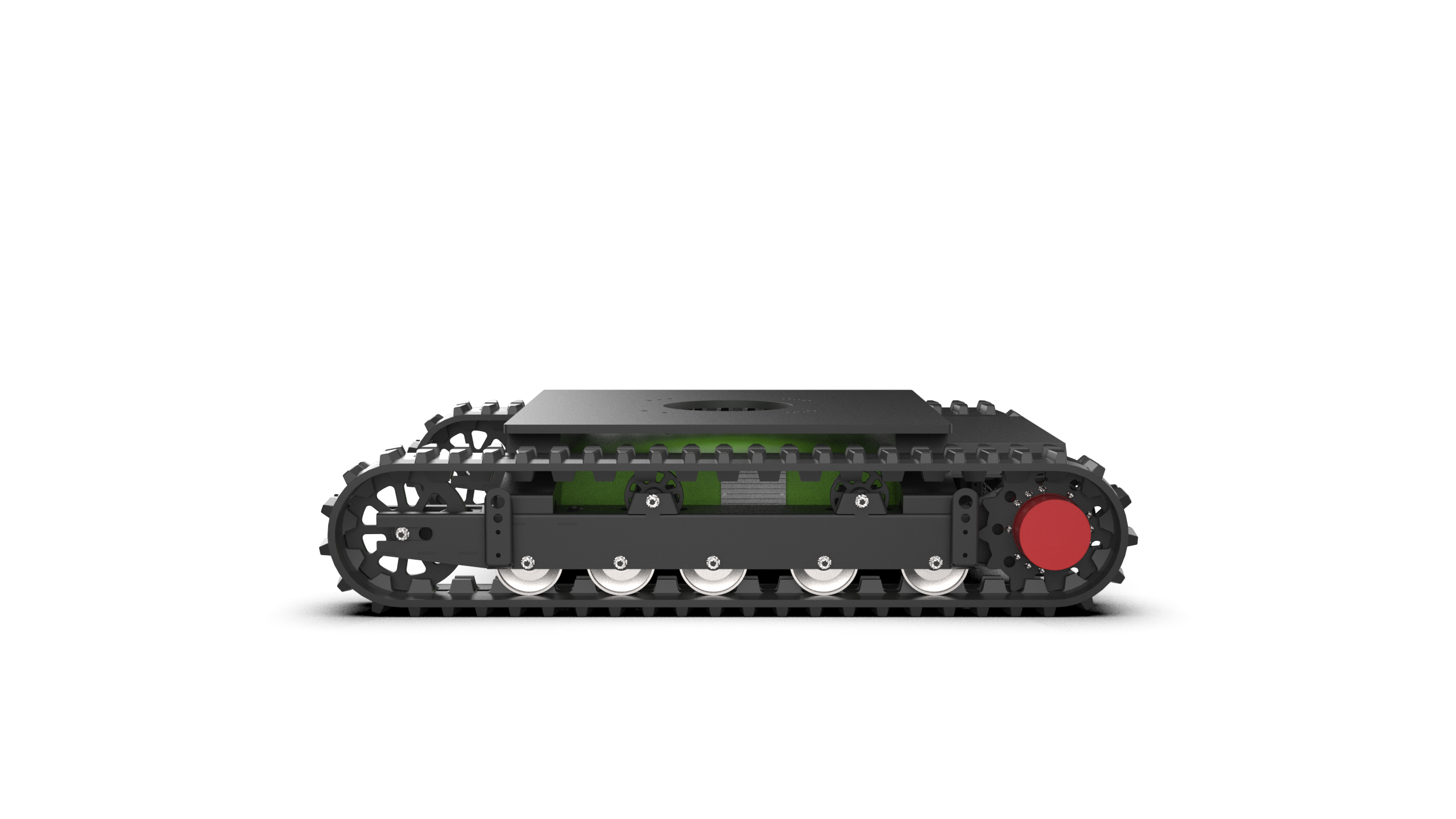

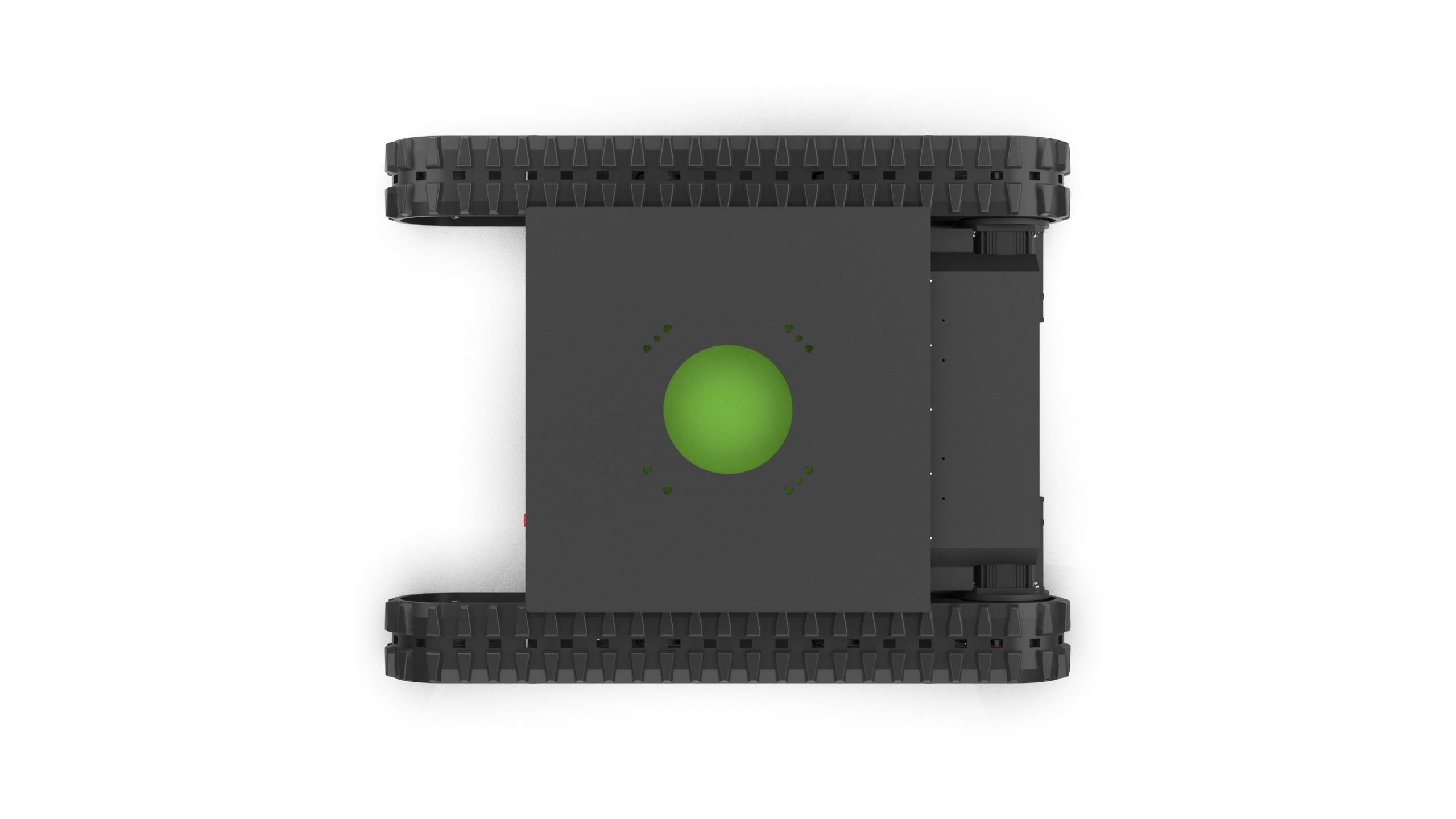

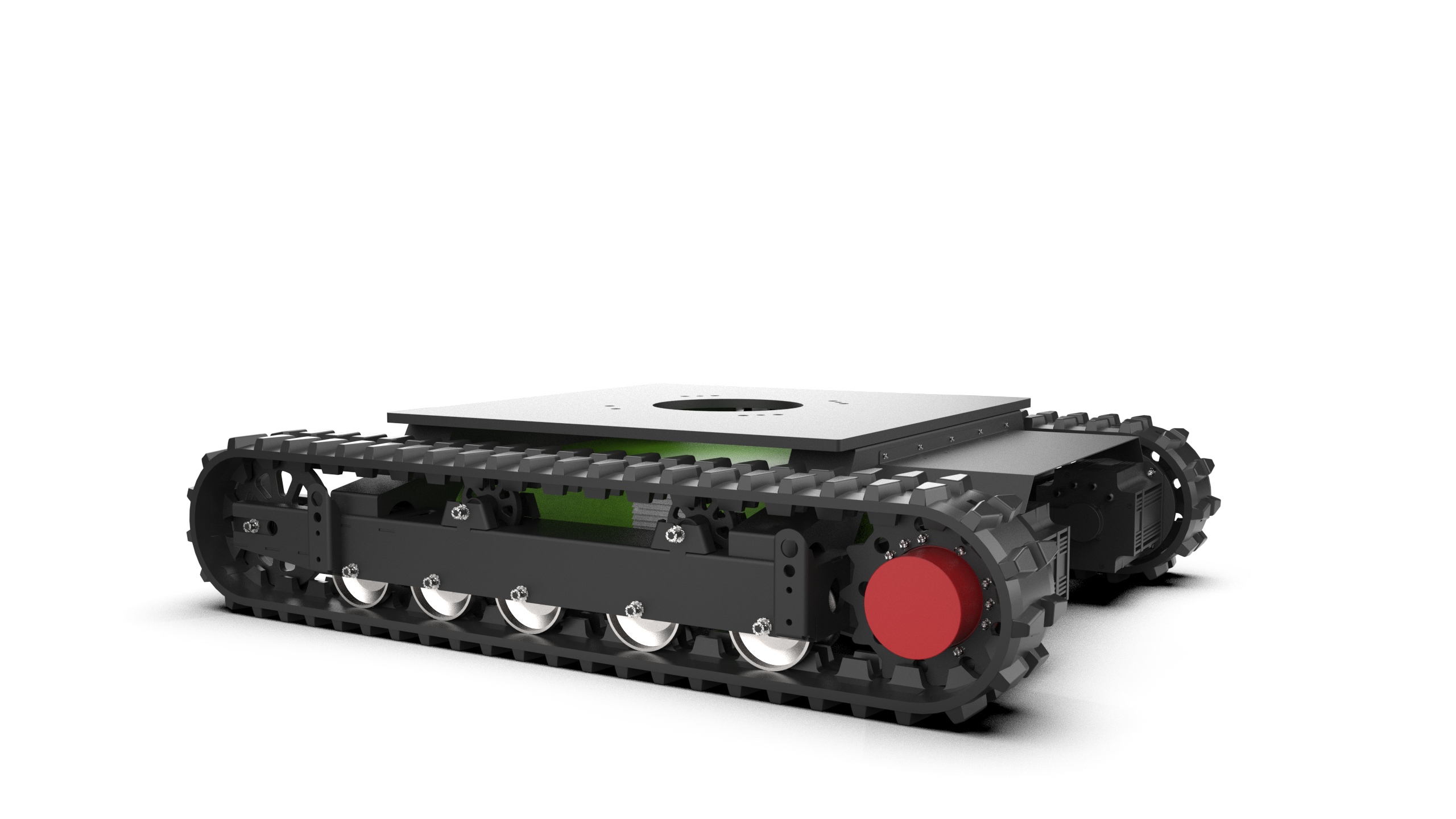

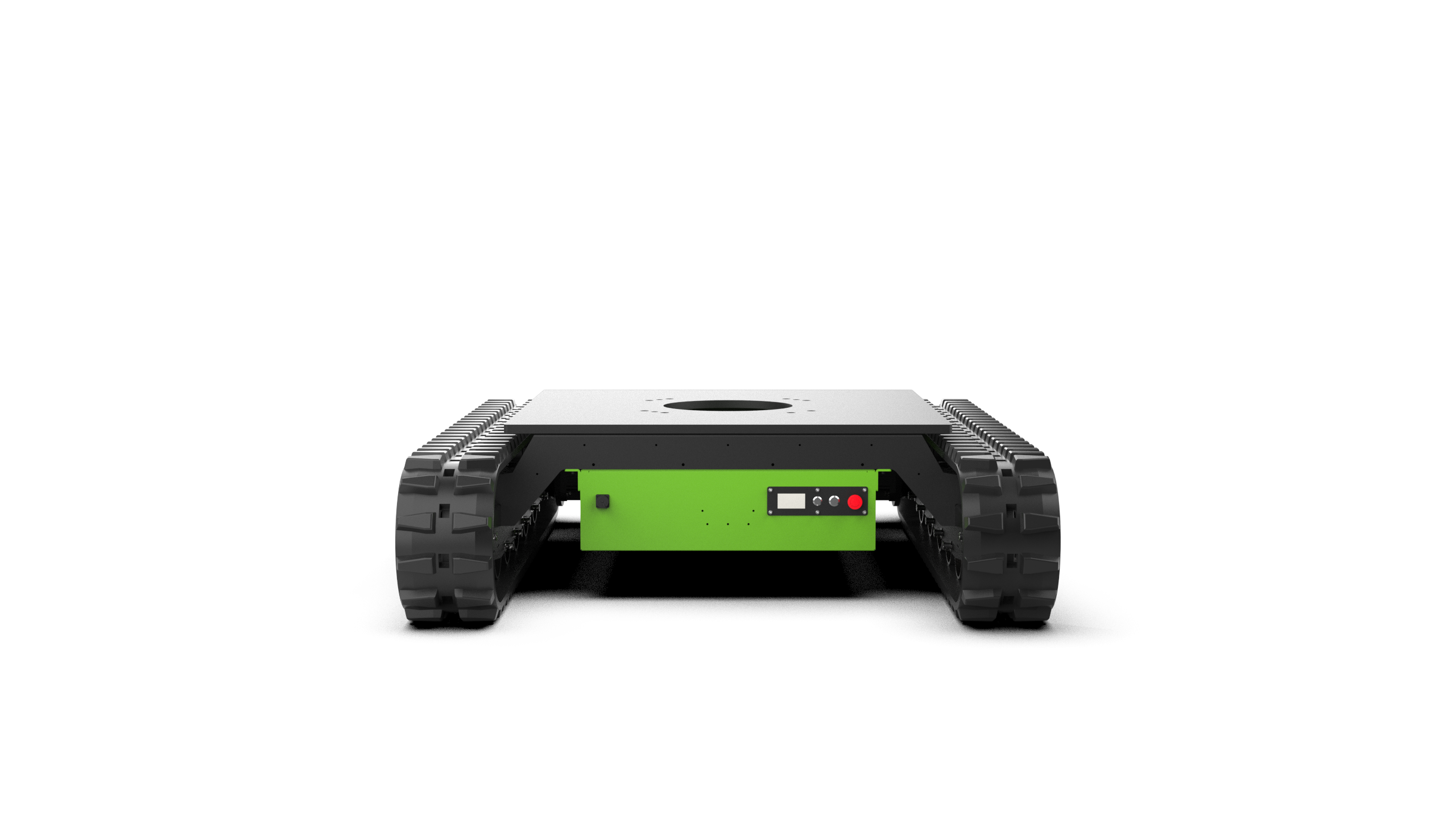

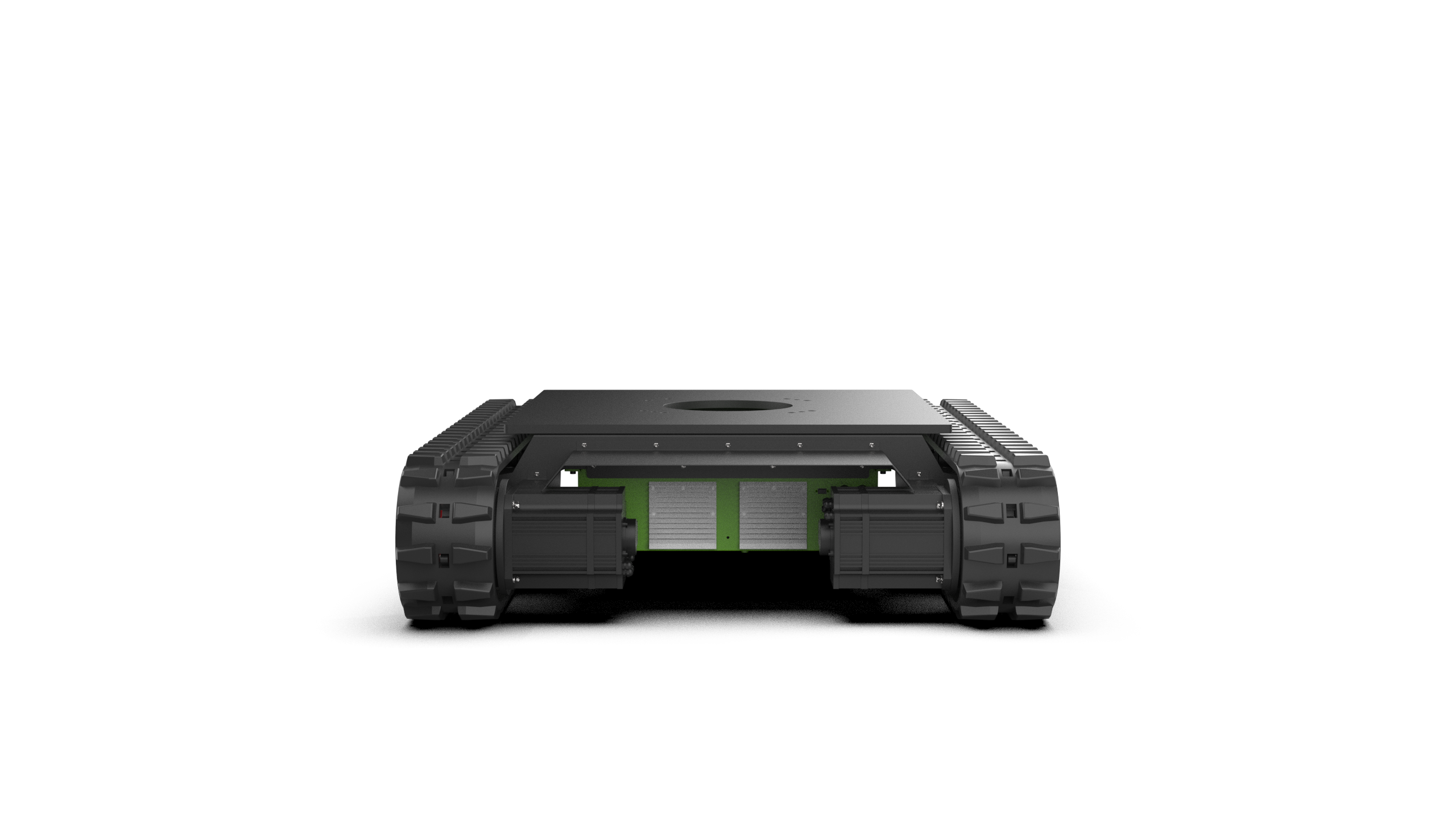

WK-15 Universal Medium-Large Crawler Robot Chassis
WK-15 Tracked Robot Chassis is designed for heavy-duty and complex scenarios, featuring dual-motor differential drive, equipped with high-precision encoder DC motors and full-interface rigid actuators, delivering powerful performance and precise control
Inquiry Now

The WK-15 crawler-type robot chassis is specifically designed for heavy-load and complex scenarios, featuring dual-motor differential drive, equipped with high-precision encoder DC motors and full-interface rigid actuators, delivering powerful performance and precise control.

The crawler chassis is adaptable to various road conditions and requires no maintenance, supporting full-scenario customization and industrial design aesthetics. It is widely used in unmanned transport, industrial welding, and other specialized robot fields.

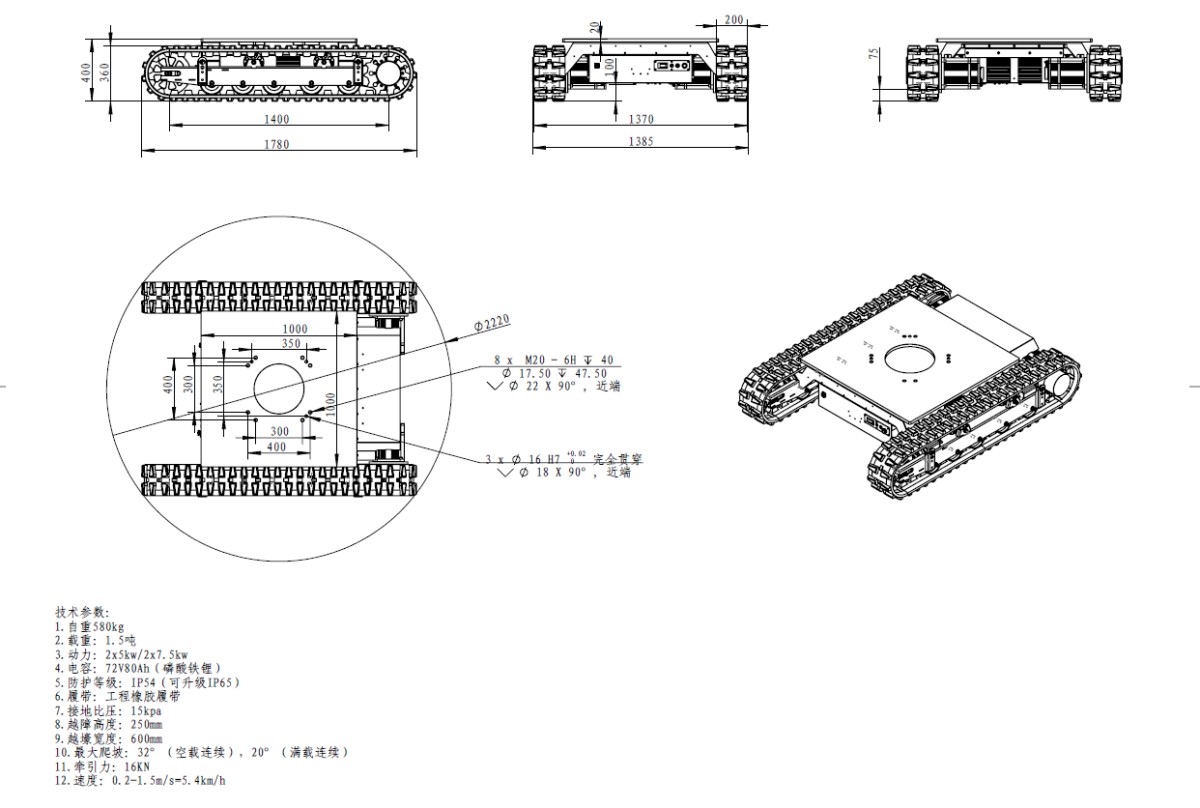

PixPin_2025-11-06_23-21-08

Indicator ITEMParameter DATAIndicator ITEMParameter DATA
Design dimensions1780*1385*400mmRated Torque2*28NM
Base self-weight580KGOperating Speed5.4KM/H
Main body material Alloy steel plate Protection LevelIP54
Ground clearance75mmSurface TreatmentElectroplating
Steering ModeDifferential SteeringMaximum Load Capacity1500KG
Maximum Obstacle250mmMaximum Crossing100mm
Wheel Diameter200mmMotor48V servo motor 2KW*2
Maximum Climbing Slope32°
