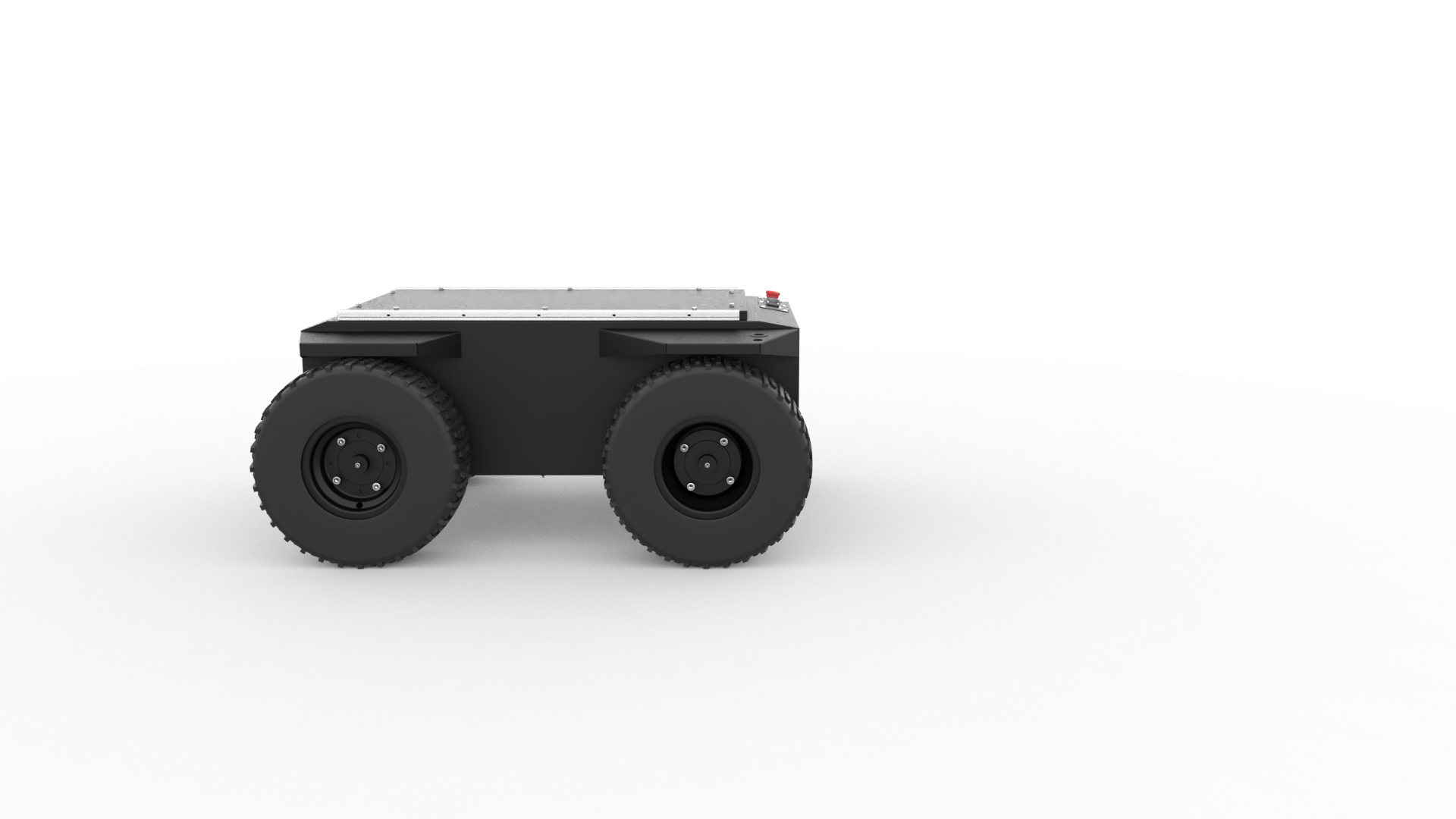

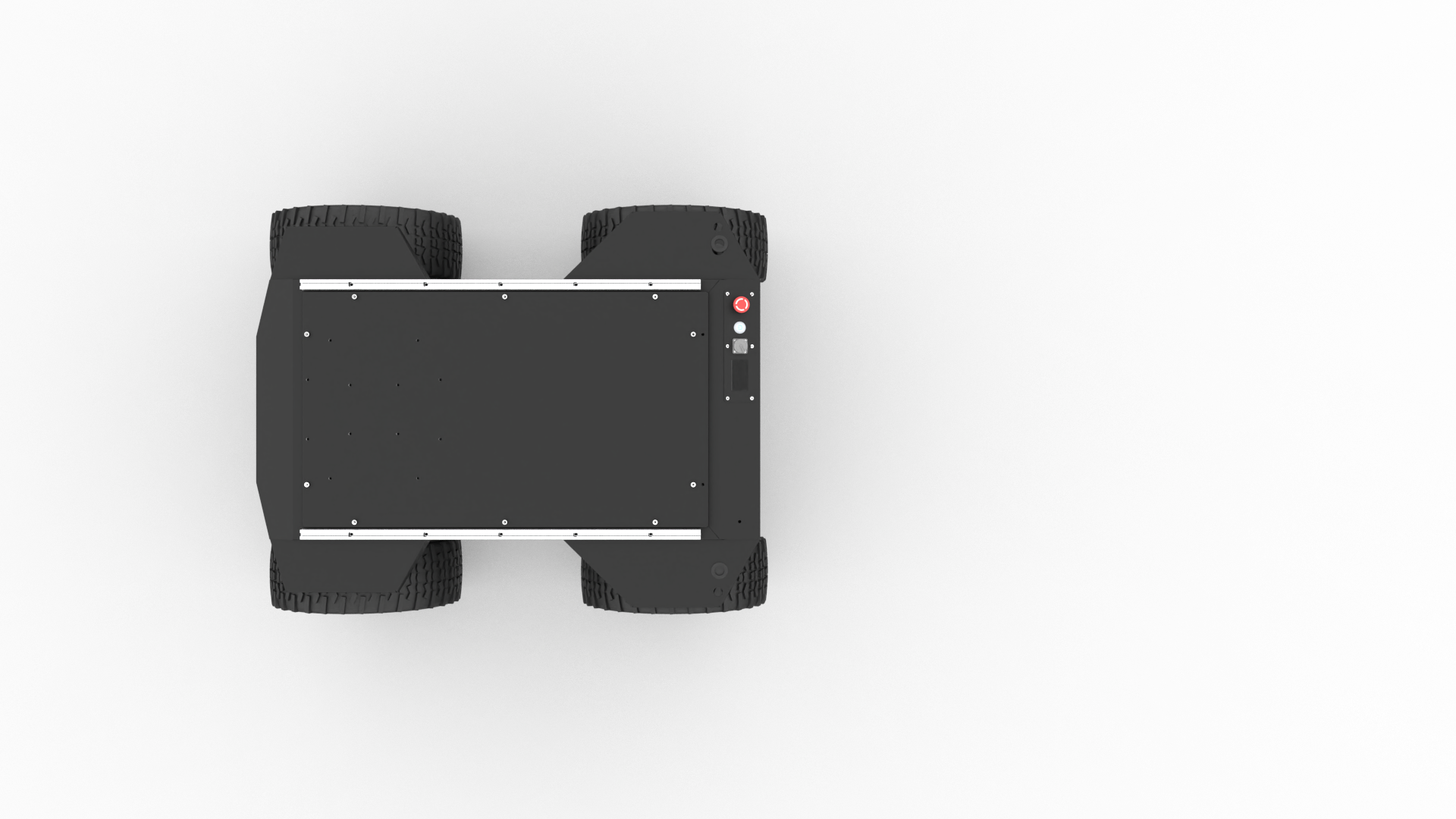

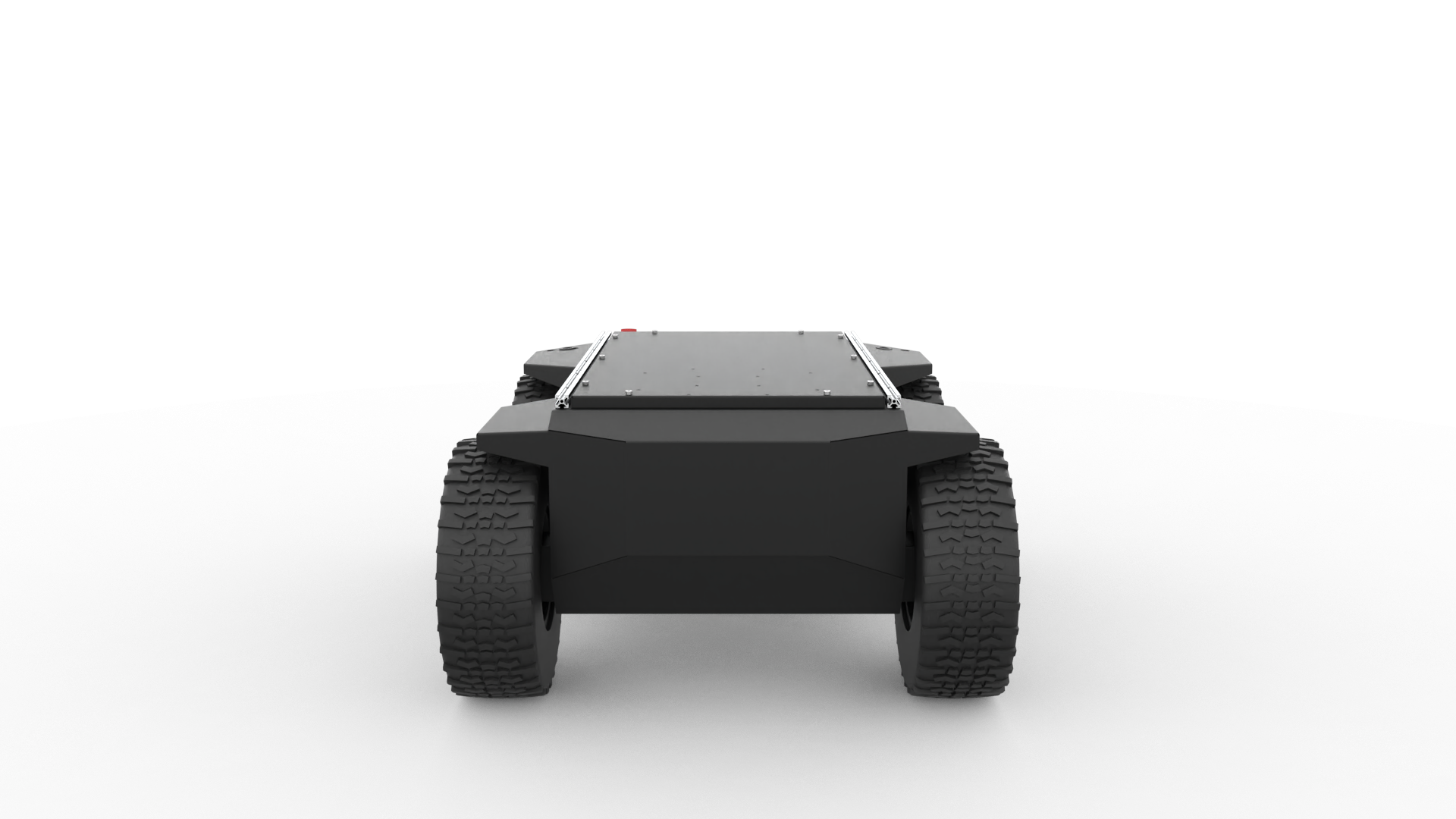

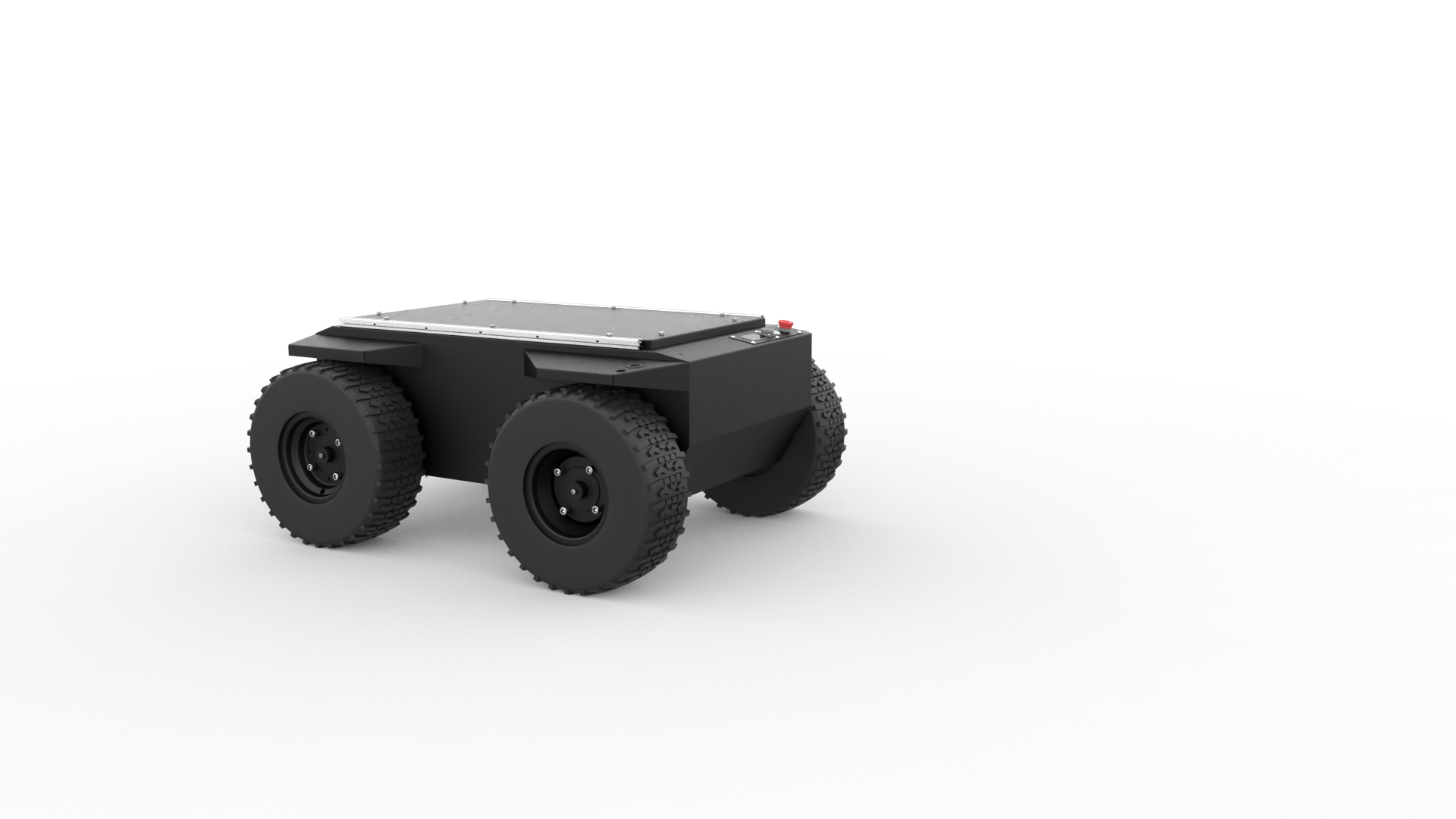

WK-22 Four-wheel drive differential steering machine chassis
WK-22 Four-Wheel Drive Differential Steering Robot Base Plate
Inquiry Now

The WK-22 four-wheel drive differential steering machine features a customizable height configuration, capable of adapting to various complex working conditions. It is equipped with 4 sets of shock absorbers and an independent suspension structure, significantly enhancing the overall vehicle stability and load capacity.

Designed with differential steering, it offers a smaller turning radius and stronger maneuverability. Fitted with explosion-proof tires, it supports lightweight design while enabling rapid outdoor maintenance, making it an ideal mobile platform for outdoor exploration, emergency rescue, security patrols, and other complex operational scenarios.

WK-22 Four-wheel drive differential steering machine chassis


Indicator ITEMParameter DATAIndicator ITEMParameter DATA

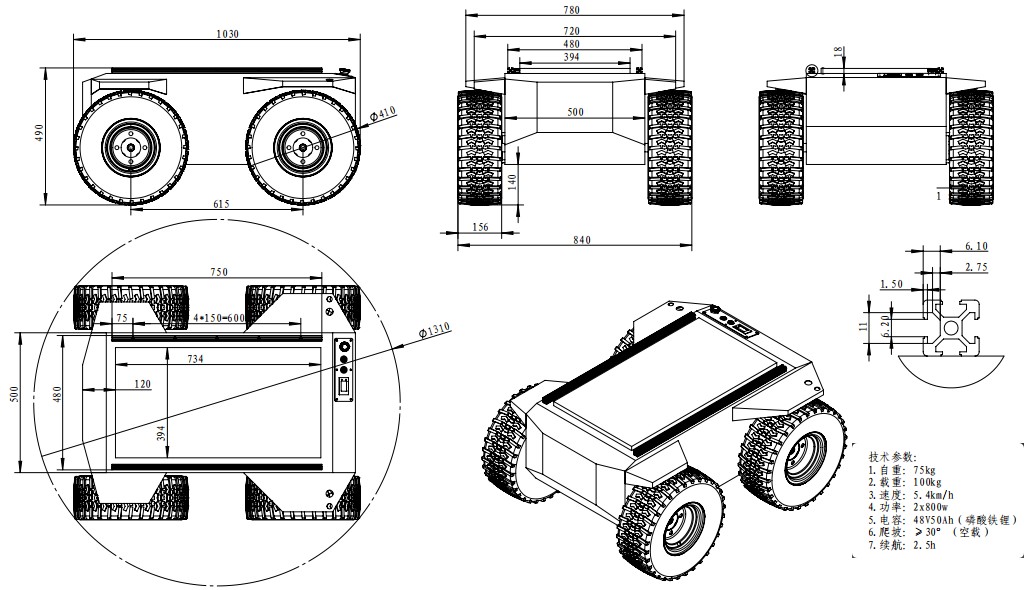

Design Dimensions1030*840*490mmOperating Speed5.4KM/H
Chassis Self-Weight  75KGSurface Treatment
Electroplating
Main body materialAlloy Steel PlateProtection LevelIP54
Ground clearance140mmMaximum Load Capacity100KG
Steering ModeDifferential SteeringMaximum Crossing100mm
Maximum Obstacle Crossing
120mm
Maximum climbing slope
30°
Wheel Diameter310mmMotor48V Brushless/Servo Motor 2KW*2
Rated Torque
2*28NM
