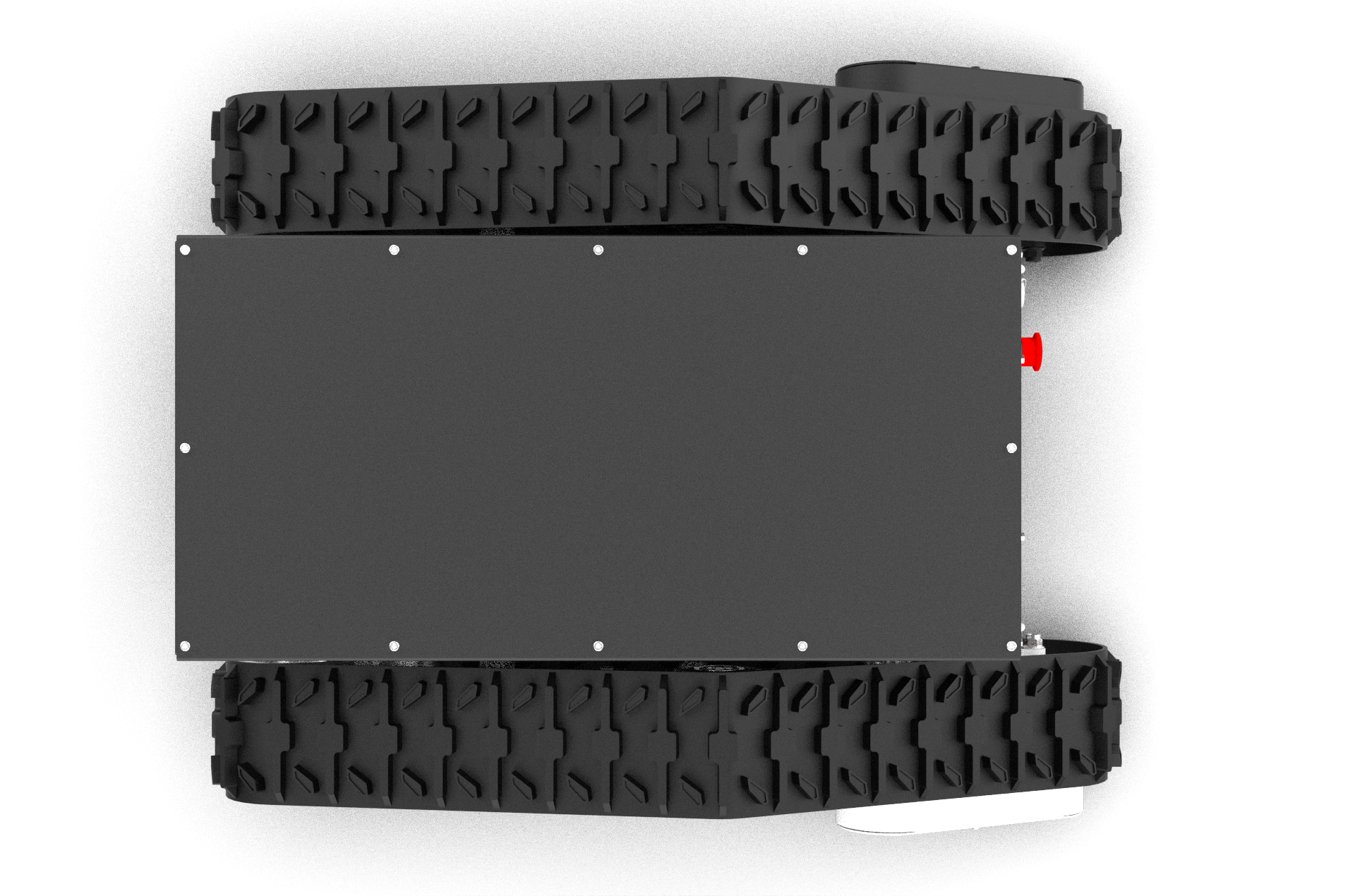

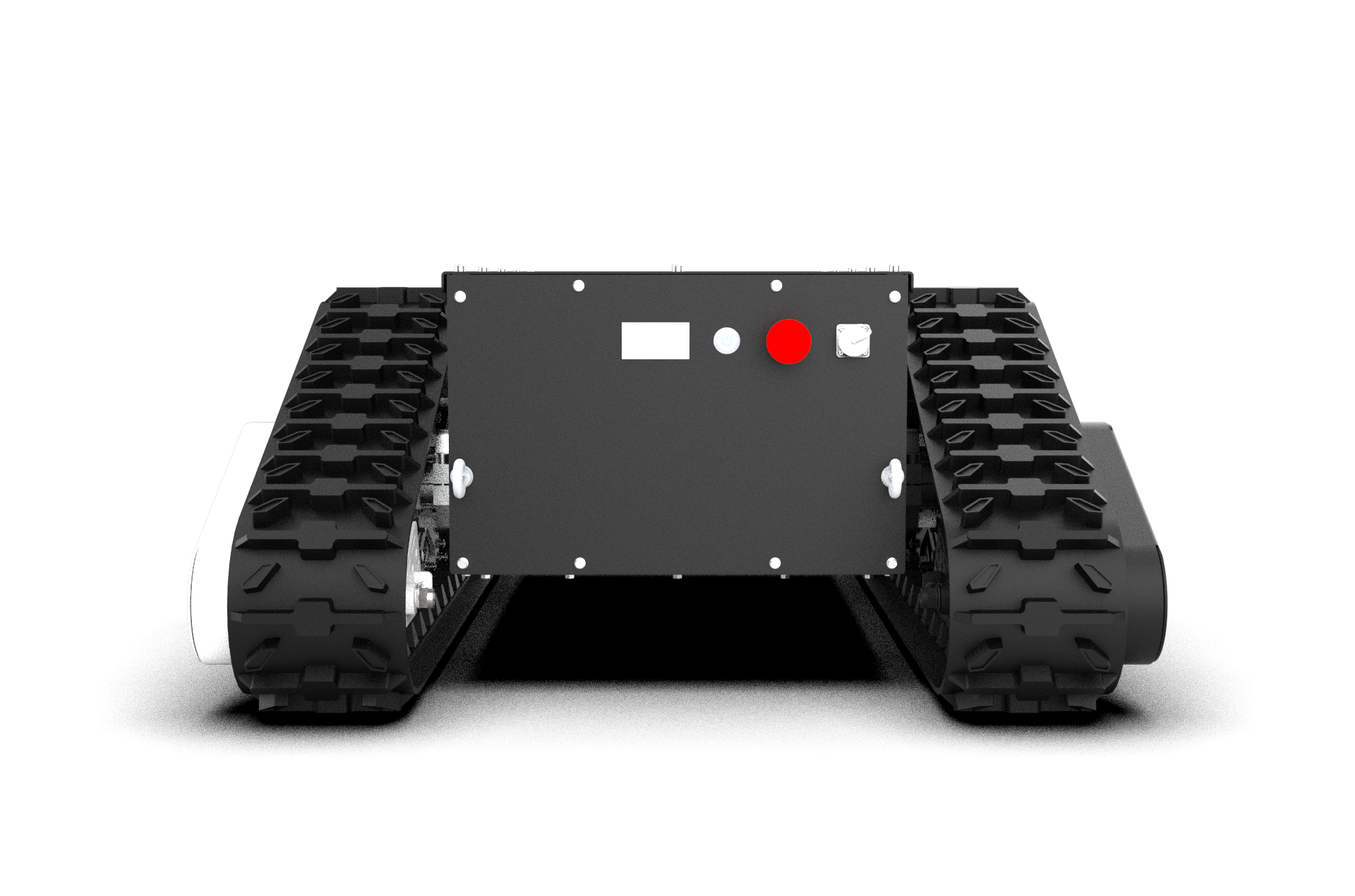

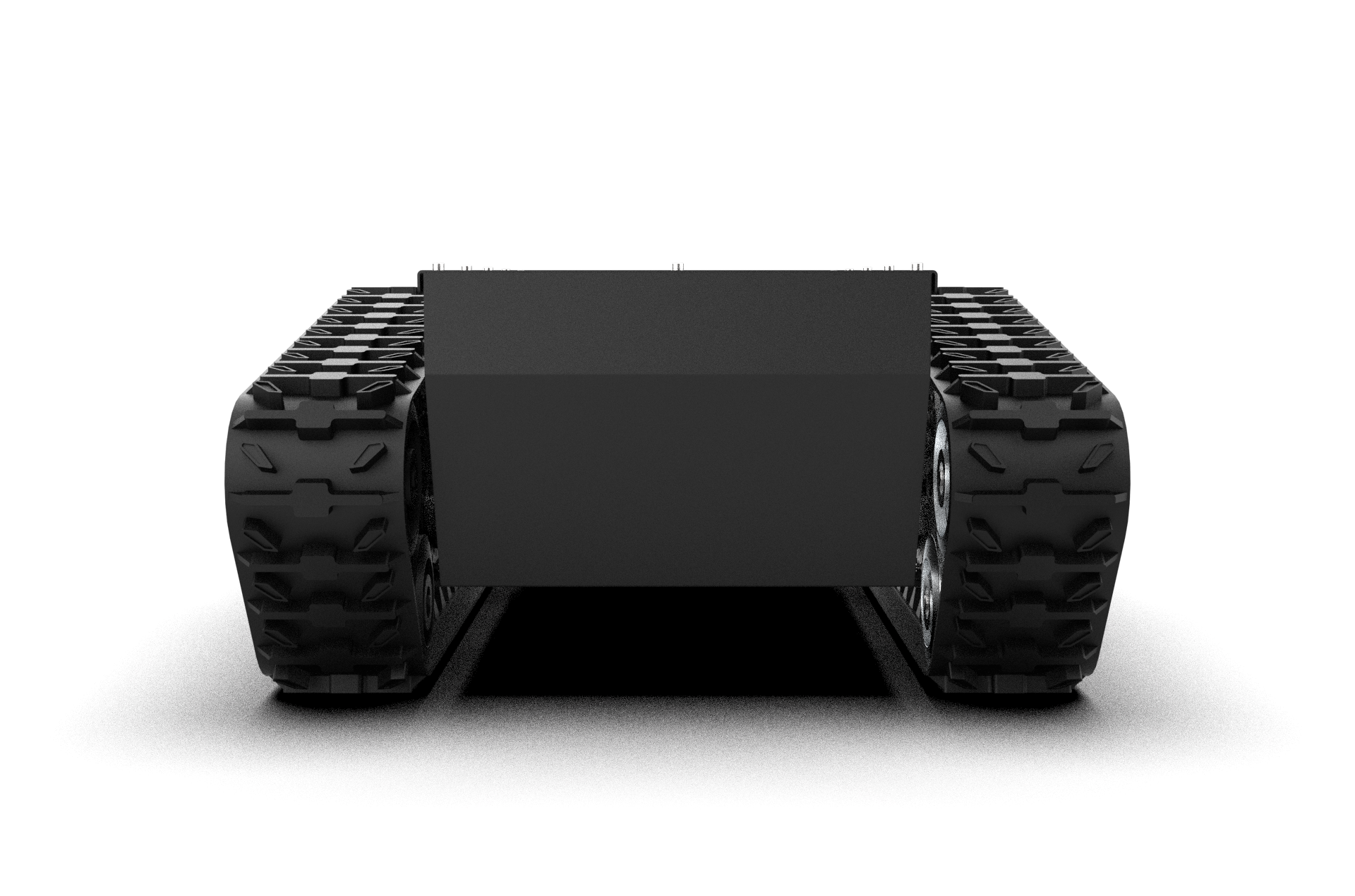

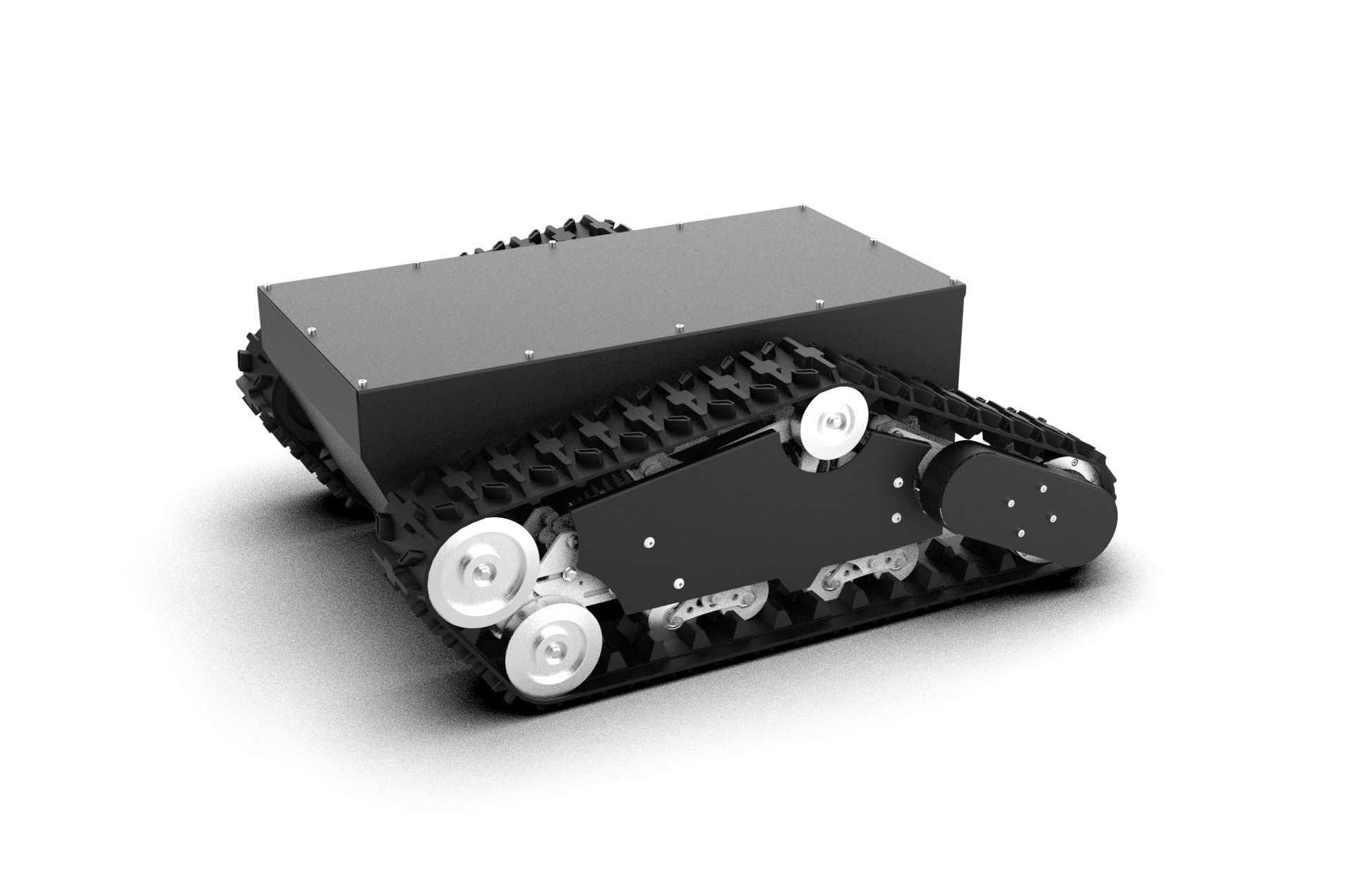

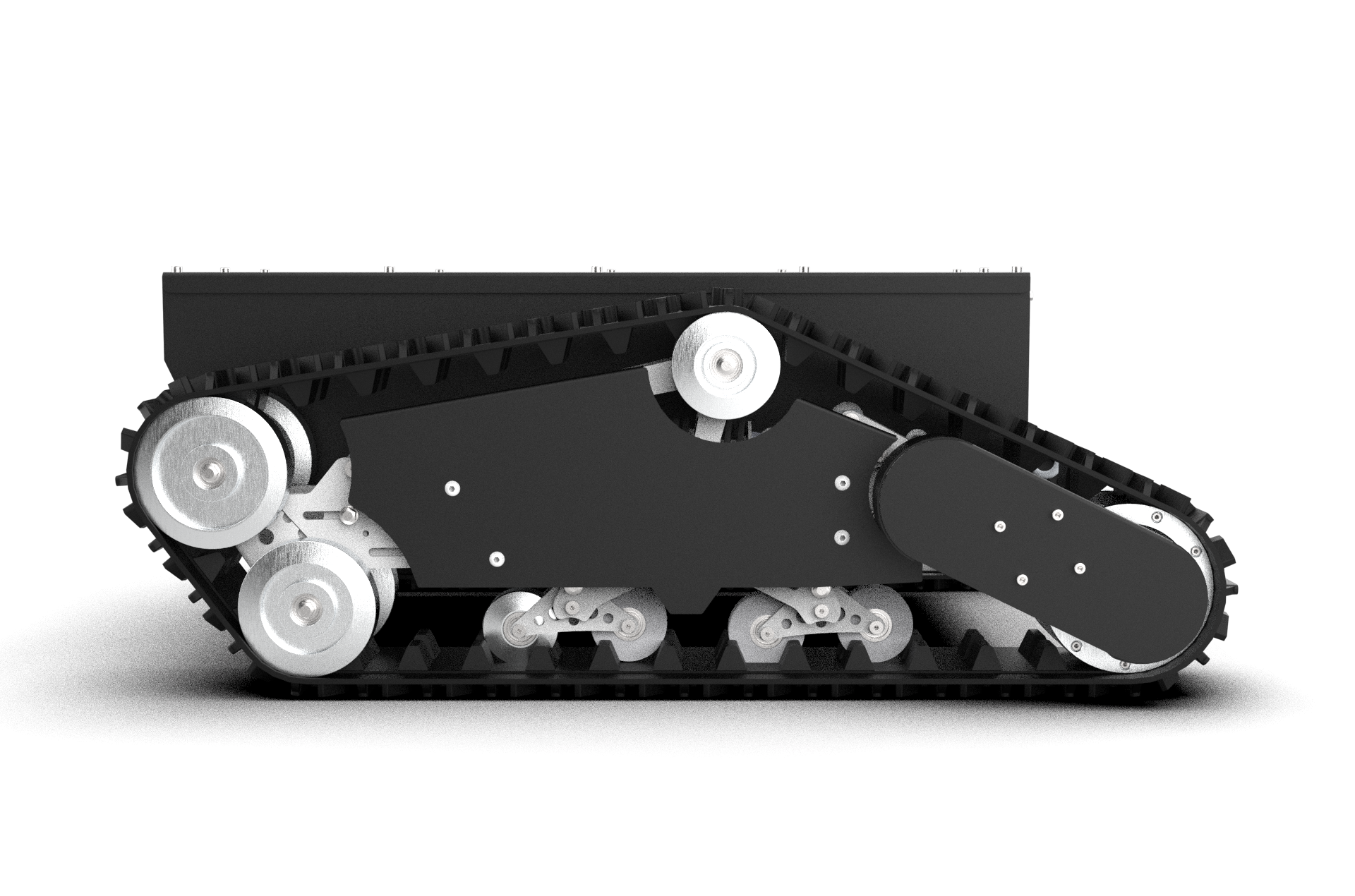

WK-12 medium crawler chassis
WK-1205 surpasses the highest performance chassis in its class, pursues higher passing performance and off-road performance, and can carry equipment exceeding 100KG everywhere. The suspension adopts Christie + Matilda four-wheel balance suspension, which can adapt to heavy-load shock absorbers. The entire vehicle is equipped with 6 shock absorbers combined with a unique impact energy-absorbing design, which can effectively reduce the impact of sandy terrain. Widely used in robot mobility solutions in complex environments.
Inquiry Now





Indicator ITEM ParameterDATA Indicator ITEM ParameterDATA

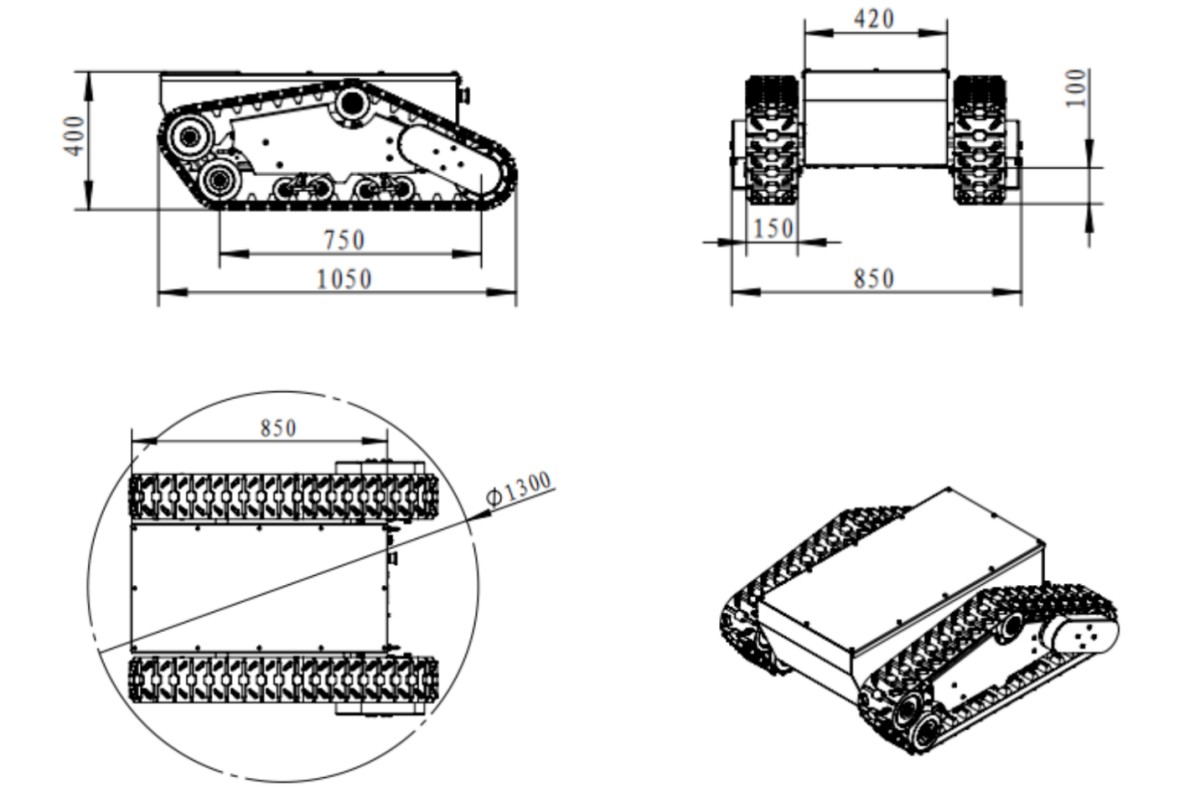

Design size 1050*850*400mm Inner compartment size 320*295*240mm (excluding battery)
Chassis weight 125KG Running speed 0~6KM/H
Track material High-quality rubber embedded with Kevlar fiber Chassis height 115mm
The main material Stainless steel 304/alloy steel plate/galvanized pipe/aluminum Protection level IP54
Shock absorbing system Left and right independent*6 hydraulic damping shock absorbers surface treatment Black spray (matte)
rated power 1000W*2 Design load 120KG
Motor selection 48V DC brushless motor/high precision servo motor Rated torque 60NM
Reduction ratio 1:10 bandwidth 150mm
maximum obstacle 150mm maximum climb ≤ 30°
biggest leap ≤ 300mm Maximum load 120KG
