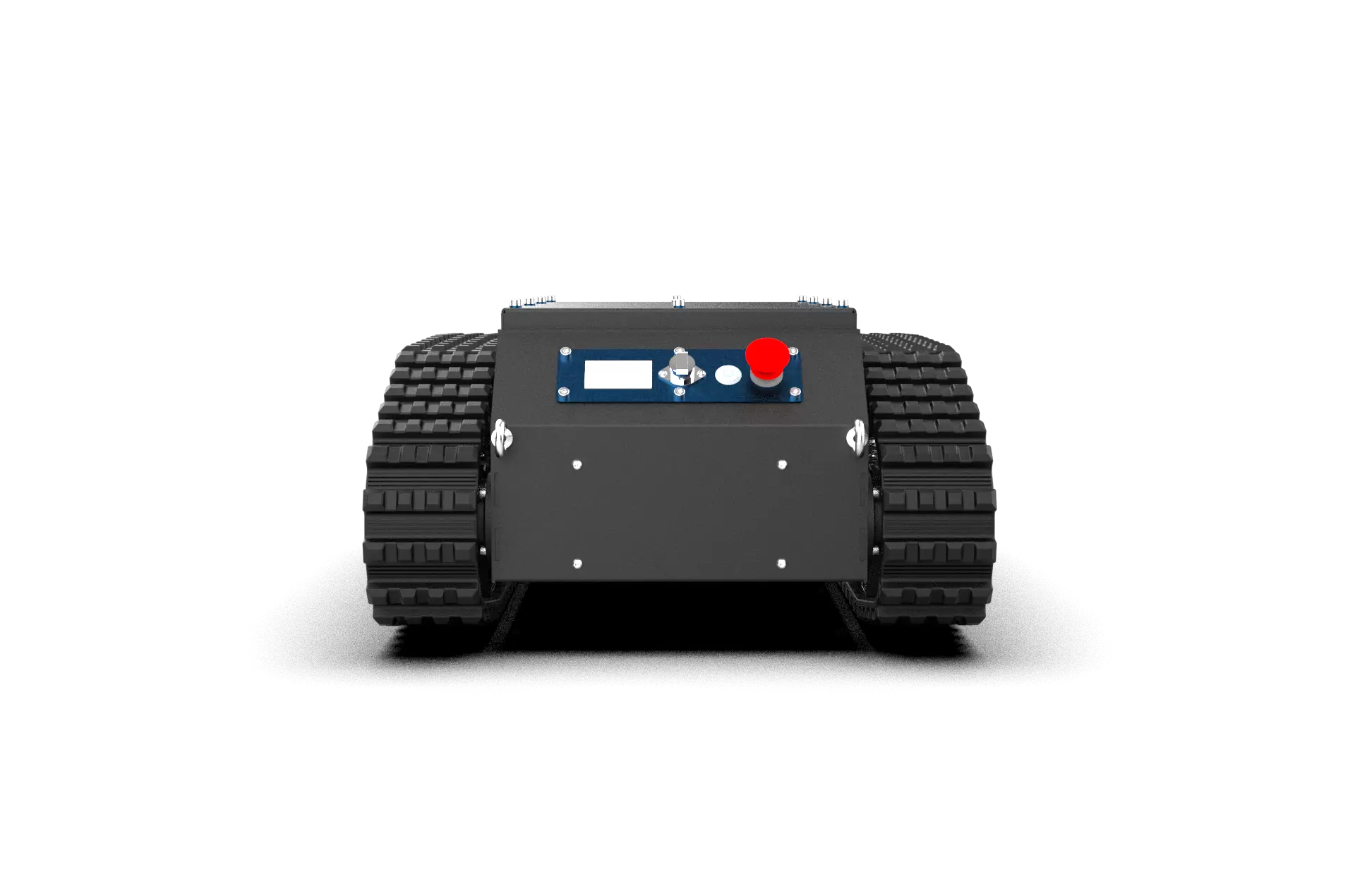

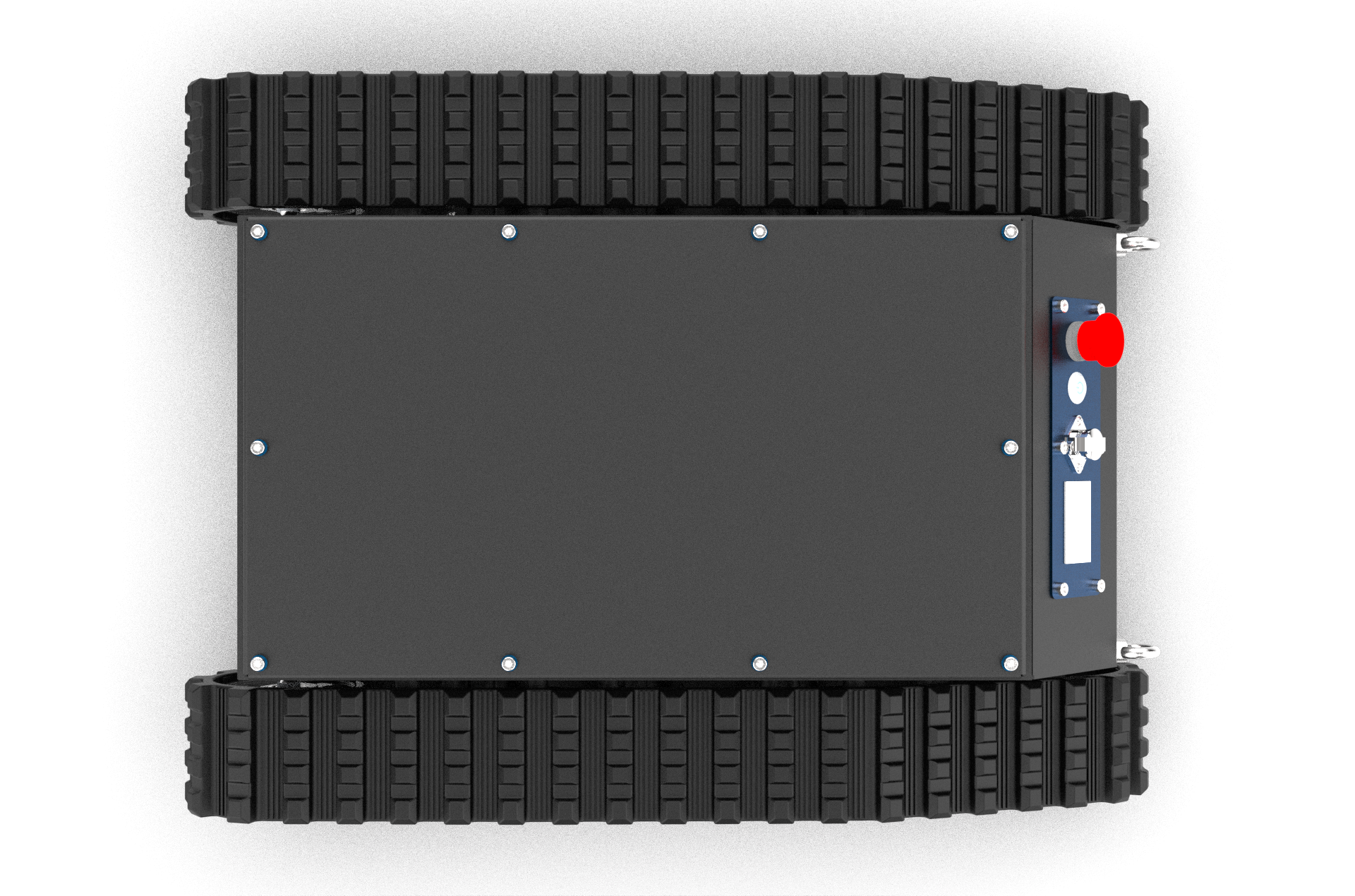

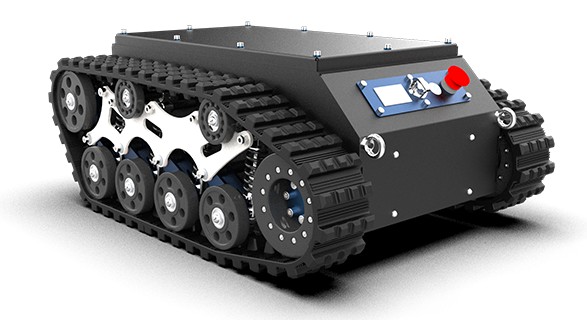

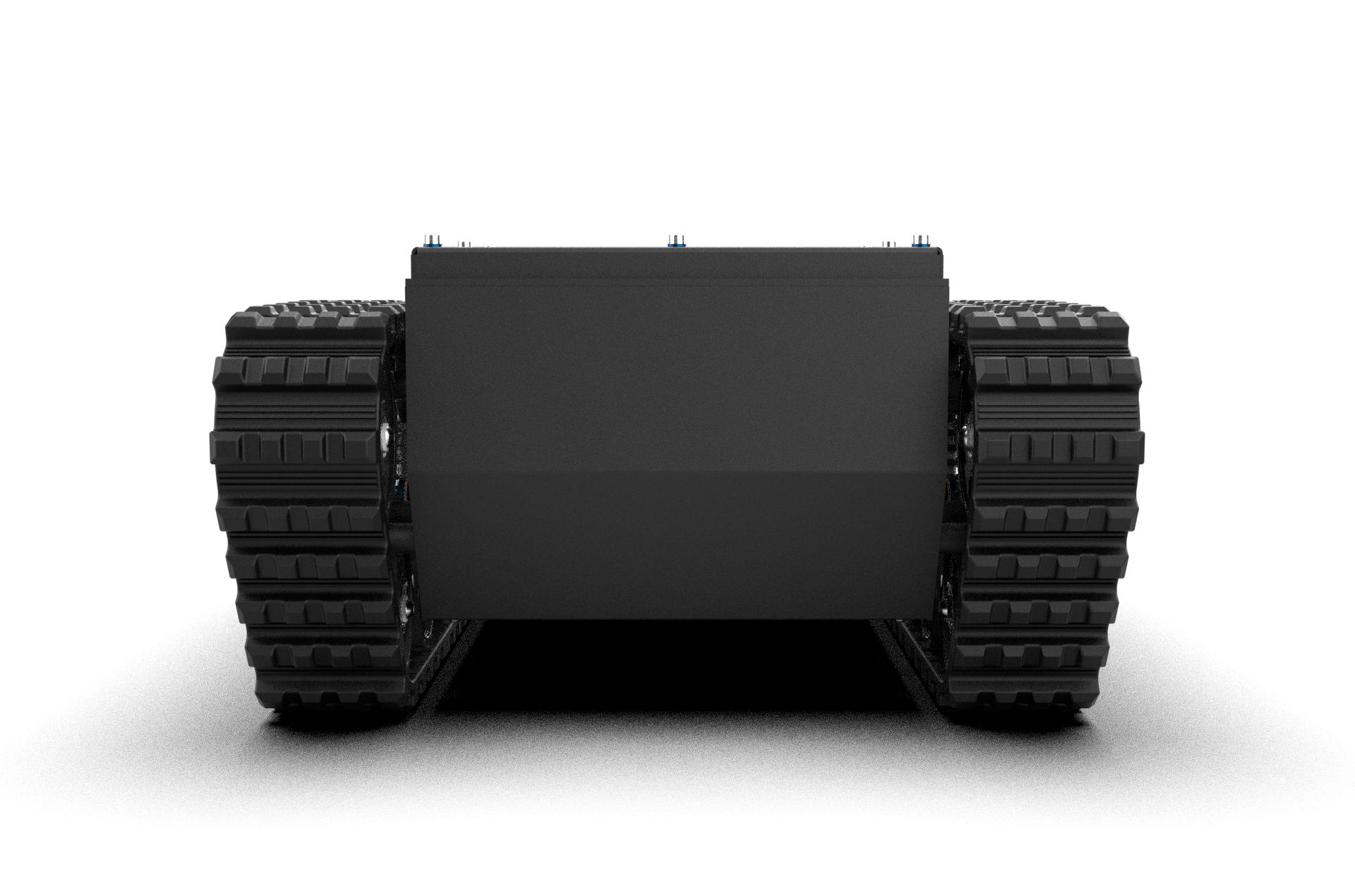

WK-10 Medium Crawler Robot Chassis
WK-10 is a universal crawler robot chassis featuring a Christie-type independent suspension system. Equipped with a high-torque brushless motor internally, the appropriate chassis height and power matching ensure strong passability, low center of gravity, smooth operation, and high transmission efficiency. Suitable for equipment mobility solutions across various industries, it is particularly ideal for mounting cameras and materials or mobile robots requiring stability. Also applicable for special robots in inspection, patrol, exploration, firefighting, etc.
Inquiry Now


SpecificationsParameter DATASpecifications ITEMParameters DATA
Design dimensions770*560*325mm
Internal Dimensions300*290*135mm
Base self-weight80KG

Operating speed

0~5.6KM/H
Track MaterialPremium rubber embedded with Kevlar fibersChassis height75mm
Main body materialStainless Steel 304/Alloy Steel Plate/Galvanized Pipe/AluminumProtection LevelIP54

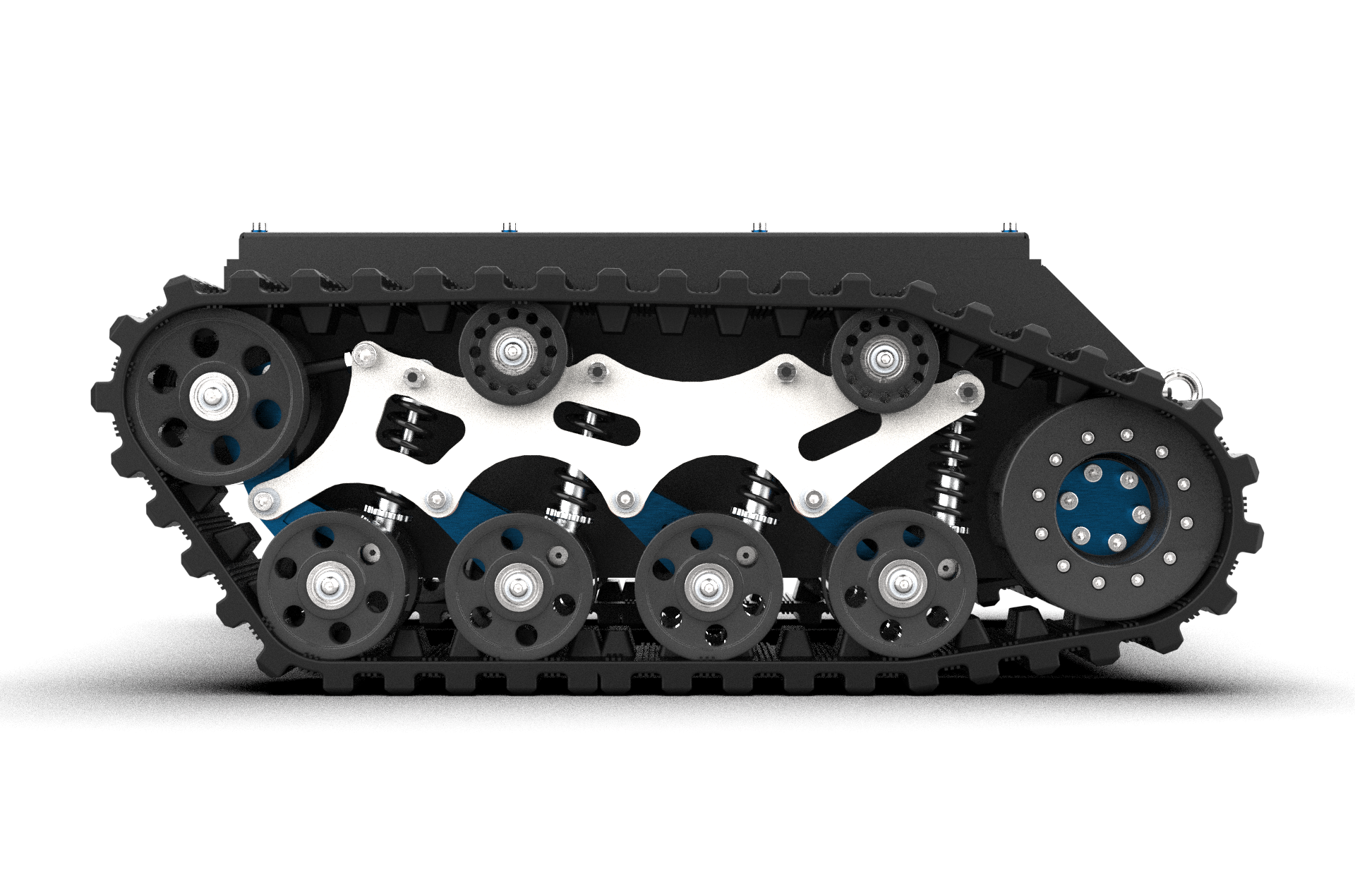

Shock absorption systemLeft and Right Independent *8 Hydraulic Shock AbsorbersSurface TreatmentBlack Spray Paint (Matte)
Rated Power1000W*2Design load capacity120KG
Motor Selection48V DC Brushless MotorRated Torque85NM
Gear Ratio1:15Belt Width150mm
Maximum Obstacle120mm
Maximum Climbing≤30°
