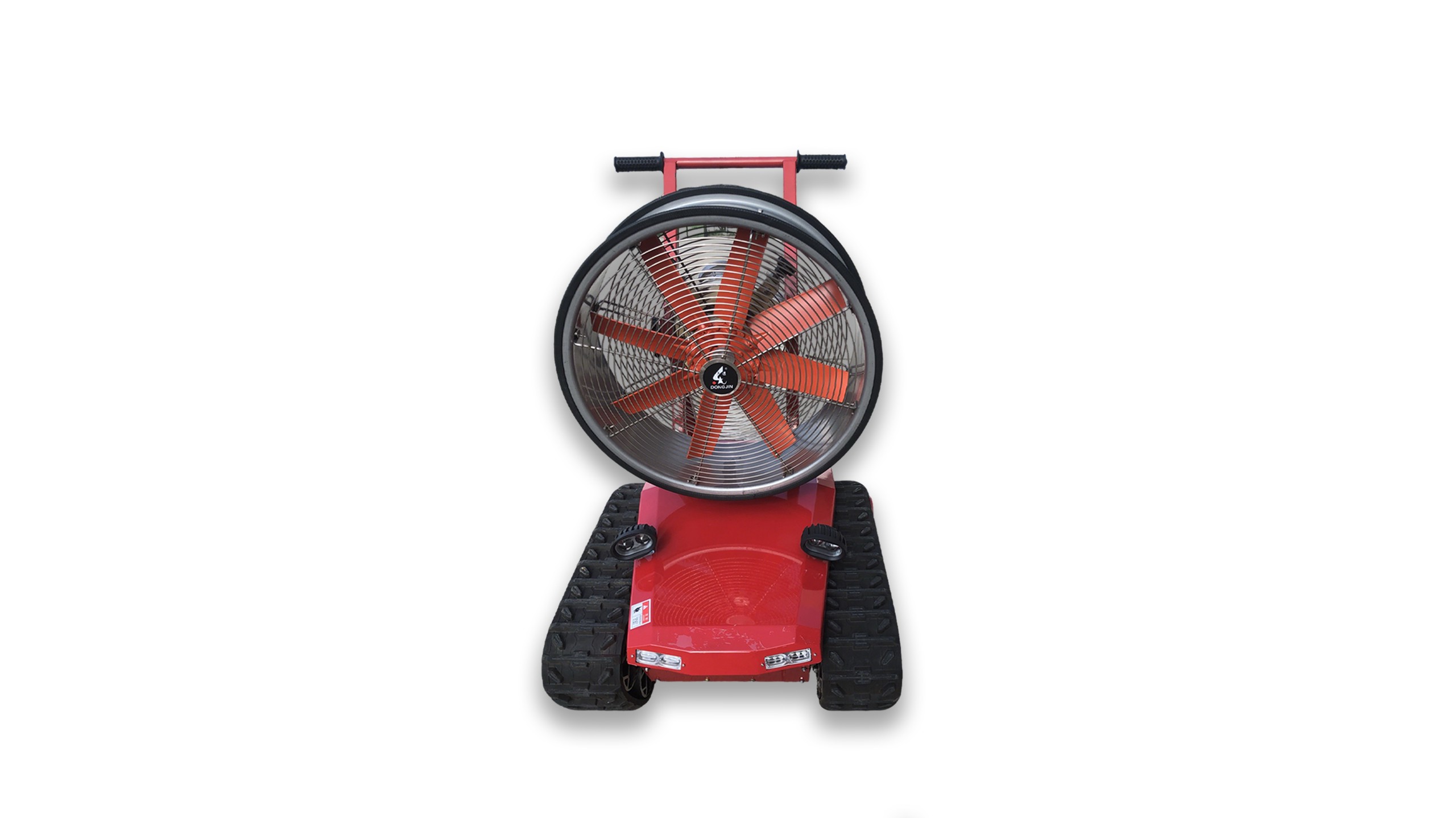

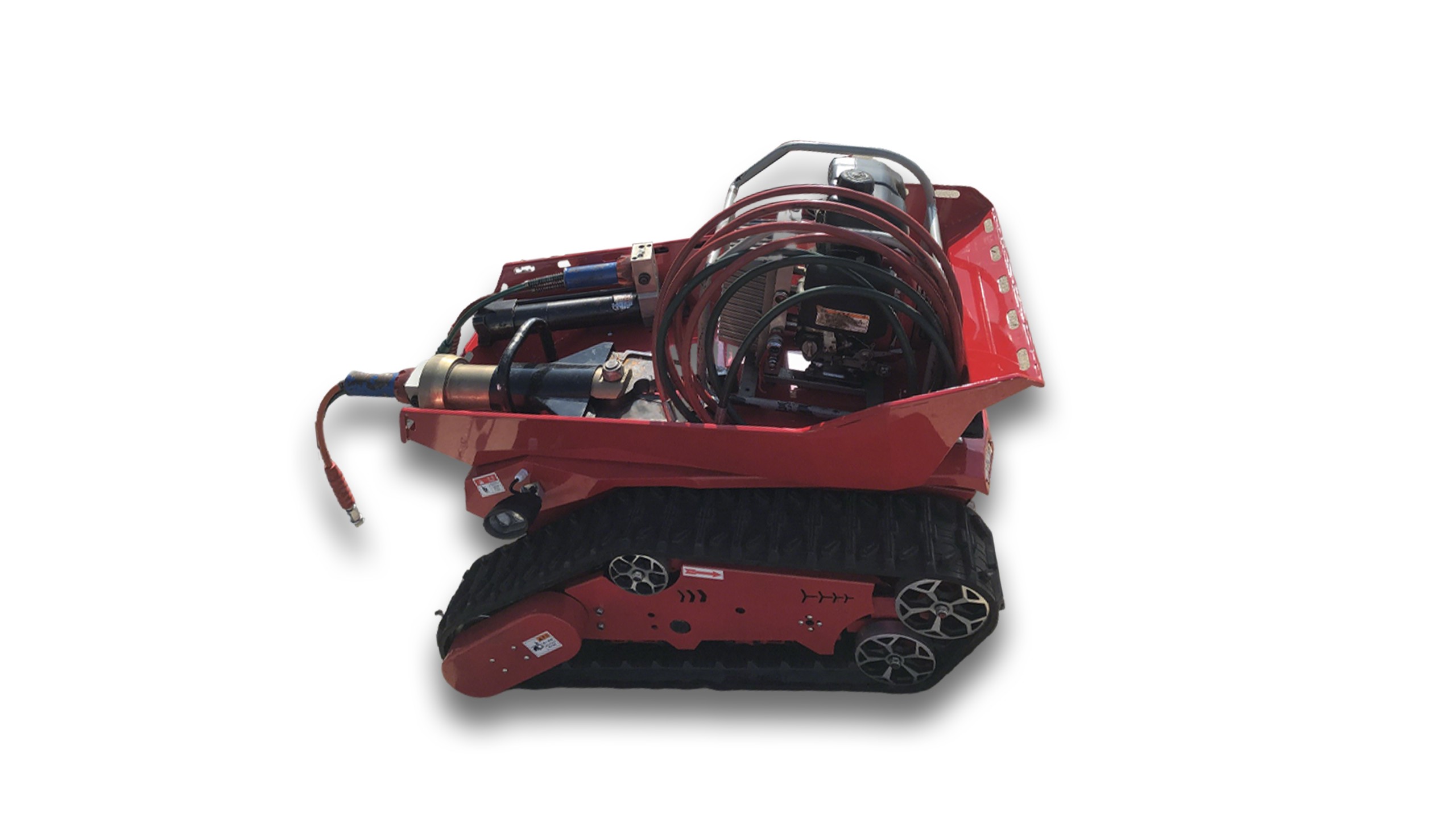

WK-Firefighting Rescue Robot
Firefighting rescue robots eliminate safety hazards and protect lives.
Inquiry Now

Fire rescue robots eliminate safety hazards and protect lives. The base products of firefighting robots are suitable for firefighting operations, whole-vehicle explosion-proof process treatment, precision CNC aluminum alloy swing arms, optional water-cooled heat dissipation systems, and standard smoke-proof connectors, helping you quickly build functional products.

SpecificationsParameter DATAIndicator ITEMParameter DATA
Design dimensions1400*900*520mmInternal Dimensions1100*380*280mm
Base self-weight275KGOperating Speed5.4km/H

Material of shoe straps
Premium rubber embedded with Kevlar fibersChassis height120mm
Main body materialStainless Steel 304/Alloy Steel Plate/Galvanized Pipe/AluminumProtection LevelIP64
Shock absorption systemLeft and right independent *6 hydraulic shock absorbersSurface TreatmentBlack spray paint (matte)
Rated Power2000W*2Design load capacity250KG
Motor Selection48V DC brushless motor/high-precision servo motorRated Torque60N  .M
Gear Ratio1:15Belt Width150mm
Maximum Obstacle180mmMaximum Climbing≤32°
Maximum Crossing400mmMaximum Load Capacity250KG
