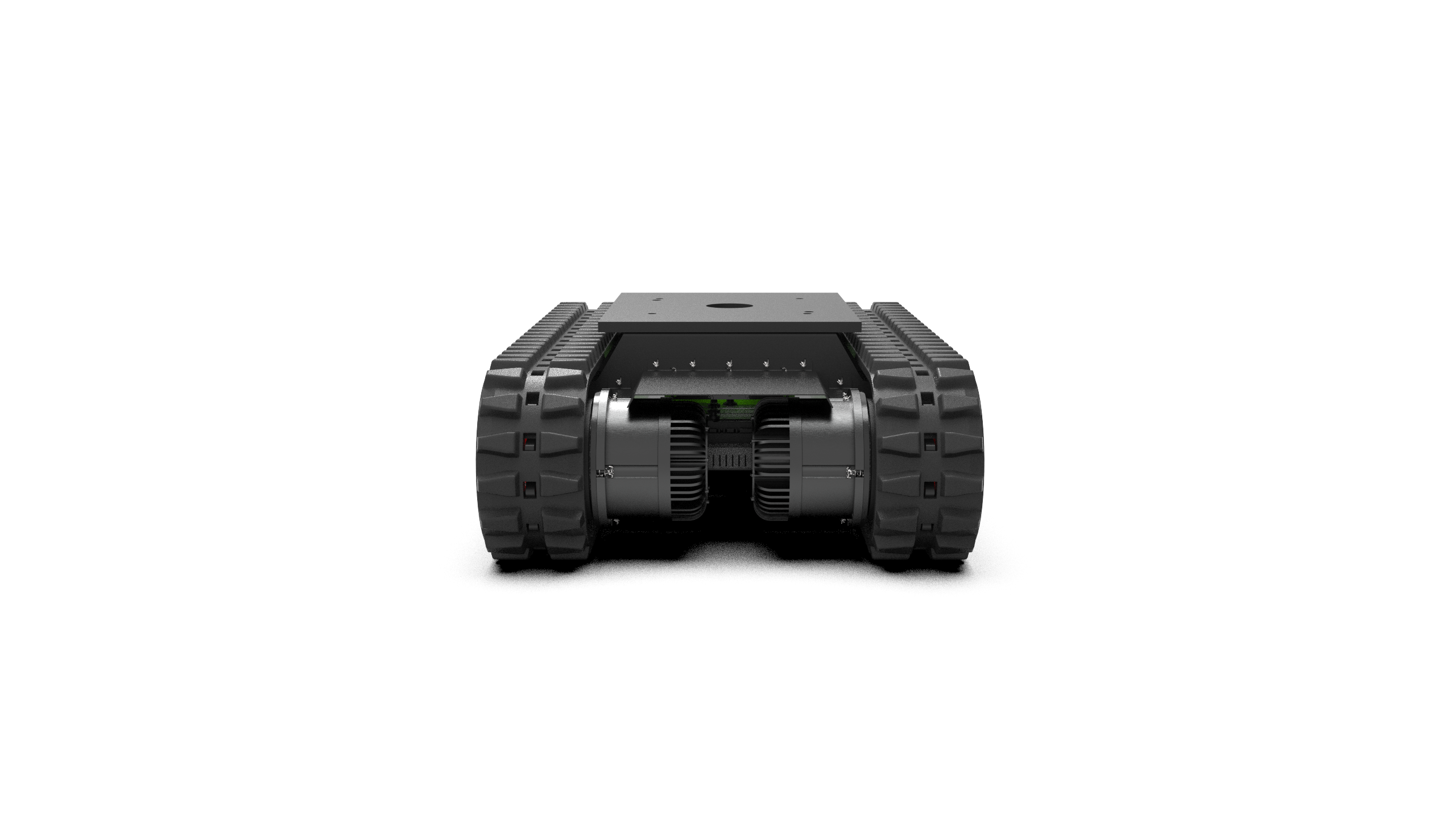

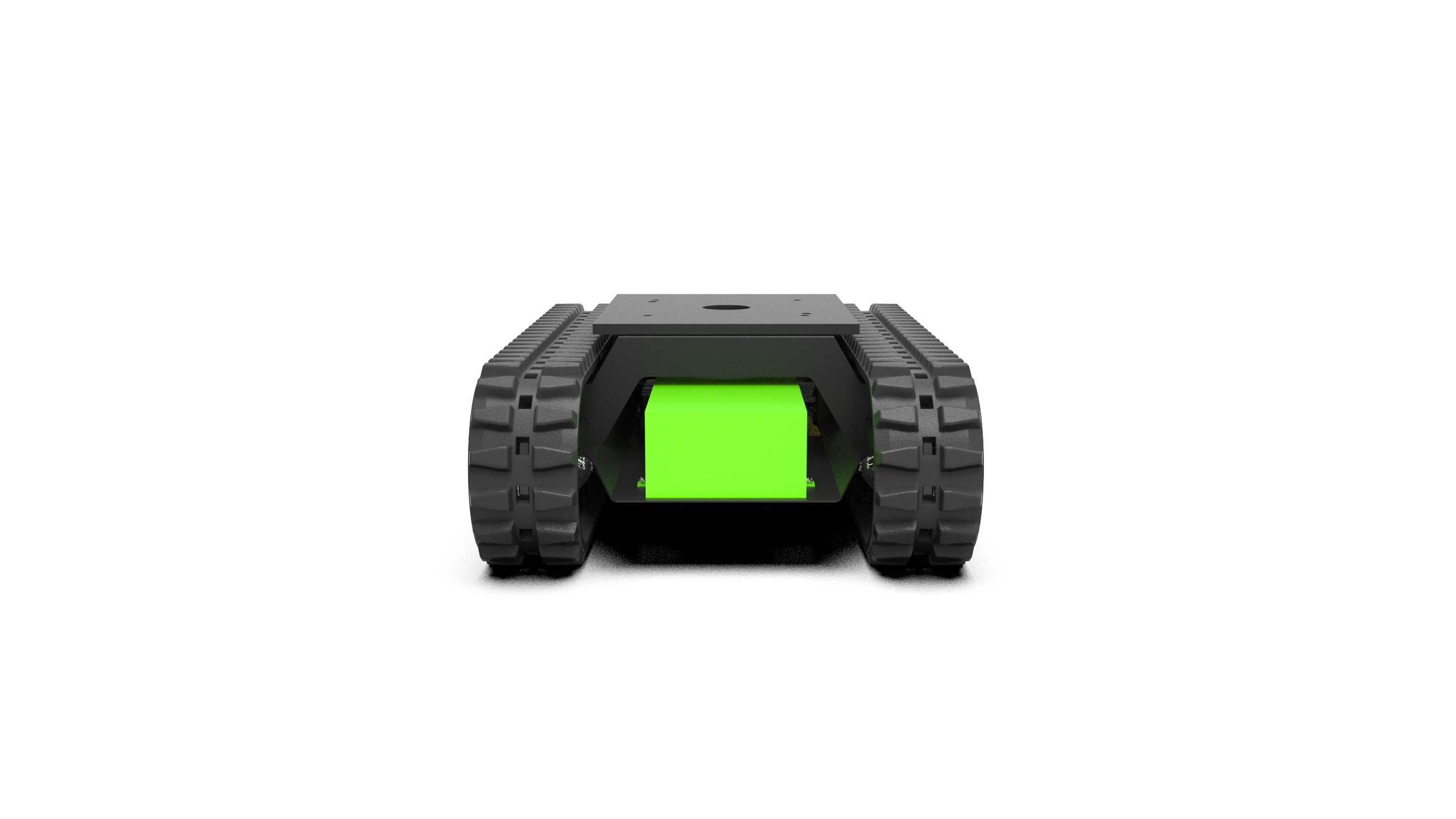

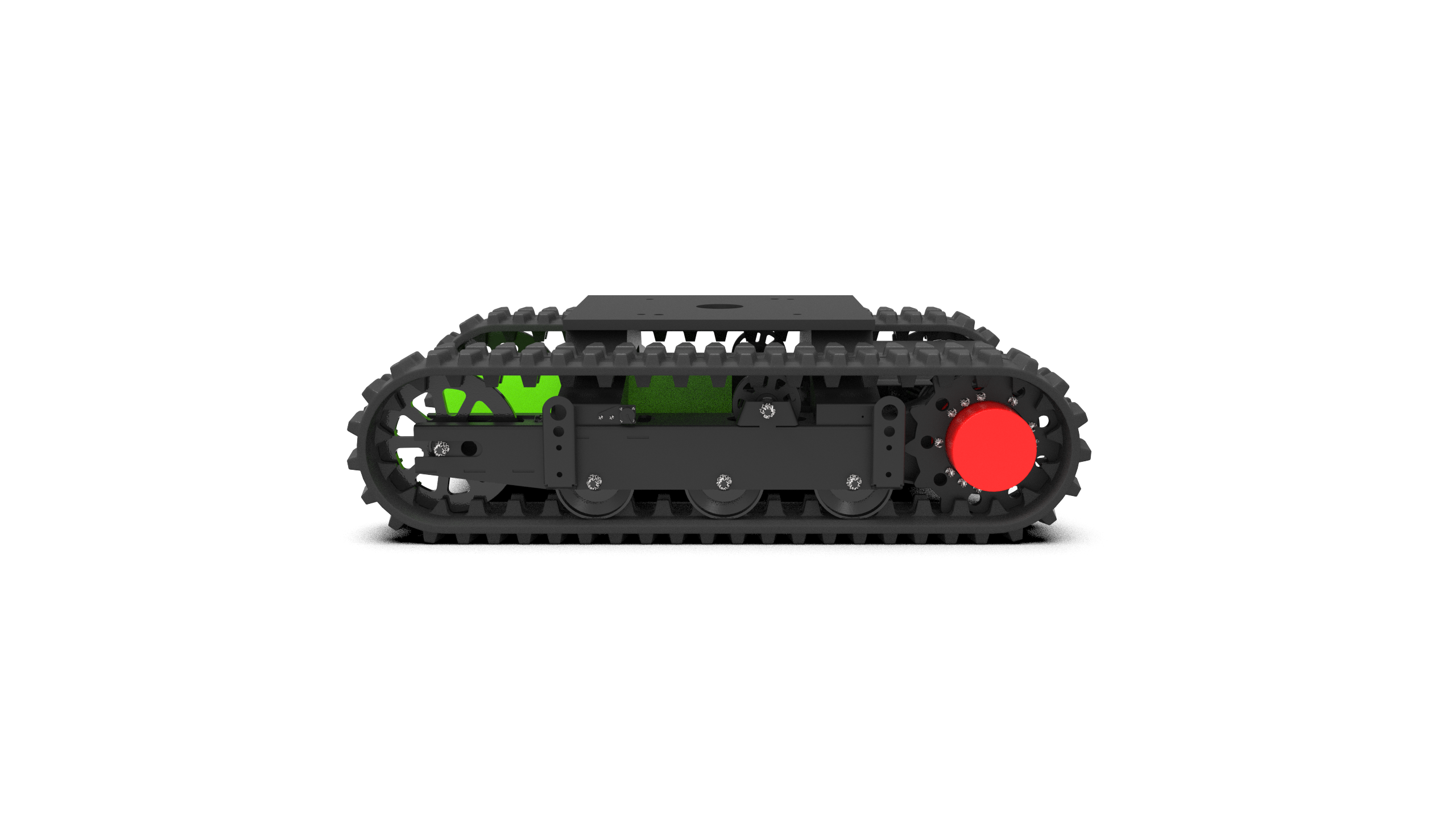

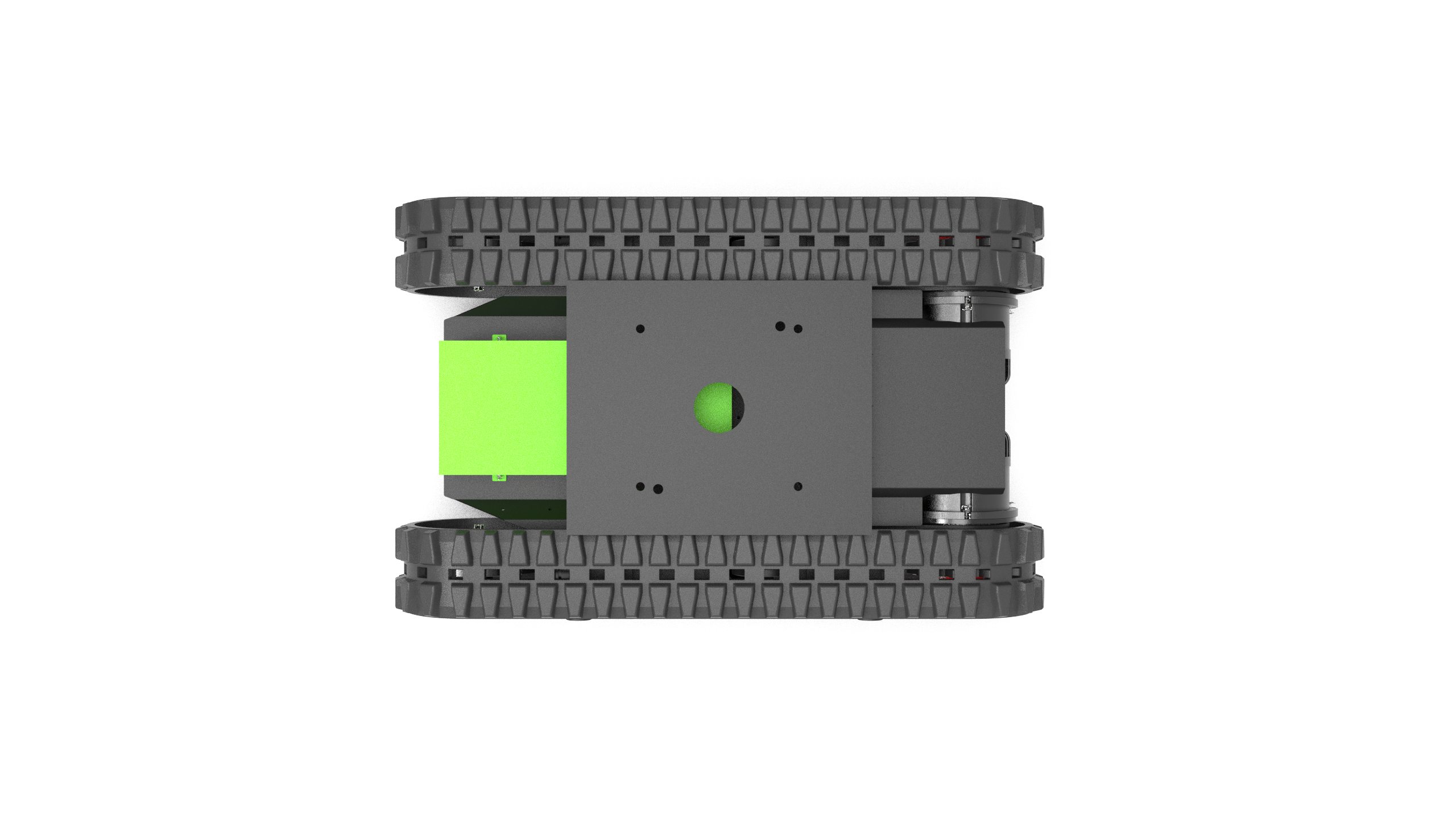

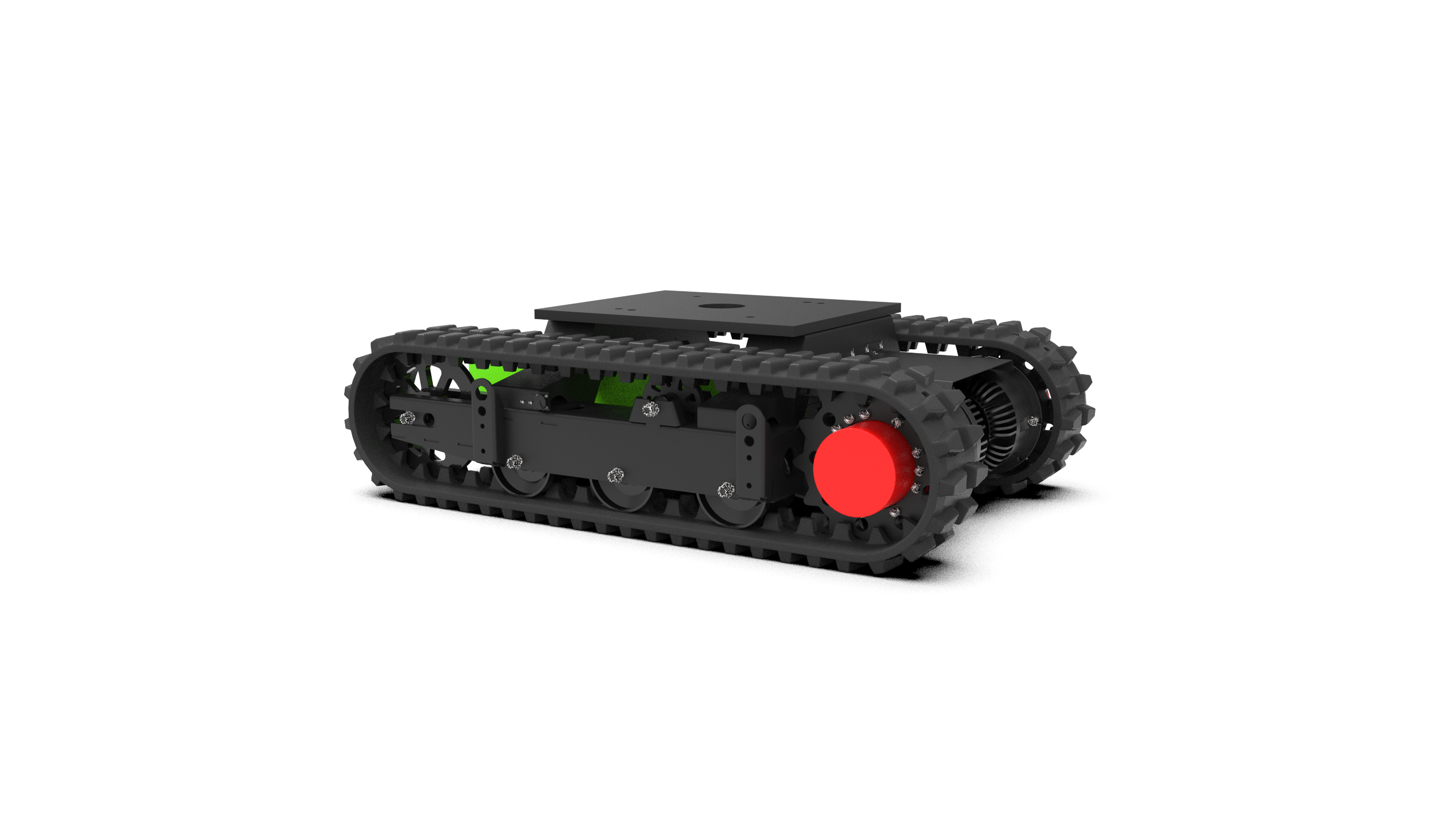

WK-14 Universal Heavy-Duty Tracked Robot Chassis
WK-14 is specifically designed for heavy-load and complex scenarios, featuring dual-motor differential drive, equipped with high-precision encoder DC motors and all-interface hardened actuators, delivering powerful performance and precise control.
Inquiry Now

The WK-14 universal medium-to-large-sized crawler robot mobile chassis adopts dual-motor differential drive, paired with servo motors and drives. The motor comes with a built-in encoder, and the drive communication interface is complete, delivering outstanding driving performance and excellent control capabilities. The chassis features multiple customizable configurations to easily adapt to diverse working conditions. With an industrial-grade crawler design, it offers exceptional road adaptability and requires no maintenance, ensuring high efficiency and worry-free operation. If needed, personalized industrial design is also available. This chassis is suitable for heavy-load scenarios and has been widely applied in unmanned transport, power, welding, and other special robot industries.

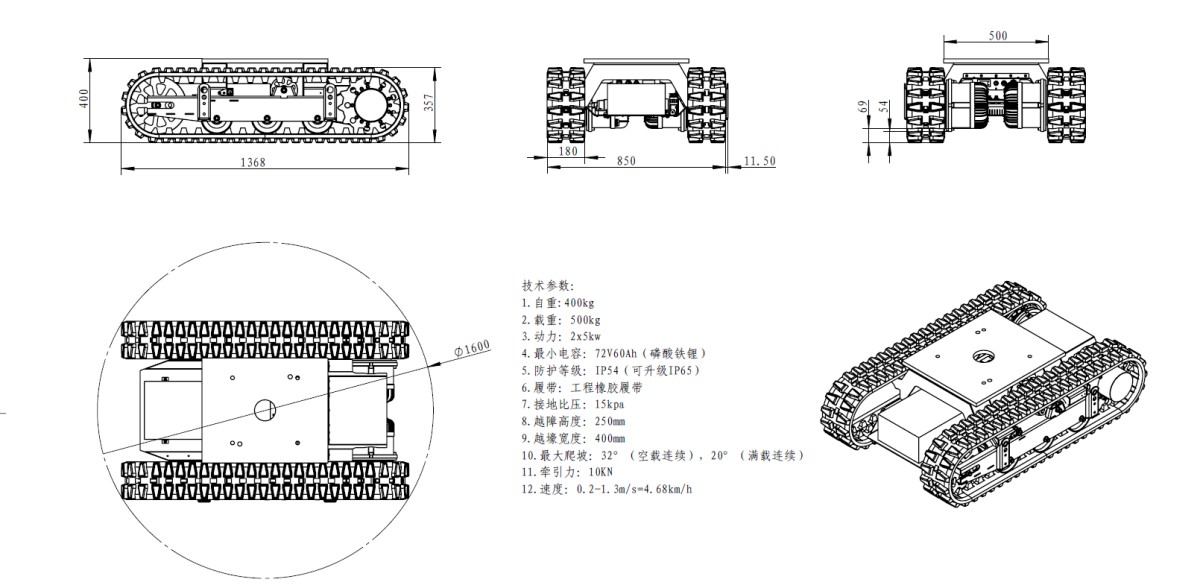

1吨履带底盘 参数

Indicator ITEMParameter DATAIndicator ITEMParameter DATA
Design dimensions1368*850*400mmRated Torque2*28NM
Base self-weight400KGOperating Speed5.4KM/H
Main body material Alloy steel plate Protection LevelIP54
Ground clearance69mmSurface TreatmentElectroplating
Steering ModeDifferential SteeringMaximum Load Capacity500KG
Maximum Obstacle250mmMaximum Crossing100mm
Wheel diameter180mmMotor48V servo motor 2KW*2
Maximum climbing slope
32° (empty continuous), 20° (full load continuous)
